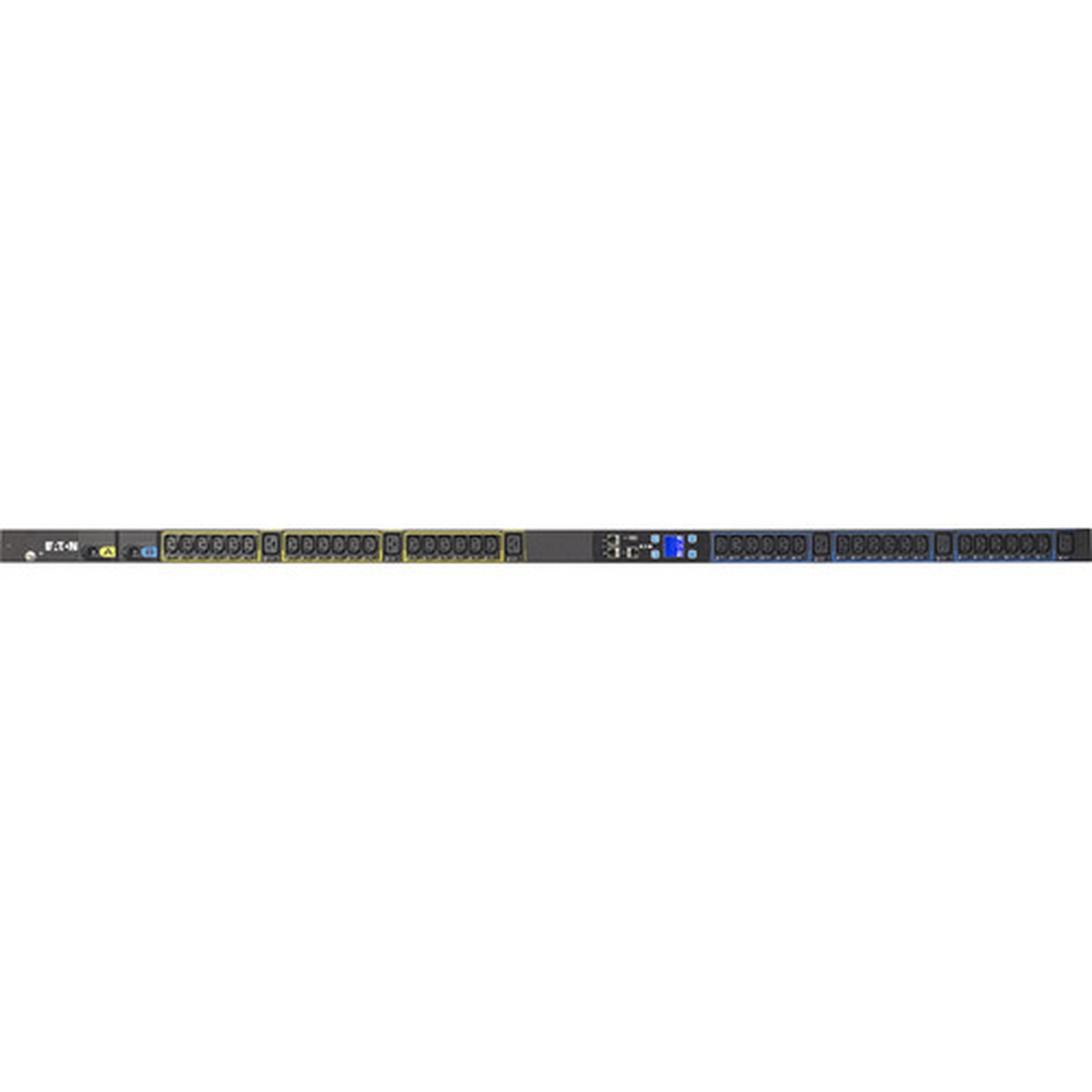

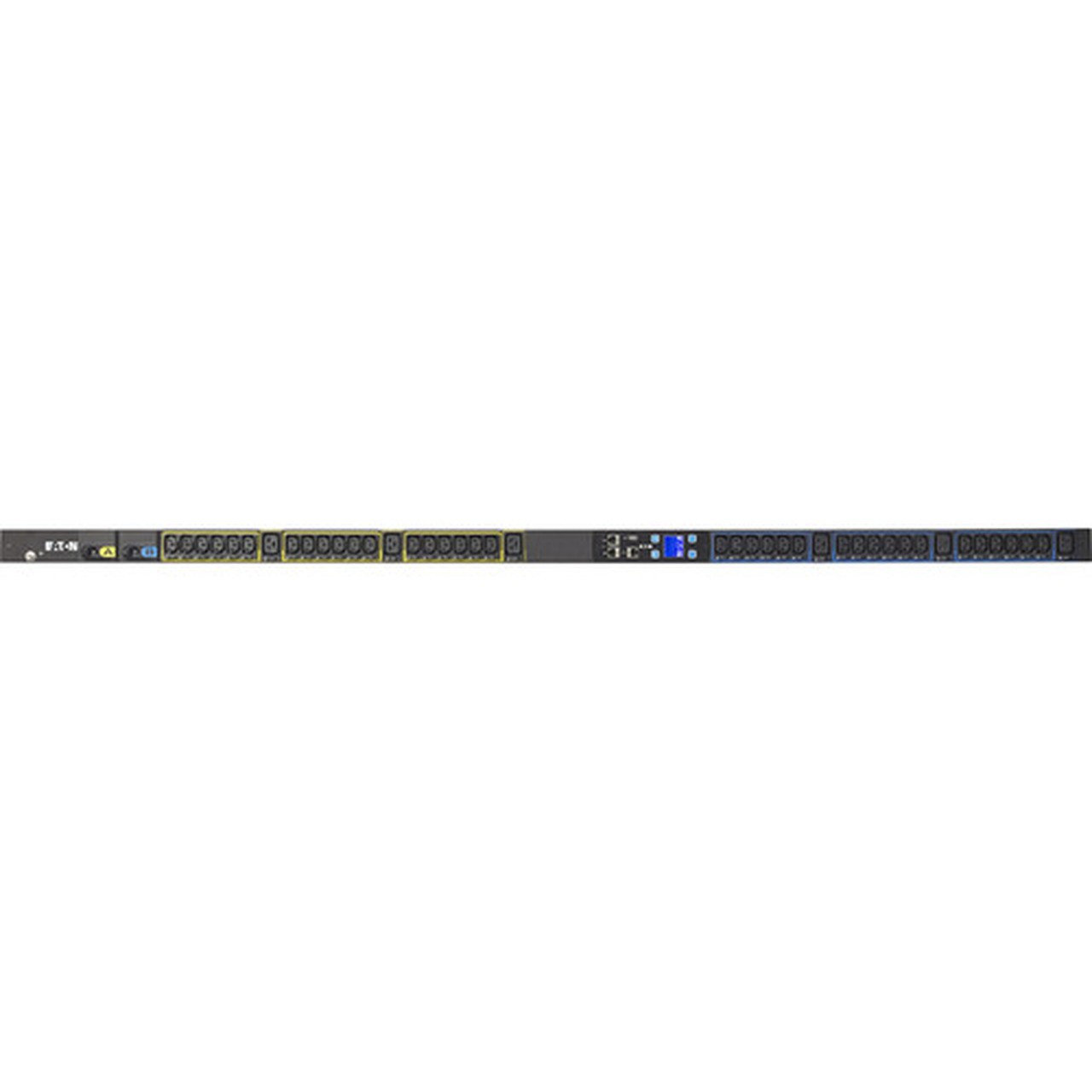

Eaton ePDU 42-Outlets PDU - NEMA L6-30P - 36 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 5.76 kW - Network (RJ-45) - 10 ft Cord - (EMI104-10)

Marketing Information: Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.

• IEC outlet grip plug retention secures plugs in place using standard cables
• Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
• High operating temperature (140F / 60C) for containment or hot network closet environments
• Hot-swap meter for servicability of without removing power to the rack
• +/- 1% billing grade accuracy for high accuracy reporting of energy usage
• Daisy chain of IP addresses allows four devices to share one network connection

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C13,IEC 60320 C19

Receptacle Detail: 36 x IEC 60320 C13,6 x IEC 60320 C19

Input Voltage: 230 V AC

Power Rating (Watt): 5.76 kW

Input Current: 24 A

Network (RJ-45): Yes

Mount Type: Rack-mountable

Rack Height: 38U

Cord Length: 10 ft

Height: 66.50" (1689.10 mm)

Width: 2.05" (52.07 mm)

Depth: 2.10" (53.34 mm)

Weight (Approximate): 7.26 kg

Country of Origin: China

Limited Warranty: 3 Year
