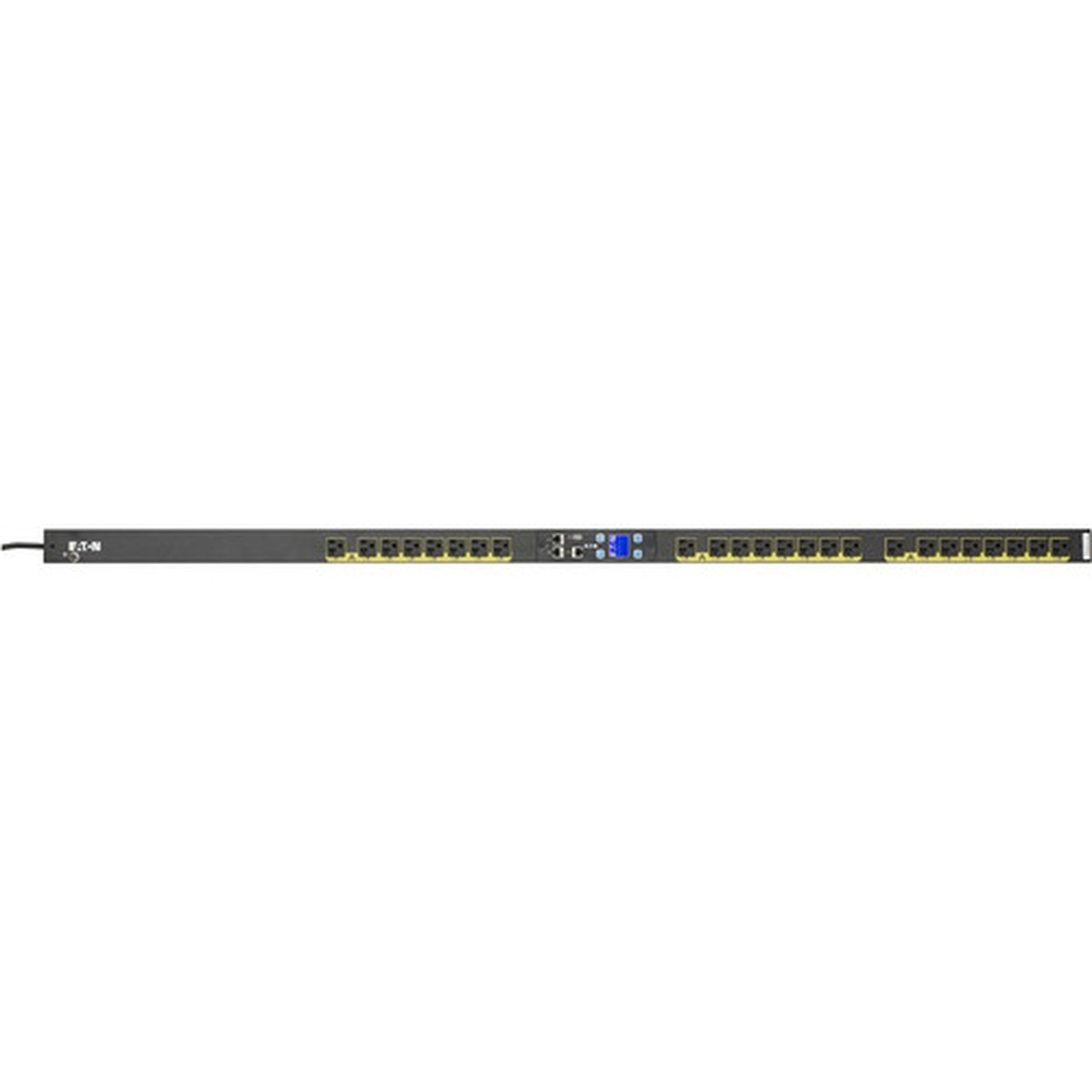

Eaton ePDU G3 Managed 36U-C IN: L5-20P 16A 1P OUT: 24x5-20R - NEMA L5-20P - 24 x NEMA 5-20R - 120 V AC - 1.92 kW - Network (RJ-45) - - (EMA114-10)

(No reviews) Write a Review
$2,514.92
$2,514.92
$1,571.20
(You save $943.72 )
SKU: EMA114-10
UPC: 743172078919
Availability: In Canada. Usually ship same day.
Weight: 15.60 LBS

Pre-order! 🗨️📞

    Marketing Information: Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
    • Outlet switching for on, off and reboot control to reduce management costs
    • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
    • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
    • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
    • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
    • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug

    Plug/Connector Type: NEMA L5-20P
    Plug/Connector Detail: 1 x NEMA L5-20P
    Receptacle Type: NEMA 5-20R
    Receptacle Detail: 24 x NEMA 5-20R
    Input Voltage: 120 V AC
    Output Voltage: 120 V AC
    Power Rating (Watt): 1.92 kW
    Input Current: 16 A
    Network (RJ-45): Yes
    Mounting Orientation: Vertical
    Rack Height: 36U
    Height: 66.50" (1689.10 mm)
    Width: 2.05" (52.07 mm)
    Depth: 2.09" (53.09 mm)
    Package Contents:
    • ePDU 24-Outlets PDU
    • SPK012 Installation
    • SPK013 Network

    Country of Origin: China
    Limited Warranty: 3 Year

[custom-specifications]

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: EMA114-10
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Line: ePDU
Product Name: ePDU 24-Outlets PDU
Product Type: PDU
Technical Information
Plug/Connector Type: NEMA L5-20P
Plug/Connector Detail: 1 x NEMA L5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1.92 kW
Input Current: 16 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Rack Height: 36U
Height: 66.50" (1689.10 mm)
Width: 2.05" (52.07 mm)
Depth: 2.09" (53.09 mm)
Miscellaneous
Package Contents:
  • ePDU 24-Outlets PDU
  • SPK012 Installation
  • SPK013 Network

Country of Origin: China
Warranty
Limited Warranty: 3 Year
