Eaton G4 24-Outlets PDU - Managed - NEMA L6-30P - 12 x IEC 60320 C13, 12 x IEC 60320 C39 - 230 V AC - Network (RJ-45) - 10 ft Cord - - (EVMAL630A)

Marketing Information:

Single-Phase Managed PDU Ideal for Data Center Managers with Large-Scale Distributed IT

The EVMAL630A G4 Rack PDU is ideal for streamlining PDU procurement and deployment within a 42U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMAL630A delivers versatile, enterprise-quality power distribution.

Market-Leading Cybersecurity Ensures Your Data Is Kept Safe

Chain-of-trust encryption and secure firmware boot capability prevent the EVMAL630A PDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMAL630A is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.

Remote Management Saves Time and Money

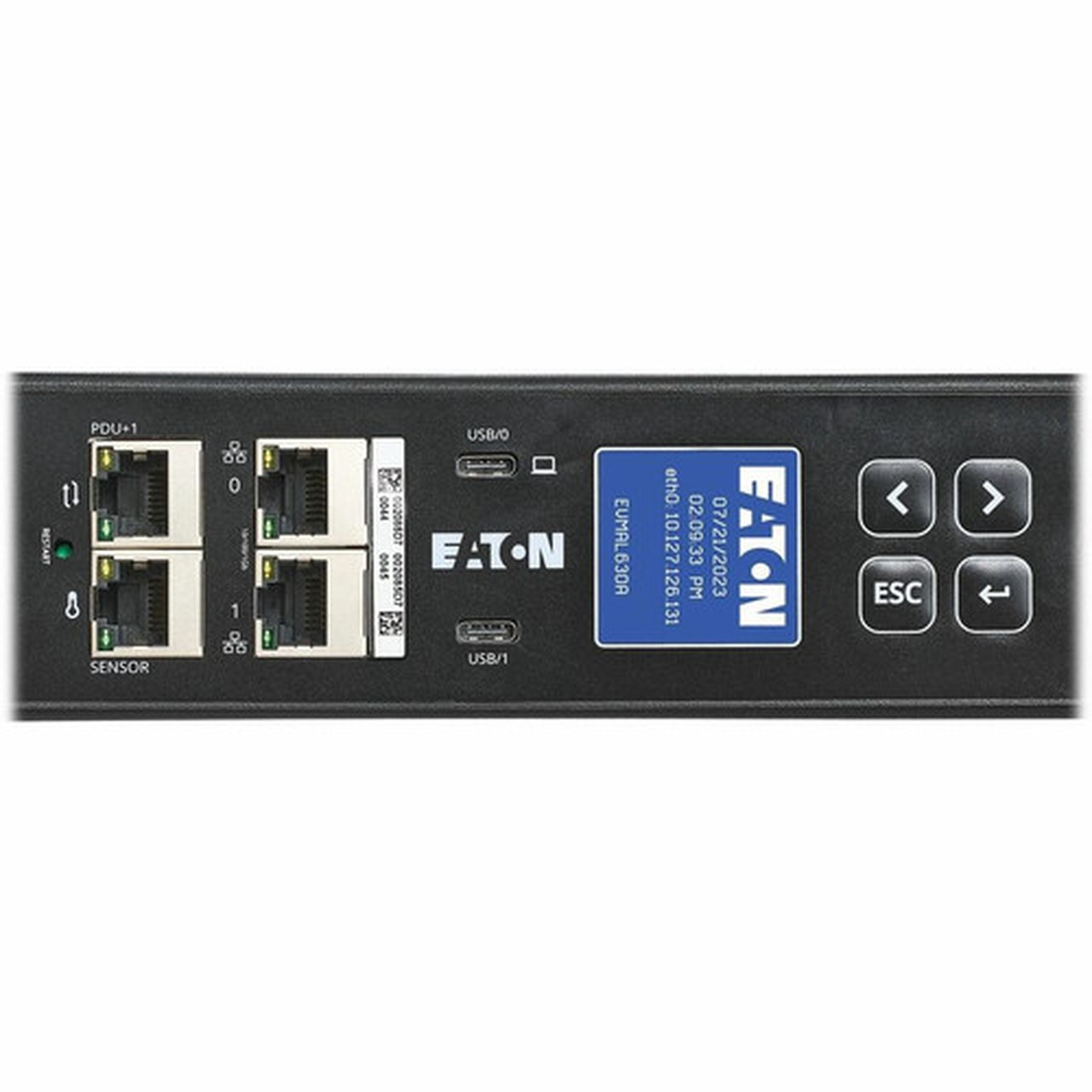

The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMAL630A is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections.

24 Outlets Give You Plenty of Power Options

The EVMAL630A features 12 C13 outlets, which accept C14 connectors, and 12 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install.

Outlet-Level Control Boosts Performance and Efficiency

All 24 outlets provide metering, monitoring and switching for granular power data and precision control of power delivery. The outlets are evenly distributed into six color-coded load banks, each with its own circuit breaker, to improve load balancing and organize connections in a crowded rack. You can get more uptime by disabling a load bank before its connected equipment overloads the system, rather than disabling the entire PDU and shutting down all equipment.

Convenient Box-to-Rack Installation

This G4 UPDU features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. Choose from a collection of 17 power cables and 15 plug options (all power cables sold separately). Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMAL630A models with each model maintaining its own individual IP address from a single network connection point.

PDU Type: Managed

Phase: Single Phase

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C13,IEC 60320 C39

Receptacle Detail: 12 x IEC 60320 C13,12 x IEC 60320 C39

Input Voltage: 230 V AC

Power Rating (Watt): 5.80 kW

Input Current: 32 A

Network (RJ-45): Yes

Mount Type: Rack-mountable

Form Factor: Vertical

Rack Height: 0U

Cord Length: 10 ft

Height: 68.10" (1729.74 mm)

Width: 2.09" (53.09 mm)

Depth: 2.05" (52.07 mm)

Weight (Approximate): 5.53 kg

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 140°F (60°C)

Limited Warranty: 3 Year
