- The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
- The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 300 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort

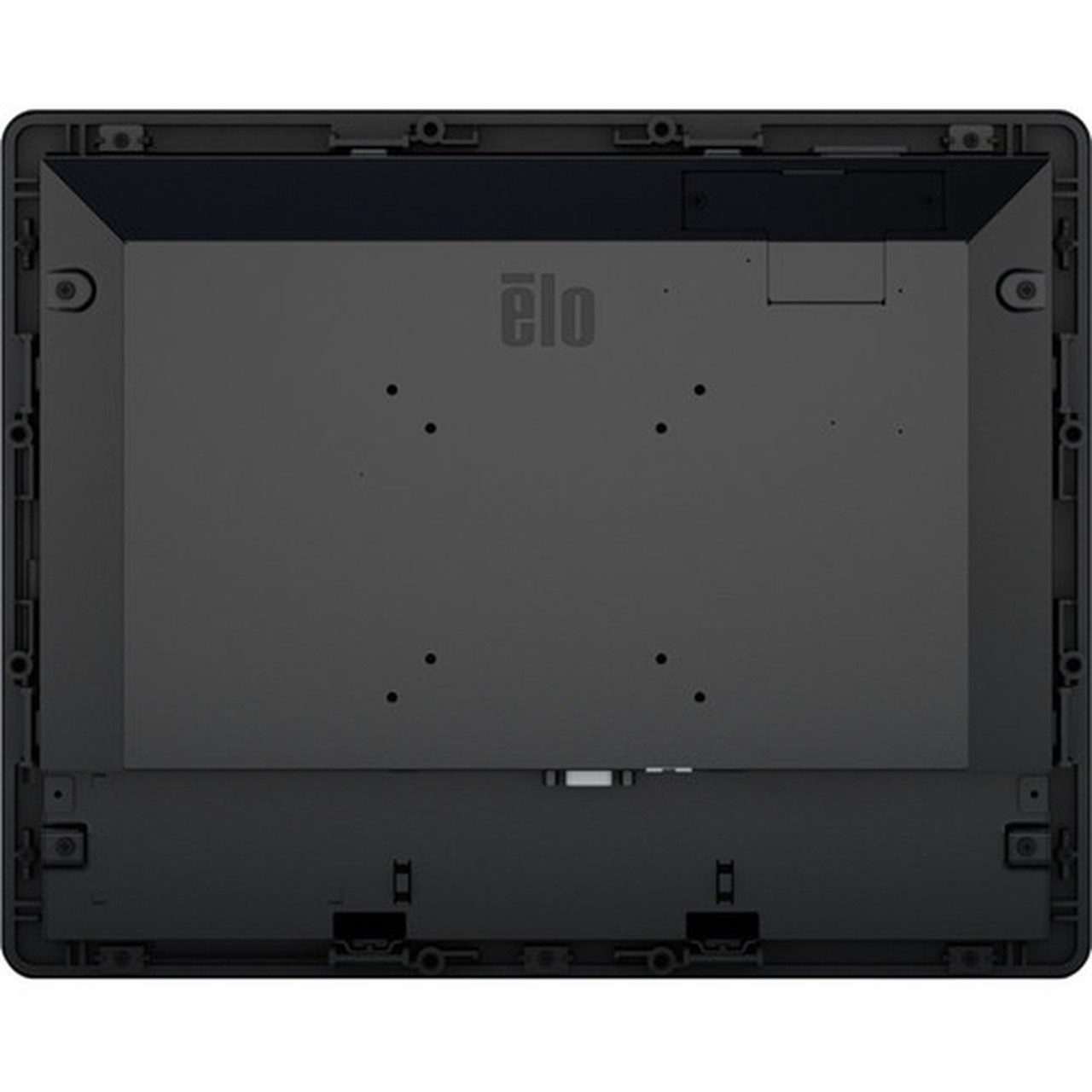

- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

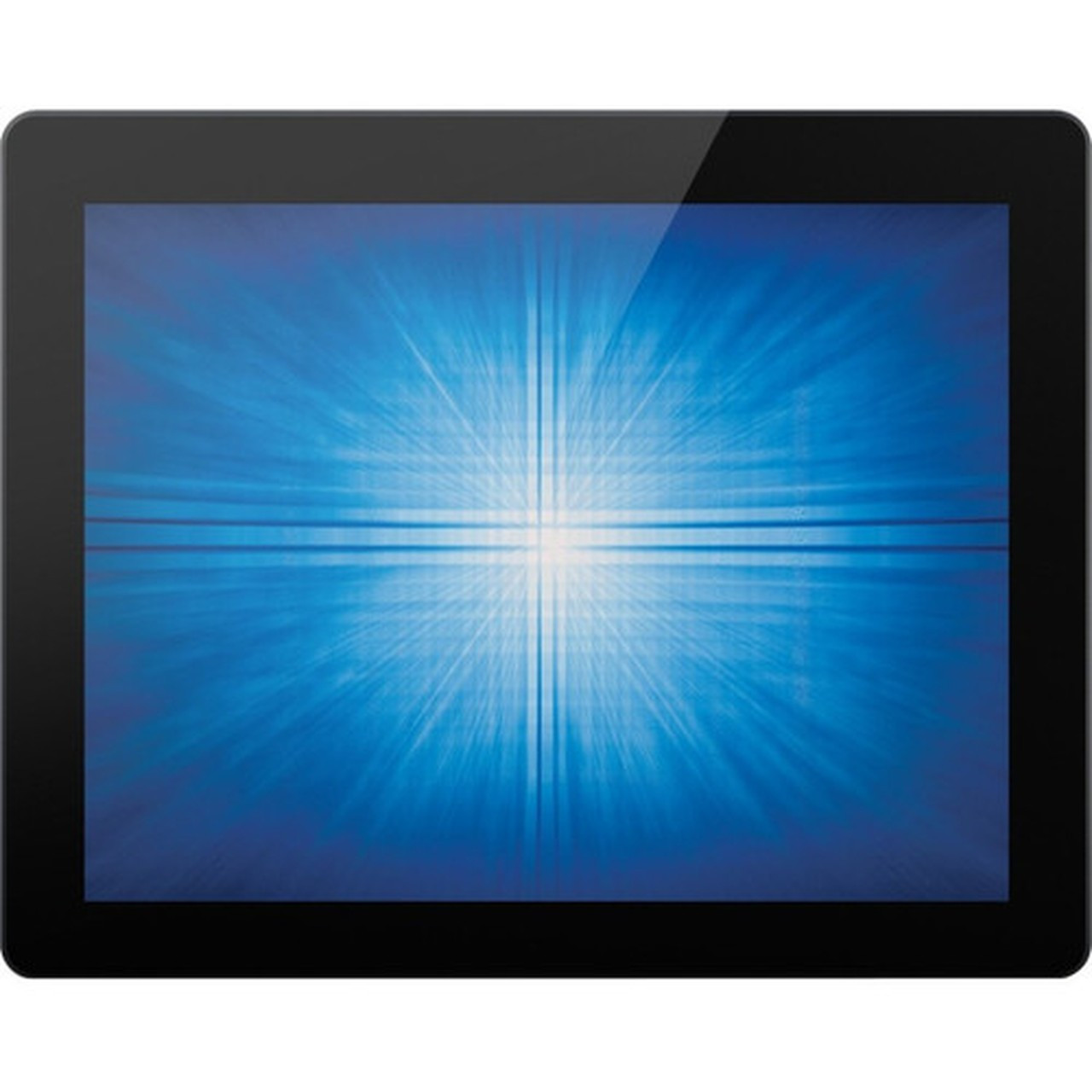

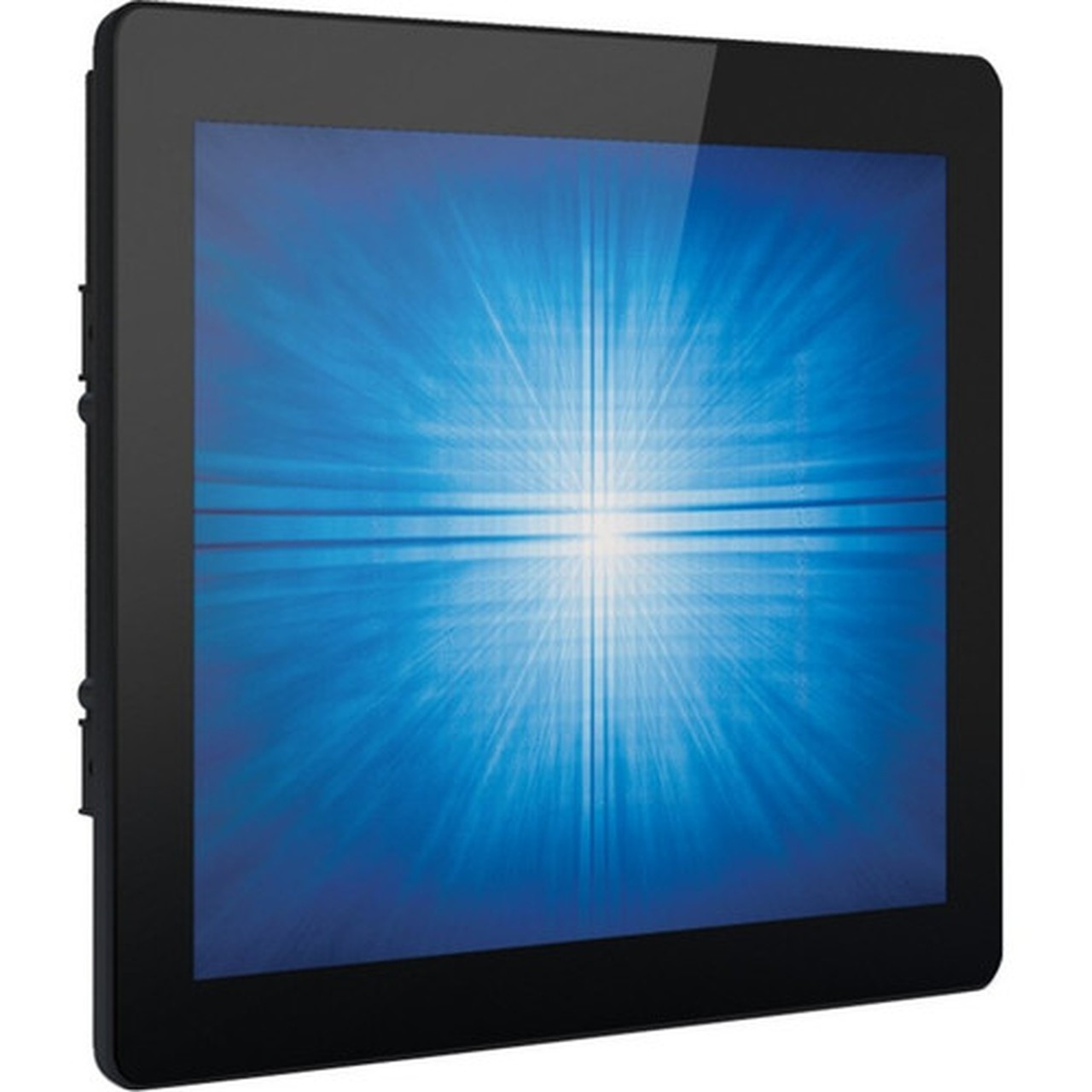

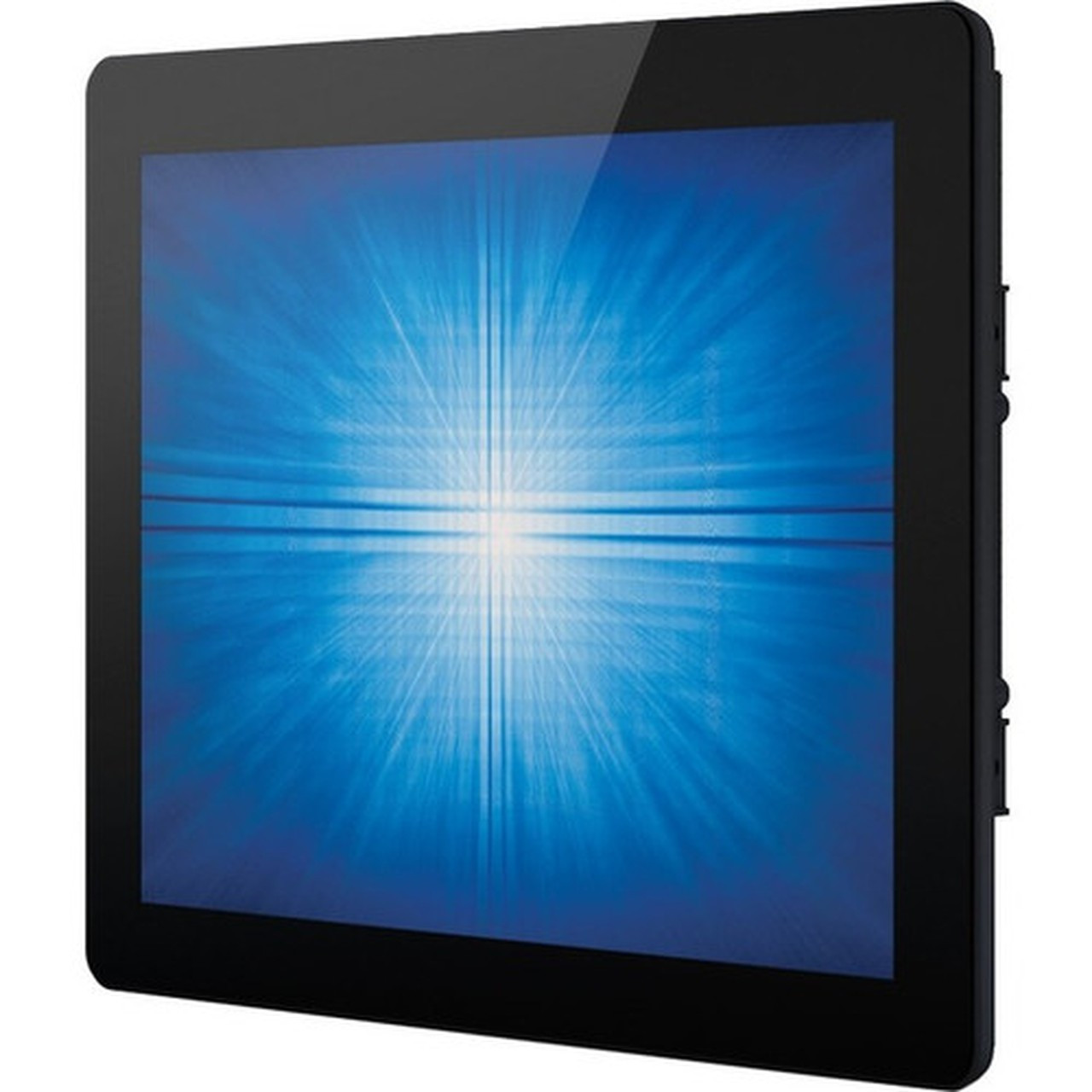

Marketing Information: The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Screen Size Class: 15"Viewable Screen Size: 15"Screen Mode: XGAPanel Technology: Thin Film Transistor (TFT)Response Time: 16 msAspect Ratio: 4:3Horizontal Viewing Angle: 160°Vertical Viewing Angle: 150°Mount Type: - Rack-mountable
- Front Mount
Backlight Technology: LEDFeatures: - On-screen Display (OSD)
- Anti-glare
Curved Screen: NoMaximum Resolution: 1024 x 768Color Supported: 16.2 Million ColorsContrast Ratio: 700:1Brightness: 300 cd/m²Touchscreen Type: IntelliTouch Surface WaveHDMI: YesUSB: YesVGA: YesDisplayPort: YesOperating Power Consumption: 14 WProduct Color: BlackVESA Mount Compatible: YesVESA Mount Standard: 100 x 100Height: 10.41" (264.41 mm)Width: 13.24" (336.30 mm)Depth: 1.65" (41.91 mm)Weight (Approximate): 2.90 kgPackage Contents: - 1590L 15" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
Environmentally Friendly: YesEnvironmental Certification: TAA Compliant: NoLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E326738
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1590L
Product Name: 1590L 15" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical InformationScreen Size Class: 15"
Viewable Screen Size: 15"
Screen Mode: XGA
Panel Technology: Thin Film Transistor (TFT)
Response Time: 16 ms
Aspect Ratio: 4:3
Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 150°
Mount Type:
- Rack-mountable
- Front Mount
Backlight Technology: LED
Features:
- On-screen Display (OSD)
- Anti-glare
Curved Screen: No
VideoMaximum Resolution: 1024 x 768
Color Supported: 16.2 Million Colors
Contrast Ratio: 700:1
Brightness: 300 cd/m²
Touchscreen InformationTouchscreen Type: IntelliTouch Surface Wave
Interfaces/PortsHDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Power DescriptionOperating Power Consumption: 14 W
Physical CharacteristicsProduct Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 10.41" (264.41 mm)
Width: 13.24" (336.30 mm)

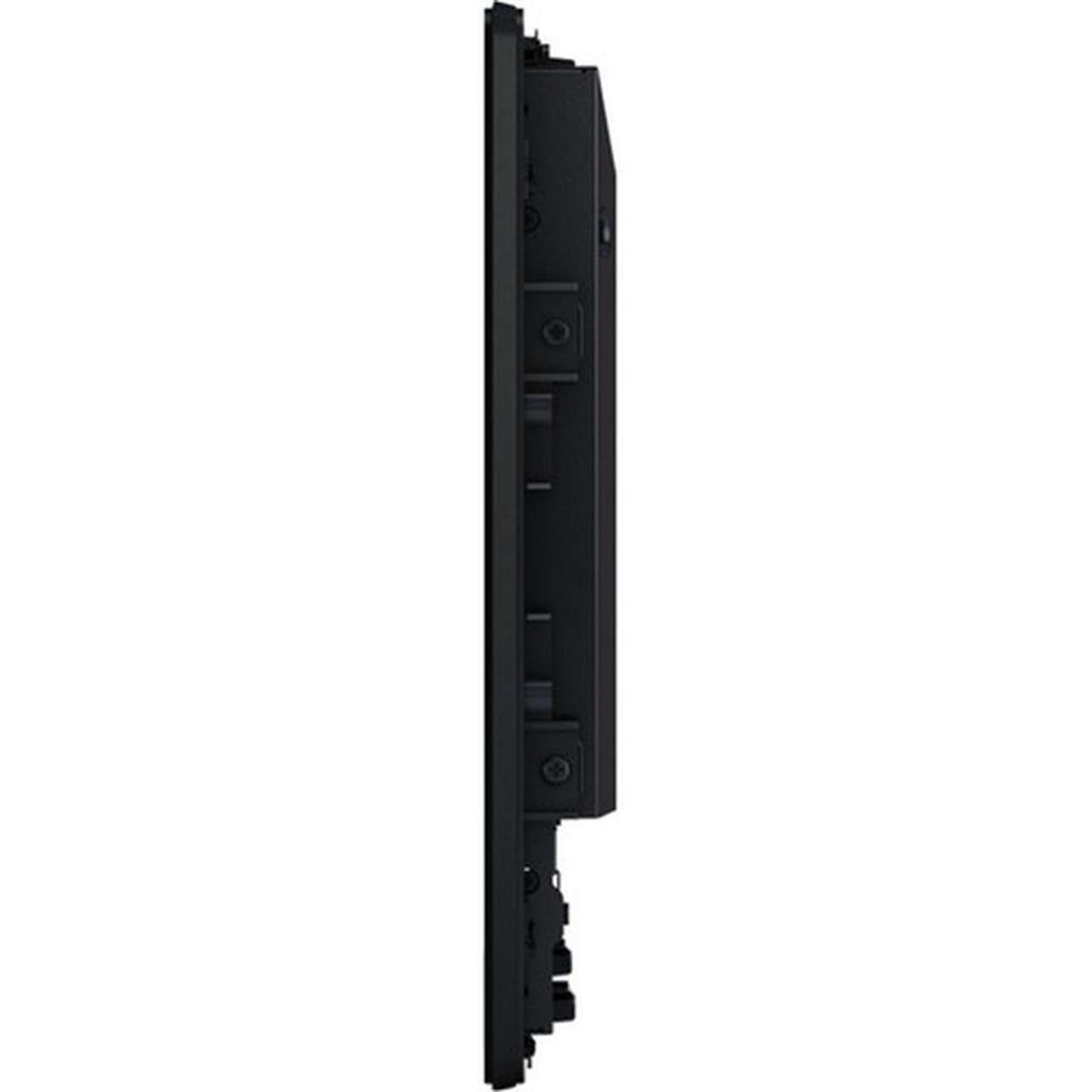

Depth: 1.65" (41.91 mm)
Weight (Approximate): 2.90 kg
MiscellaneousPackage Contents:
- 1590L 15" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
Environmentally Friendly: Yes
Environmental Certification:
TAA Compliant: No
WarrantyLimited Warranty: 3 Year
