- The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
- The 3,000:1 contrast ratio actualizes fantastic hues for an exceptional visual experience
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 250 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Marketing Information: The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

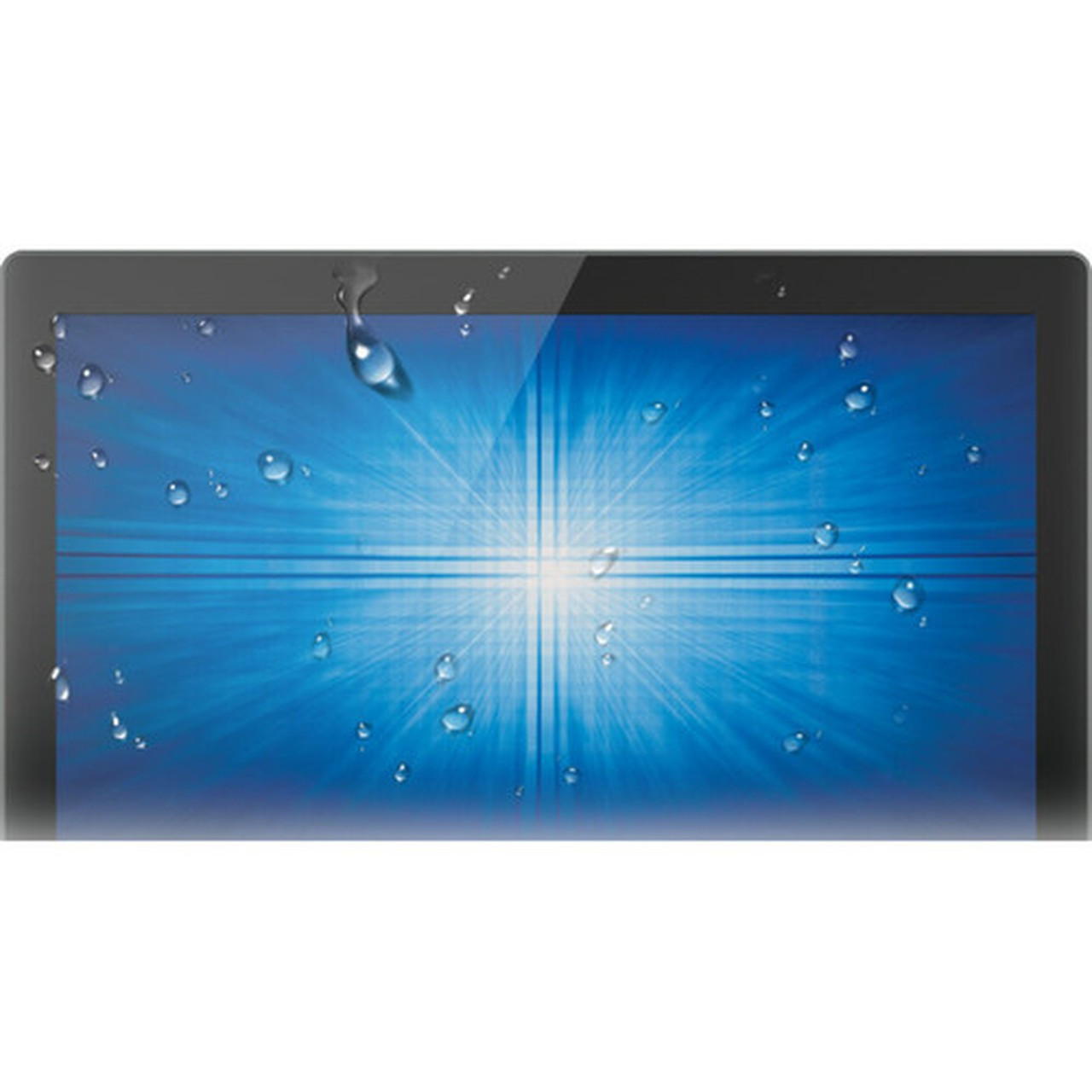

Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready. Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features. - Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Screen Size Class: 20"Viewable Screen Size: 19.5"Screen Mode: Full HDPanel Technology: Thin Film Transistor (TFT)Response Time: 20 msAspect Ratio: 16:9Horizontal Viewing Angle: 178°Vertical Viewing Angle: 178°Mount Type: - Front Mount
- Rack-mountable
Backlight Technology: LEDFeatures: On-screen Display (OSD)Horizontal Frequency: 30 kHz to 82 kHzVertical Frequency: 50 Hz to 75 HzCurved Screen: NoMaximum Resolution: 1920 x 1080Color Supported: 16.7 Million ColorsContrast Ratio: 3,000:1Brightness: 250 cd/m²Touchscreen Type: IntelliTouch Surface WaveHDMI: YesUSB: YesVGA: YesDisplayPort: YesOperating Power Consumption: 20 WProduct Color: BlackVESA Mount Compatible: YesVESA Mount Standard: 100 x 100Height: 11.03" (280.16 mm)Width: 18.74" (476 mm)Depth: 1.71" (43.43 mm)Weight (Approximate): 4.70 kgPackage Contents: - 2094L 19.5" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B info sheet
Environmentally Friendly: YesEnvironmental Certification: TAA Compliant: NoLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E328883
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 2094L
Product Name: 2094L 19.5" Open Frame Touchscreen (Rev B)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical InformationScreen Size Class: 20"
Viewable Screen Size: 19.5"
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 20 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:
- Front Mount
- Rack-mountable
Backlight Technology: LED
Features: On-screen Display (OSD)
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
VideoMaximum Resolution: 1920 x 1080
Color Supported: 16.7 Million Colors
Contrast Ratio: 3,000:1
Brightness: 250 cd/m²
Touchscreen InformationTouchscreen Type: IntelliTouch Surface Wave
Interfaces/PortsHDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Power DescriptionOperating Power Consumption: 20 W
Physical CharacteristicsProduct Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 11.03" (280.16 mm)
Width: 18.74" (476 mm)
Depth: 1.71" (43.43 mm)
Weight (Approximate): 4.70 kg
MiscellaneousPackage Contents:
- 2094L 19.5" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B info sheet
Environmentally Friendly: Yes
Environmental Certification:
TAA Compliant: No
WarrantyLimited Warranty: 3 Year
