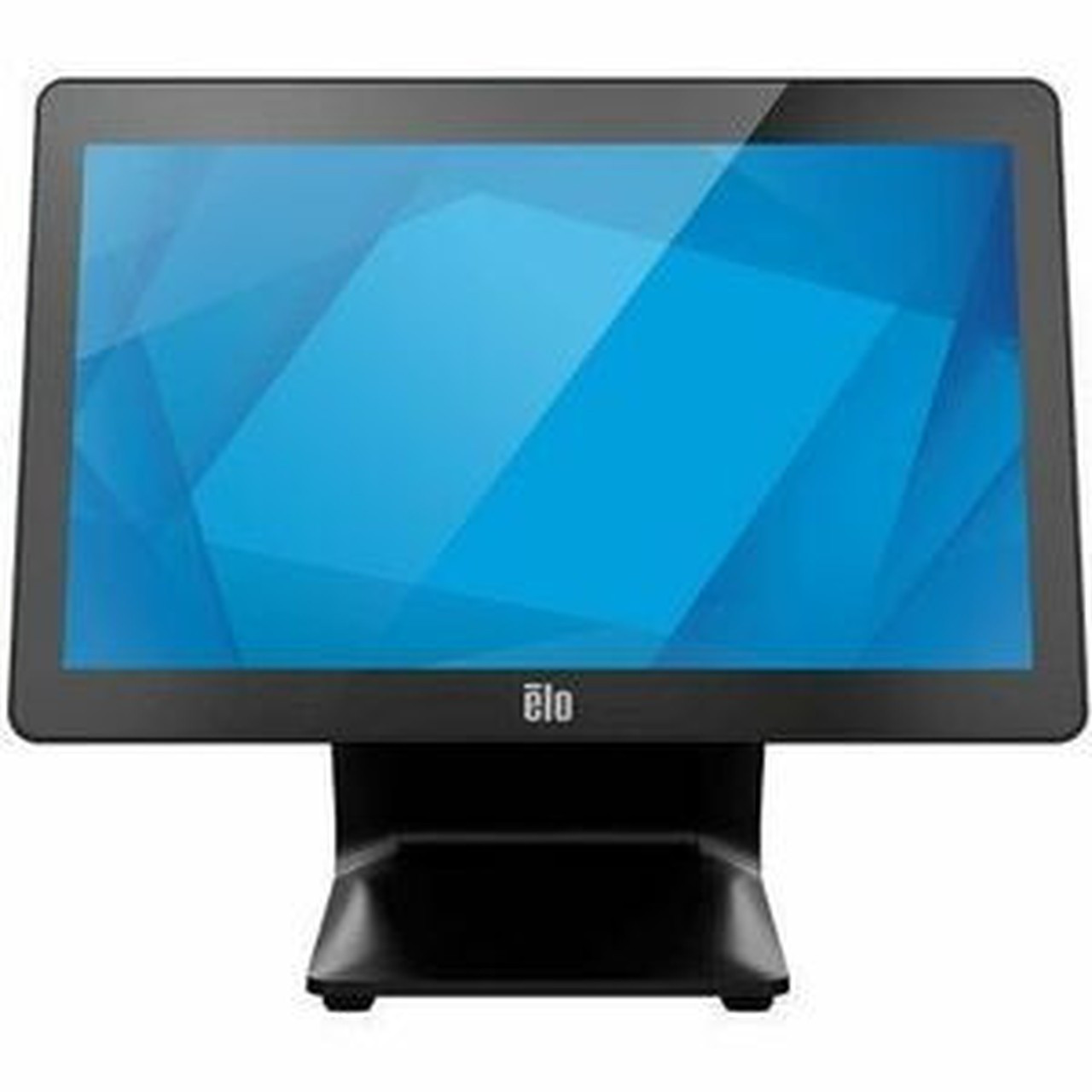

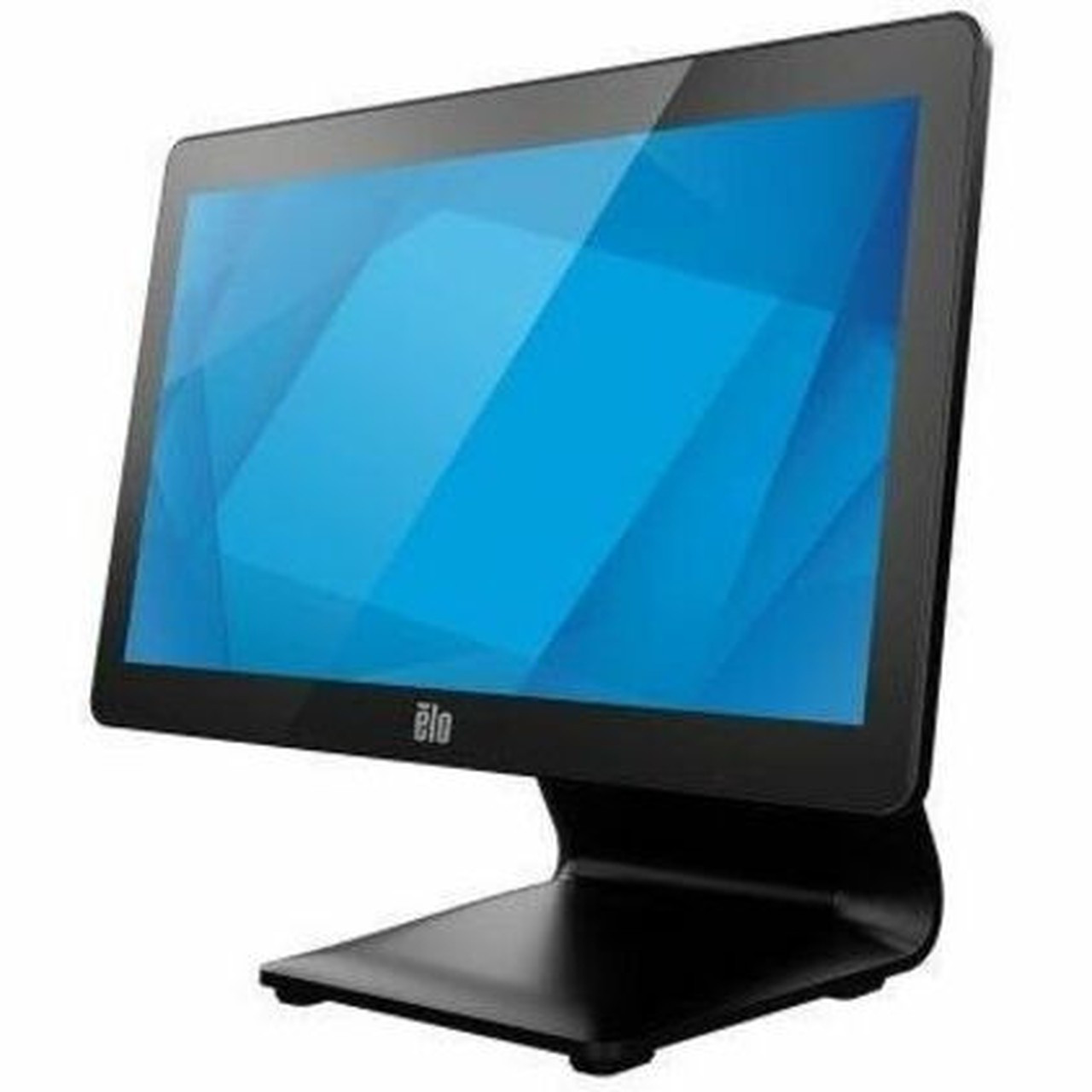

Elo I-Series 3 POS Terminal - (Intel Core i5 i5-1245UL 4.40 GHz - 8 GB DDR5 SDRAM - 128 GB SSD M.2 - Windows 10 IoT Enterprise LTSC (E706223)

Marketing Information:

Modular design.Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect

Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.

Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro™ and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.

Cooling Fan: Fanless

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.2

Form Factor: All-in-One

Features: Edge-to-Edge Glass Design,Anti-glare

Processor Manufacturer: Intel

Processor Type: Core i5

Processor Model: i5-1245UL

Processor Speed: 4.40 GHz

Standard Memory: 8 GB

Memory Technology: DDR5 SDRAM

Solid State Drive Capacity: 128 GB

Solid State Drive Interface: M.2

Screen Size: 15.6"

Active Display Size (Horizontal): 13.55" (344.17 mm)

Active Display Size (Vertical): 7.62" (193.55 mm)

Display Screen Type: LED

Screen Mode: Full HD

Touchscreen: Yes

Touchscreen Technology: Projected Capacitive

Multi-touch Screen: Yes

Number of Simultaneous Touch Points: 10

Graphics Controller Manufacturer: Intel

Graphics Controller Model: UHD Graphics

Color Supported: 16.2 Million Colors

Aspect Ratio: 16:9

Contrast Ratio: 1,000:1

Response Time: 25 ms

Horizontal Viewing Angle: 170°

Vertical Viewing Angle: 170°

Wireless LAN: Yes

Ethernet Technology: Gigabit Ethernet

USB: Yes

Powered USB: Yes

USB Type-C: Yes

Network (RJ-45): Yes

Cash Drawer Port: Yes

Serial Port: Yes

RJ-50: Yes

Number of Micro USB 2.0 Ports: 4

Number of USB 3.0 Ports: 4

Number of USB Type C Ports: 1

Speaker Power: 2 W

Number of Speakers: 2

Operating System: Windows 10 IoT Enterprise LTSC (64-bit)

Color Family: Black

Product Color: Black

Weight (Approximate): 6.40 kg

Ingress Protection (IP) Rating: IP54

Energy Star: Yes
