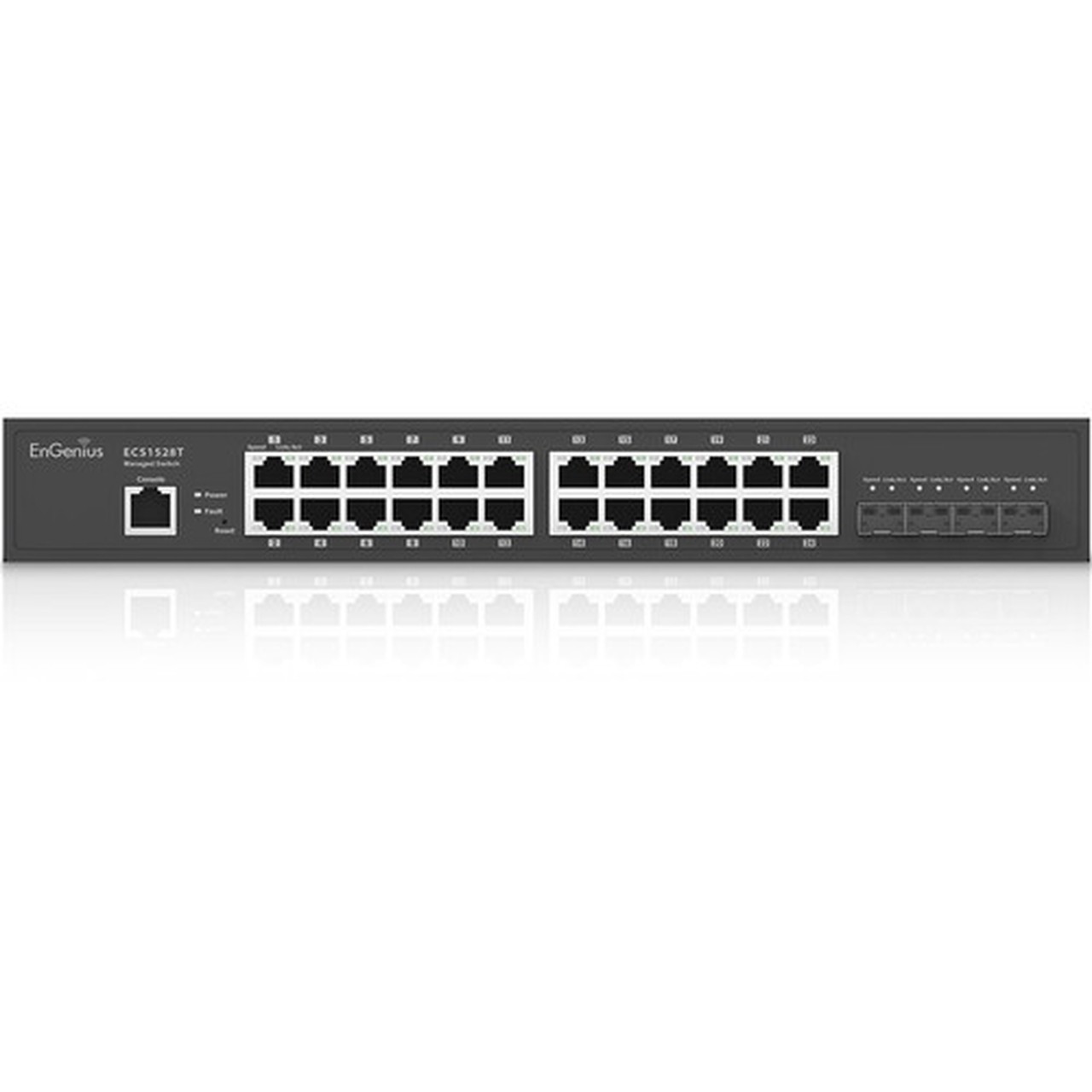

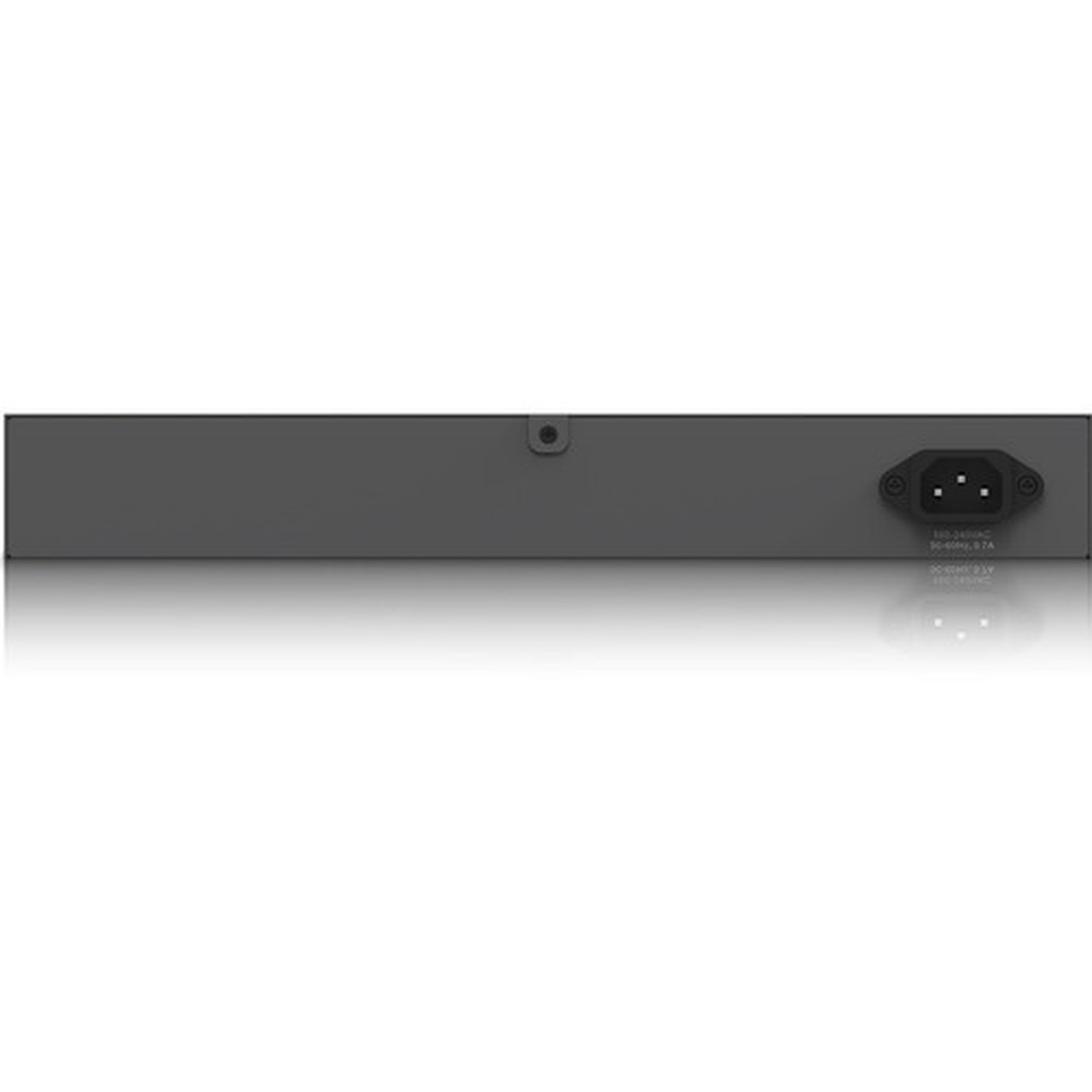

EnGenius Cloud Managed 24-Port 13" Compact Gigabit Switch with 4 SFP+ Ports - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit - - (ECS1528T)

Marketing Information:

The EnGenius cloud-managed ECS1528T 24-port 13" 1U rackmount compact gigabit layer 2+ switch with 4 SFP+ uplink ports and multiple management options for large businesses to easily configure, monitor, and manage. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget.

• 24 10/100/1000 Base-T GbE Ports
• Full-Featured Layer 2+ Switching
• 13" 1U rackmount compact design
• 128 Gbps Switching capacity
• 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
• Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
• Quick-Scan Device Register, Remote Monitoring and Troubleshooting
• Advanced View Displays Network Topology with Devices and Relationships
• Hybrid Switch Supports Multiple Management Options
• Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
• IGMP & MLD snooping provides advanced multicast filtering & network efficiency
• 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
• Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
• Voice VLAN for fast, reliable deployment of VoIP services

Total Number of Network Ports: 24

Network (RJ-45): Yes

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details: 24 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot

Media Type Supported: Optical Fiber,Twisted Pair

Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet

Network Technology: 10/100/1000Base-T,10GBase-X

Total Number of Expansion Slots: 4.0

Expansion Slot Type: SFP+

Number of SFP+ Slots: 4

Layer Supported: 2

Networking Standards: IEEE 802.1x,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1D,IEEE 802.3az

Manageable: Yes

Input Voltage: 120 V AC,230 V AC

Power Source: Power Supply

Compatible Rack Unit: 1U

Form Factor: Rack-mountable,Compact

Height: 1.73" (44 mm)

Width: 9.06" (230 mm)

Length: 12.99" (330 mm)

Weight (Approximate): 5.07 lb (2300 g)

Package Contents:

• Cloud Managed 24-Port 13" Compact Gigabit Switch with 4 SFP+ Ports
• 1 x Quick Installation Guide
• 1 x Power Cord
• 1 x RJ45 Console Cable
• 1 x Rack Mount Kit

Limited Warranty: 2 Year
