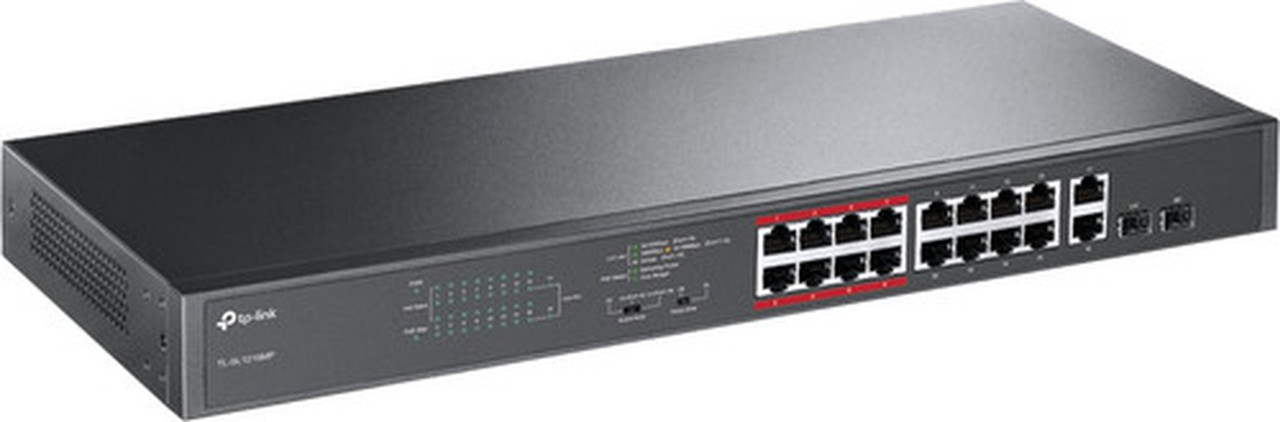

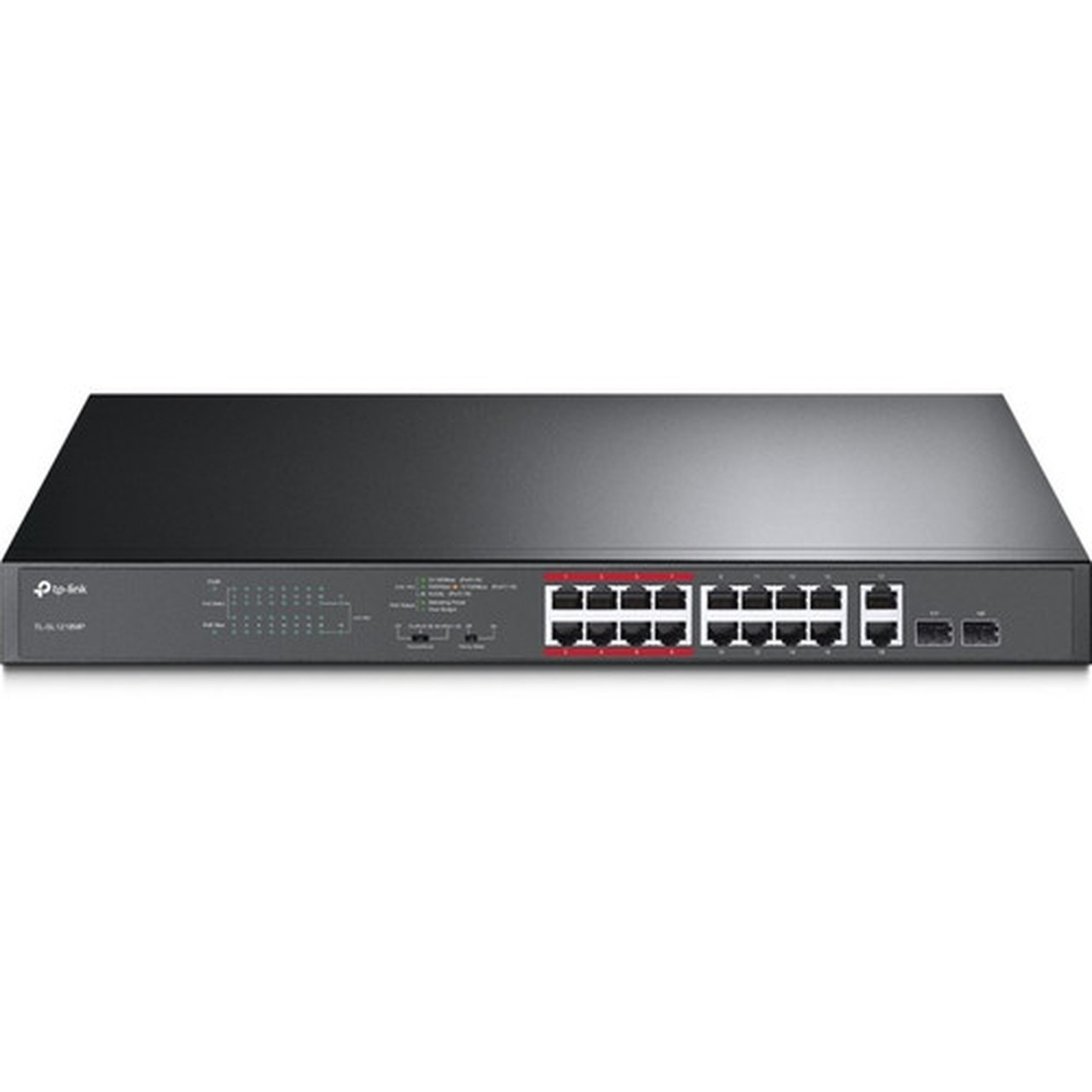

TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch - 16 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical - 1U (TL-SL1218MP)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Write a Review
TP-LINK
TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch - 16 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical - 1U (TL-SL1218MP)
- 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
- Power Cable
- Installation Guide
- 2 x Mounting Brackets and the Fittings
Marketing Information:
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Total Number of Network Ports: 16
Network (RJ-45): Yes
Modular: Yes
Port/Expansion Slot Details: 16 x Fast Ethernet PoE+,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Fast Ethernet,Gigabit Ethernet
Network Technology: 10/100Base-T,10/100/1000Base-T,1000Base-X
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Layer Supported: 2
Networking Standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Power Source: Power Supply
Power Consumption: 15 W
Product Material: Metal
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.73" (44 mm)
Width: 17.32" (440 mm)
Depth: 7.09" (180 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 3 Year
- 16 PoE+ 10/100Mbps RJ45 ports, 2 gigabit RJ45 ports and 2 combo Gigabit SFP slots.
- Up to 250M data and power transmission under extend mode specially designed for surveillance system.
- Priority mode for portal to guarantees the quality of sensitive applications like video monitor.
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports.
- Easy to use, with no configuration and installation needed.
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SL1218MP |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Model | TL-SL1218MP |
| Product Name | 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch |
| Product Type | Ethernet Switch | Interfaces/Ports |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Fast Ethernet PoE+,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot | Media & Performance |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Network Technology | 10/100Base-T,10/100/1000Base-T,1000Base-X | I/O Expansions |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 | Network & Communication |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x | Management & Protocols |
| Manageable | No | Power Description |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Power Source | Power Supply |
| Power Consumption | 15 W | Physical Characteristics |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 7.09" (180 mm) | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China | Warranty |
| Limited Warranty | 3 Year |
[/custom-specifications]
