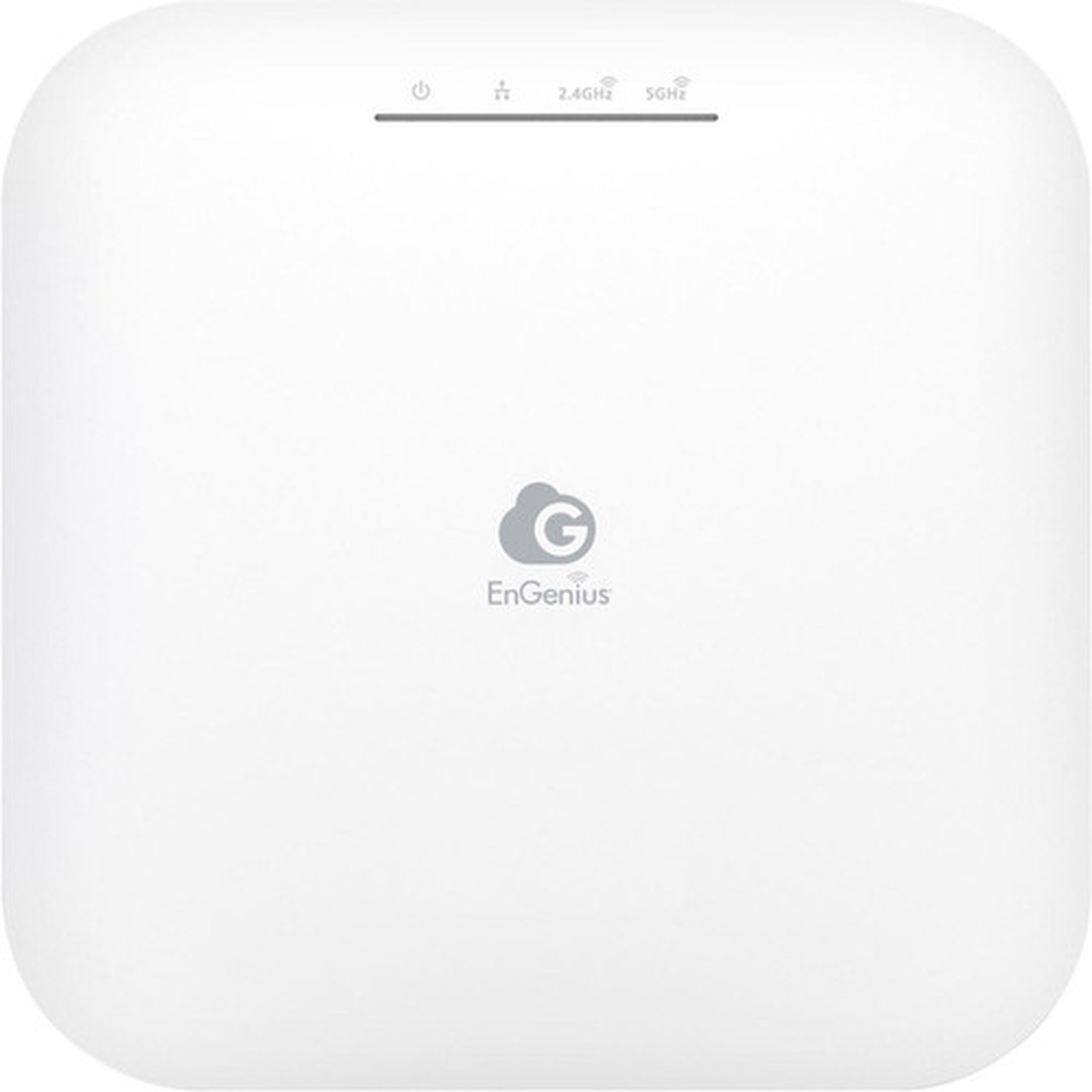

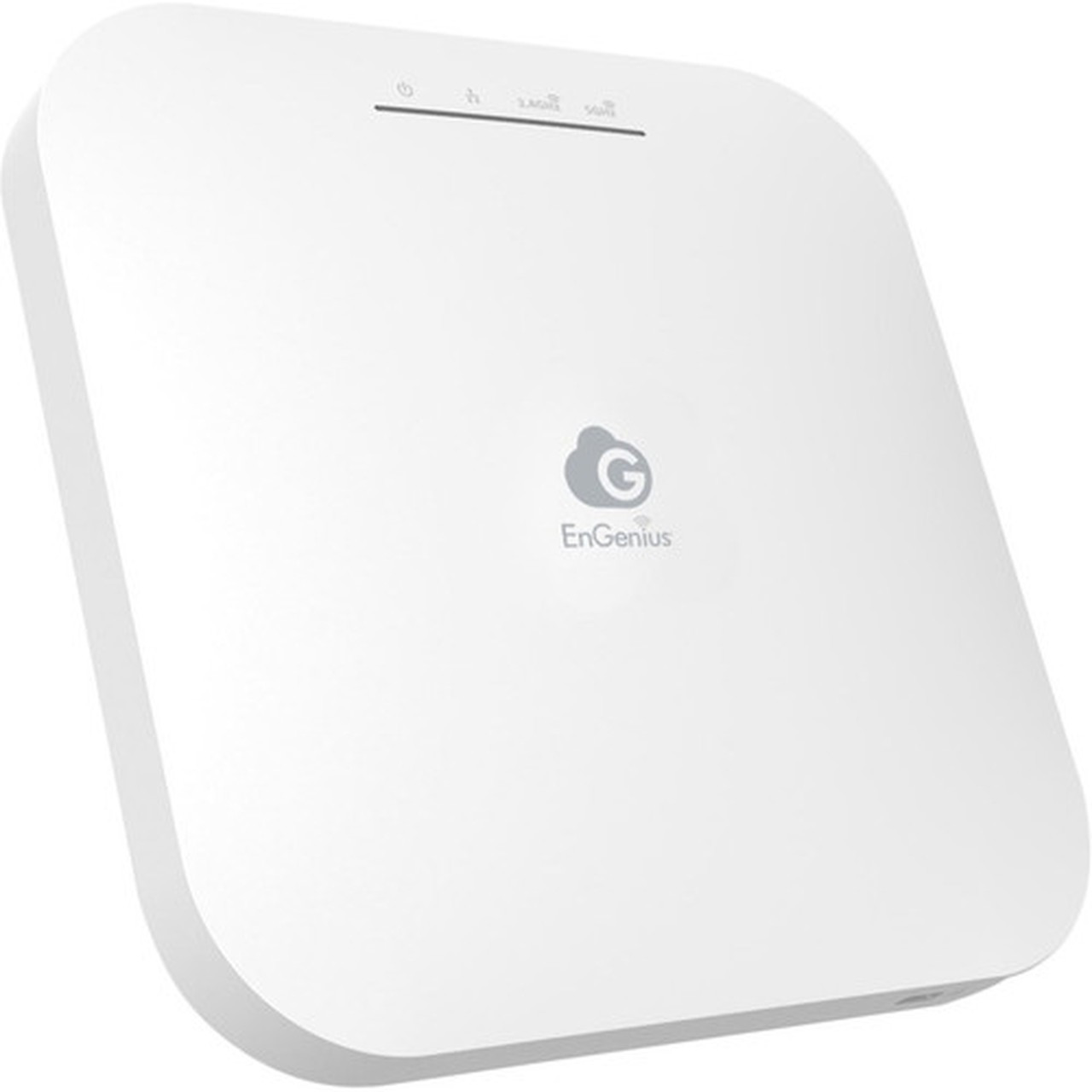

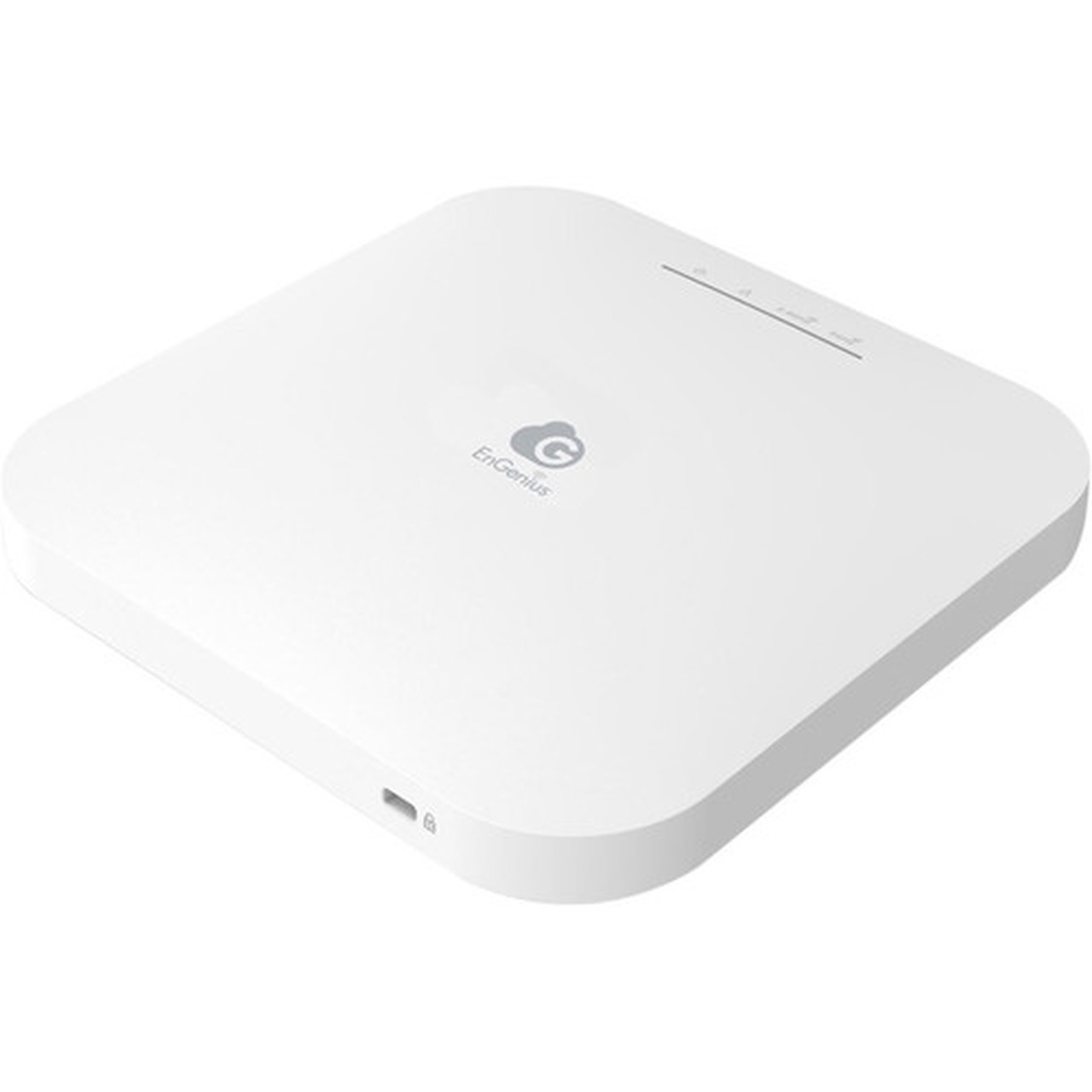

EnGenius ECW220 802.11ax 1.73 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 4 x Internal Antenna(s) - MIMO Technology - 1 x Network (ECW220)

Marketing Information:

EnGenius Cloud Managed ECW220 Wi-Fi 6 (802.11ax) 2x2 Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi. The low-profile AP consumes less power & provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency).

• Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
• Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band
• Uplink and downlink of OFDMA improves transmission to APs and client devices
• Target wake time for power-saving of client & IoT devices
• Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices

Wireless LAN Standard: 802.11ax

Frequency Band: 2.40 GHz,5 GHz

Total Number of Antennas: 4

Number of Internal Antennas: 4

Wireless Transmission Speed: 1.73 Gbit/s

MIMO Technology: Yes

Beamforming Technology: Yes

Ethernet Technology: Gigabit Ethernet

Number of Network (RJ-45) Ports: 1

PoE PD Port: Yes

Form Factor: Ceiling Mountable,Wall Mountable

Height: 1.31" (33.27 mm)

Width: 6.30" (160.02 mm)

Depth: 6.30" (160.02 mm)

Weight (Approximate): 385.6 g

Package Contents:

• Cloud Managed Wi-Fi 6 2×2 Indoor Wireless Access Point
• 1 x Ceiling Mount Base (9/16" Trail)
• 1 x Ceiling Mount Base (15/16" Trail)
• 1 x Ceiling and Wall Mount Screw Kit
• 1 x Quick Installation Guide

Country of Origin: Taiwan

Limited Warranty: 2 Year
