- A smart and inexpensive solution to print temporary documents
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Conveniently print your receipts
- Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.

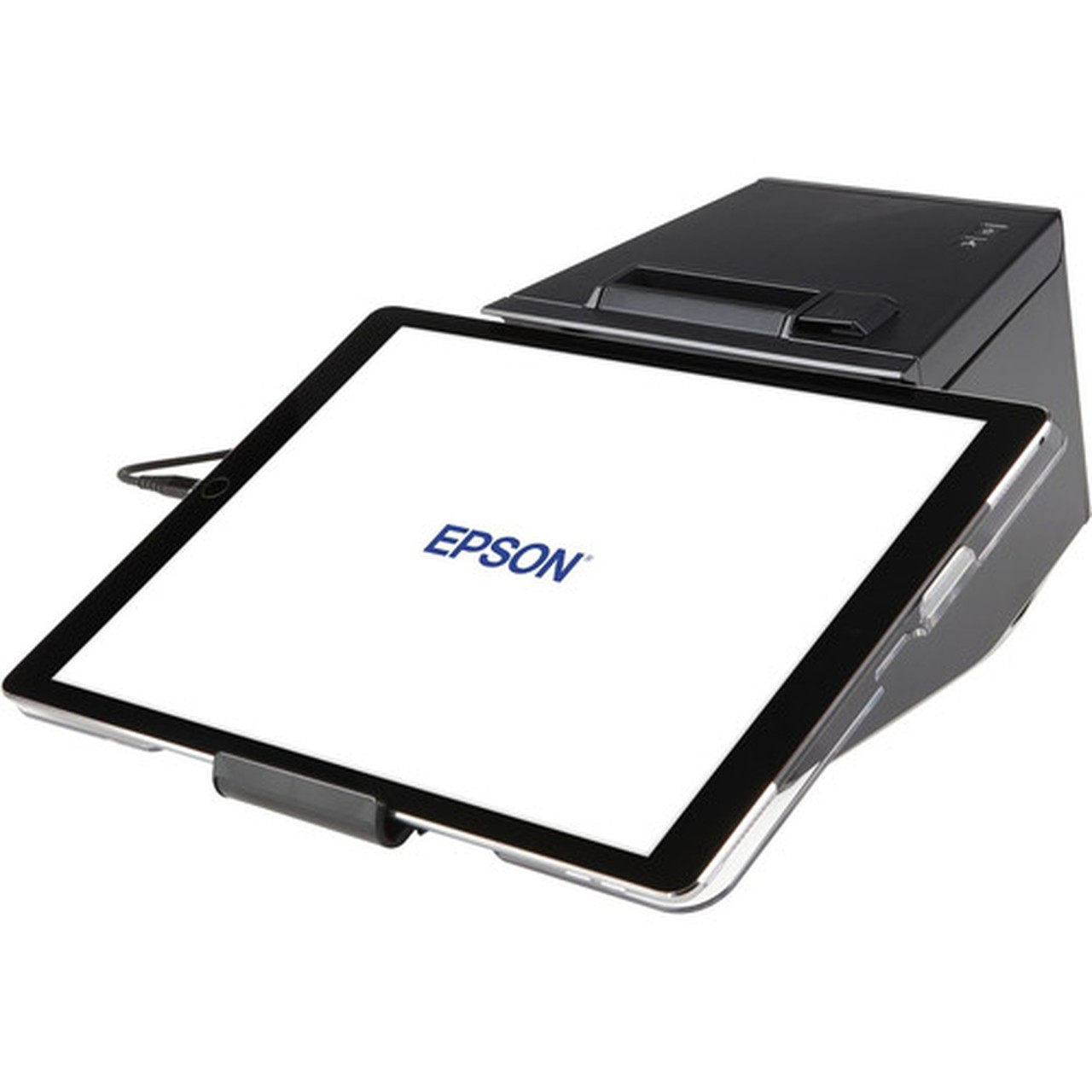

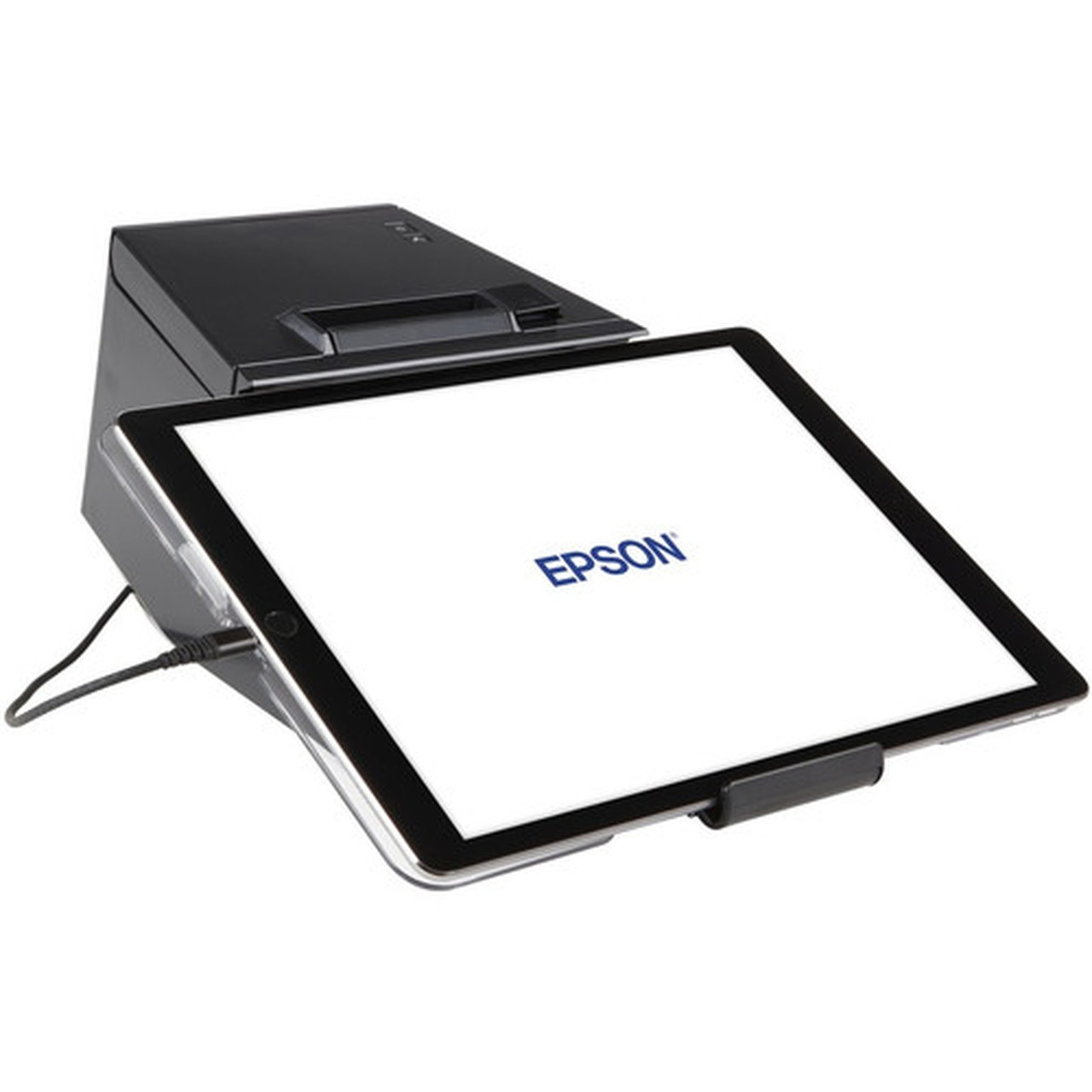

Marketing Information: A compact sleek POS printer with built-in tablet mount and convenient connectivity, the OmniLink TM-m30II-SL thermal receipt printer offers fast, easy setup in any setting - even space-constrained areas. Its modern industrial design gives users multiple configuration options and flexible positioning. Made to accommodate up to four POS peripheral devices via USB, this all-in-one POS printer can even charge a tablet and communicate data - all using a single USB cable1 (tablet and cable not included). The OmniLink TM-m30II-SL features USB-Network-Tethering, which enables network connection to tablets, making it perfect for locations that experience issues with wireless connectivity. And, it supports online ordering through Server Direct Print as well as cloud applications via OmniLink Merchant Services.
Recommended Use: Receipt PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 250 mm/sMaximum Print Resolution (dpi): 203Barcode Symbology Supported: - UPC-A
- UPC-E
- EAN/JAN-8
- EAN/JAN-13
- Code 39
- Code 93
- Code 128
- ITF
- Codabar (NW-7)
- GS1-128
- GS1 DataBar
- Code 128-Auto
- PDF417
- QR Code
- Maxi Code
- Data Matrix
- Aztec Code
- Composite Symbology
Character Sets: - 95 Alphanumeric
- 18 International
- 128 x 43 Graphic
Connectivity Technology: Wired & WirelessFonts Included: - Font A: 12 x 24 48 cpl (default)
- Font B: 10 x 24 57 cpl
- Font C: 9 x 17 64 cpl
- Kanji Font A: 24 x 24 24 cpl
- Kanji Font B: 20 x 24 28 cpl (Japanese)
- 36 cpl (Korean)
Application/Usage: DesktopFeatures: - Compact
- Auto-cutter
- Cash Drawer Port
USB Host: YesUSB: YesEthernet: YesEthernet Technology: Fast EthernetBluetooth: YesWireless LAN: YesCutter: YesCutting Method: AutomaticCutter Life: 2200000 CutsMedia Type: Media Sensor: - Paper End Sensor
- Cover Open Sensor
- Paper Near End Sensor
Media Thickness: 3.1 milMaximum Roll Diameter: 3.3"Maximum Label Width: 3.15" (80 mm)Operating System Supported: Supported Operating Systems iOS®, Android™, Windows®, Mac® OS X®, GNU (Linux)Mean Time Between Failures (MTBF): 41.1 YearMean Cycles Between Failures (MCBF): 65000000Print Head Life: 150 kmPower Source: Input Voltage: 120 V ACOperating Temperature: 41°F (5°C) - 113°F (45°C)Operating Relative Humidity: 10% - 90%Product Color: BlackHeight: 6.54" (166 mm)Width: 11.38" (289 mm)Depth: 12.68" (322 mm)Weight (Approximate): 3.50 kgPackage Contents: - OmniLink TM-m30II-SL (embedded PS-180)
- Power Switch Cover
- Roll Paper (for checking initial movement of the printer)
- Setup Guide
- Lock Lever Cover
- Screw (to secure the lock lever cover)
- Large Tablet Table
- AC Cable (Depending on configuration)
- 58 mm Width Roll Paper Guides
Cables Included: ACPower Adapter Included: YesSystem Requirements: Supported Operating Systems iOS®, Android™, Windows®, Mac® OS X®, GNU (Linux)Platform Supported: Noise Level: 55 dBEnergy Star: YesEnvironmentally Friendly: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Epson Corporation
Manufacturer Part Number: C31CH63A9981
Manufacturer Website Address: http://epson.ca
Brand Name: Epson
Product Line: OmniLink
Product Series: TM-m30II-SL
Product Model: TM-m30II-SL
Product Name: OmniLink TM-m30II-SL POS Thermal Receipt Printer with Built-in Tablet Mount
Product Type: Direct Thermal Printer
Technical InformationRecommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 250 mm/s
Maximum Print Resolution (dpi): 203
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN/JAN-8
- EAN/JAN-13
- Code 39
- Code 93
- Code 128
- ITF
- Codabar (NW-7)
- GS1-128
- GS1 DataBar
- Code 128-Auto
- PDF417
- QR Code
- Maxi Code
- Data Matrix
- Aztec Code
- Composite Symbology
Character Sets:
- 95 Alphanumeric
- 18 International
- 128 x 43 Graphic
Connectivity Technology: Wired & Wireless
Fonts Included:
- Font A: 12 x 24 48 cpl (default)
- Font B: 10 x 24 57 cpl
- Font C: 9 x 17 64 cpl
- Kanji Font A: 24 x 24 24 cpl
- Kanji Font B: 20 x 24 28 cpl (Japanese)
- 36 cpl (Korean)
Application/Usage: Desktop
Features:
- Compact
- Auto-cutter
- Cash Drawer Port
Interfaces/PortsUSB Host: Yes
USB: Yes
Network & CommunicationEthernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Wireless LAN: Yes
CutterCutter: Yes
Cutting Method: Automatic
Cutter Life: 2200000 Cuts
Media Types & HandlingMedia Type:
Media Sensor:
- Paper End Sensor
- Cover Open Sensor
- Paper Near End Sensor
Media Thickness: 3.1 mil
Maximum Roll Diameter: 3.3"
Maximum Label Width: 3.15" (80 mm)
SoftwareOperating System Supported: Supported Operating Systems iOS®, Android™, Windows®, Mac® OS X®, GNU (Linux)
ReliabilityMean Time Between Failures (MTBF): 41.1 Year
Mean Cycles Between Failures (MCBF): 65000000
Print Head Life: 150 km
Power DescriptionPower Source:
Input Voltage: 120 V AC
Environmental ConditionsOperating Temperature: 41°F (5°C) - 113°F (45°C)
Operating Relative Humidity: 10% - 90%
Physical CharacteristicsProduct Color: Black
Height: 6.54" (166 mm)
Width: 11.38" (289 mm)
Depth: 12.68" (322 mm)
Weight (Approximate): 3.50 kg
MiscellaneousPackage Contents:
- OmniLink TM-m30II-SL (embedded PS-180)
- Power Switch Cover
- Roll Paper (for checking initial movement of the printer)
- Setup Guide
- Lock Lever Cover
- Screw (to secure the lock lever cover)
- Large Tablet Table
- AC Cable (Depending on configuration)
- 58 mm Width Roll Paper Guides
Cables Included: AC
Power Adapter Included: Yes
System Requirements: Supported Operating Systems iOS®, Android™, Windows®, Mac® OS X®, GNU (Linux)
Platform Supported:
Noise Level: 55 dB
Energy Star: Yes
Environmentally Friendly: Yes
WarrantyLimited Warranty: 2 Year
[/custom-specifications]
