Fiber Optic Red Light Pen Tester VFL (Visual Fault Locator) - 1mW - 2.5mm Ferrule for SC & ST + 2.5mm to 1.25mm Ferrule Adapter for VFL LC Connectors
Description
Overview

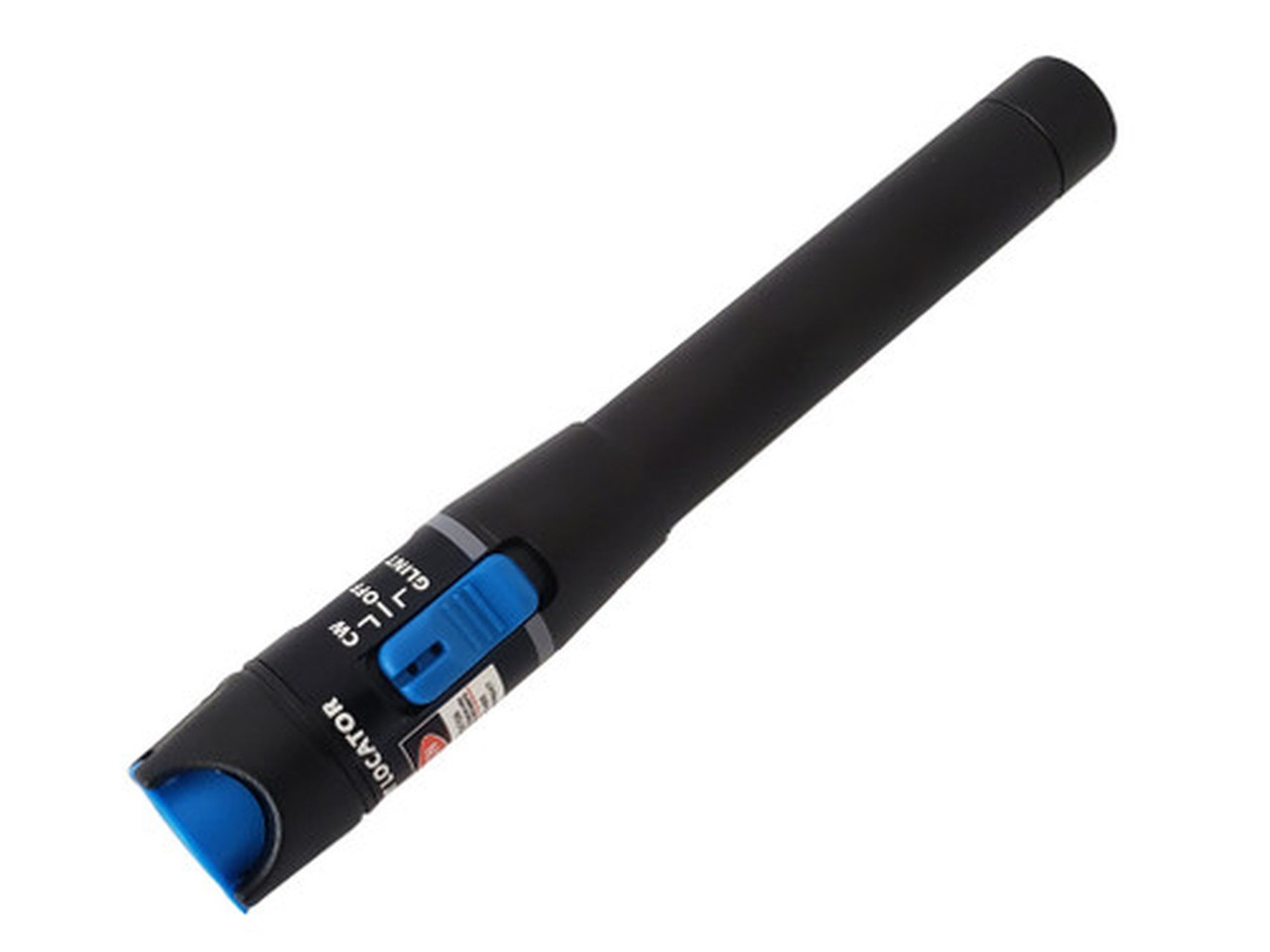

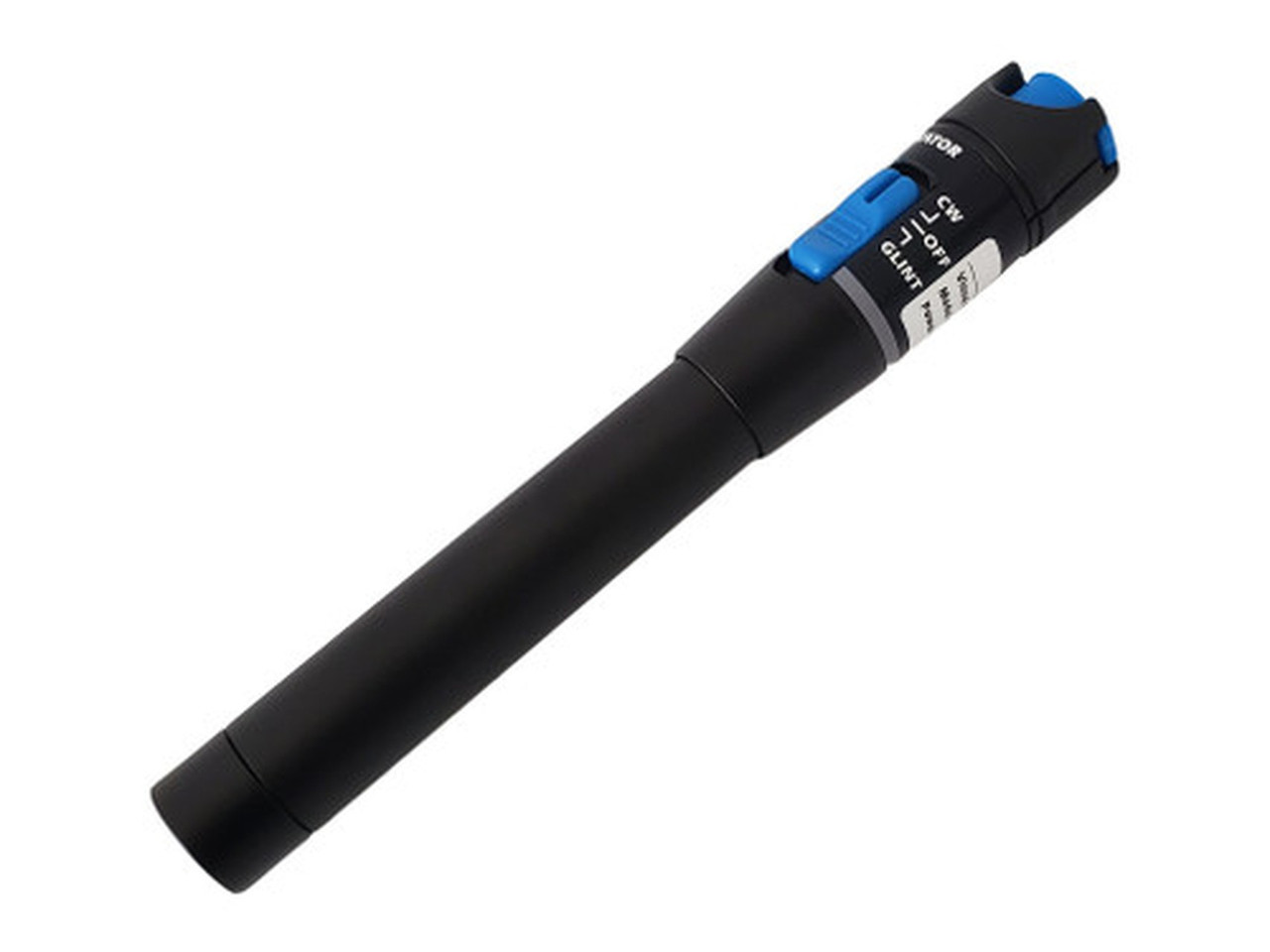

This pen shaped visual fault locator is a tool used on terminated fiber optic cables to locate sharp bends or breaks in jacketed or bare fiber.
Note: Meant for use with polished, terminated fiber cables. Always insert and remove the fiber connector without bending the connector to avoid breaking the ceramic tube.
 |
Protective CoverThe protective dust cap keeps the fiber connection port clear from dust and debris when not in use. Durable Metal HousingThe VFL is constructed with a metal housing for long lasting durability. Identify Fiber Breaks EasilyThe pen has a bright red laser at 650nm and can quickly illuminate fiber optic cable breaks. It also has continuous (CW) and flashing (Glint) modes.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Material | Metal Housing |
| Wave Output | 650nm ± 20nm |
| Fiber Connector | 2.5mm Universal Connector |
| Output Power | 1mW |
| Dynamic Distance | 3~5km |
| Operation Mode | Pulsed (2Hz) and CW |
| Operating Temperature | 0 ~ +60 deg C |
| Storage Temperature | -20 ~ +70 deg C |
| Battery Style | LR6 (AA) 1.5V x 2 (Batteries not Included) |
| Battery Life | >40H (1mW) |
| Size | 175 x 26 x 26mm |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
| Product Weight | 0.37 lbs [0.17 kg] |
| Items Included | 1 x VFL Pen 1 x Carrying Case 1 x Carrying Strap (Batteries not Included) |

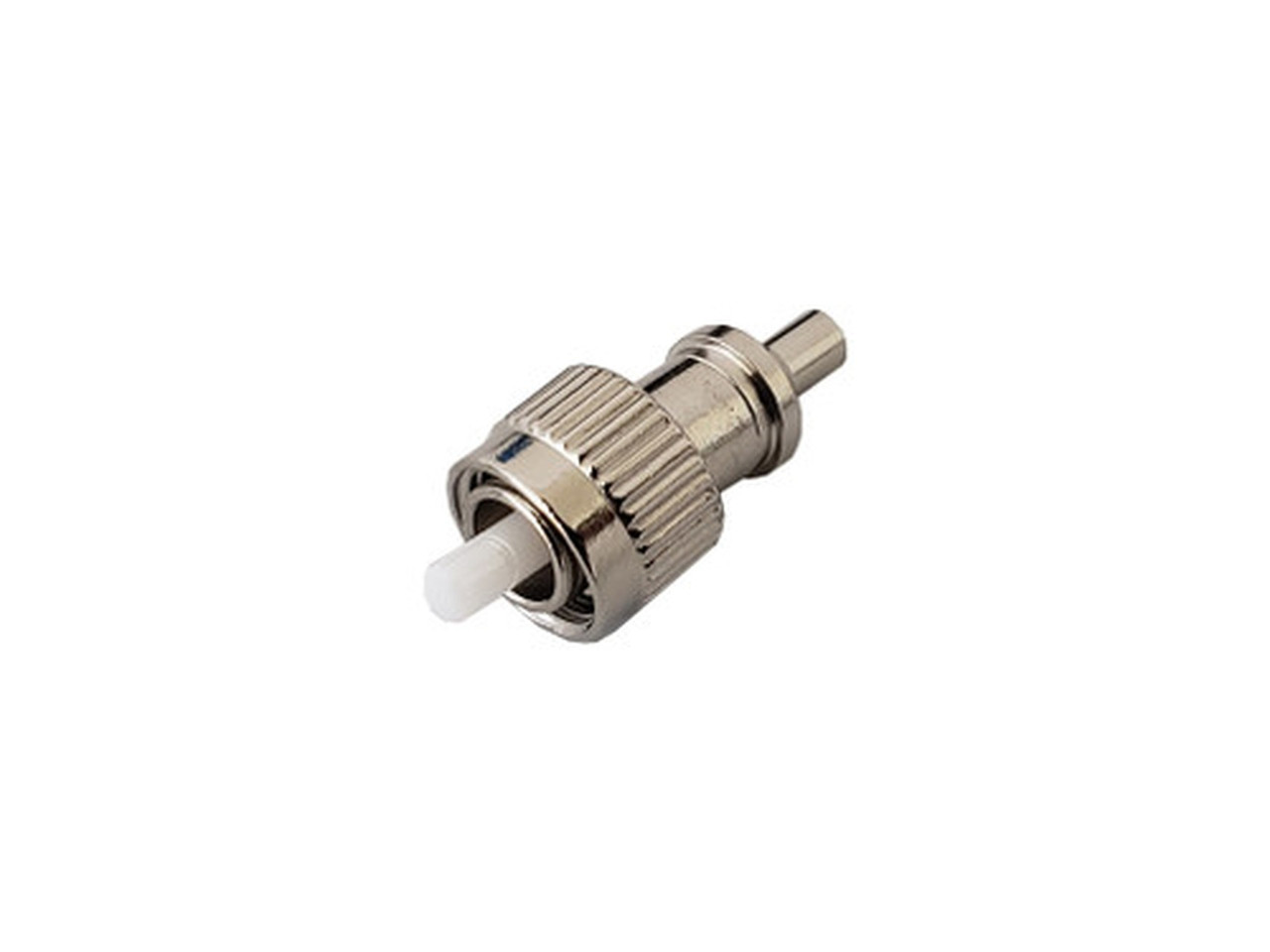

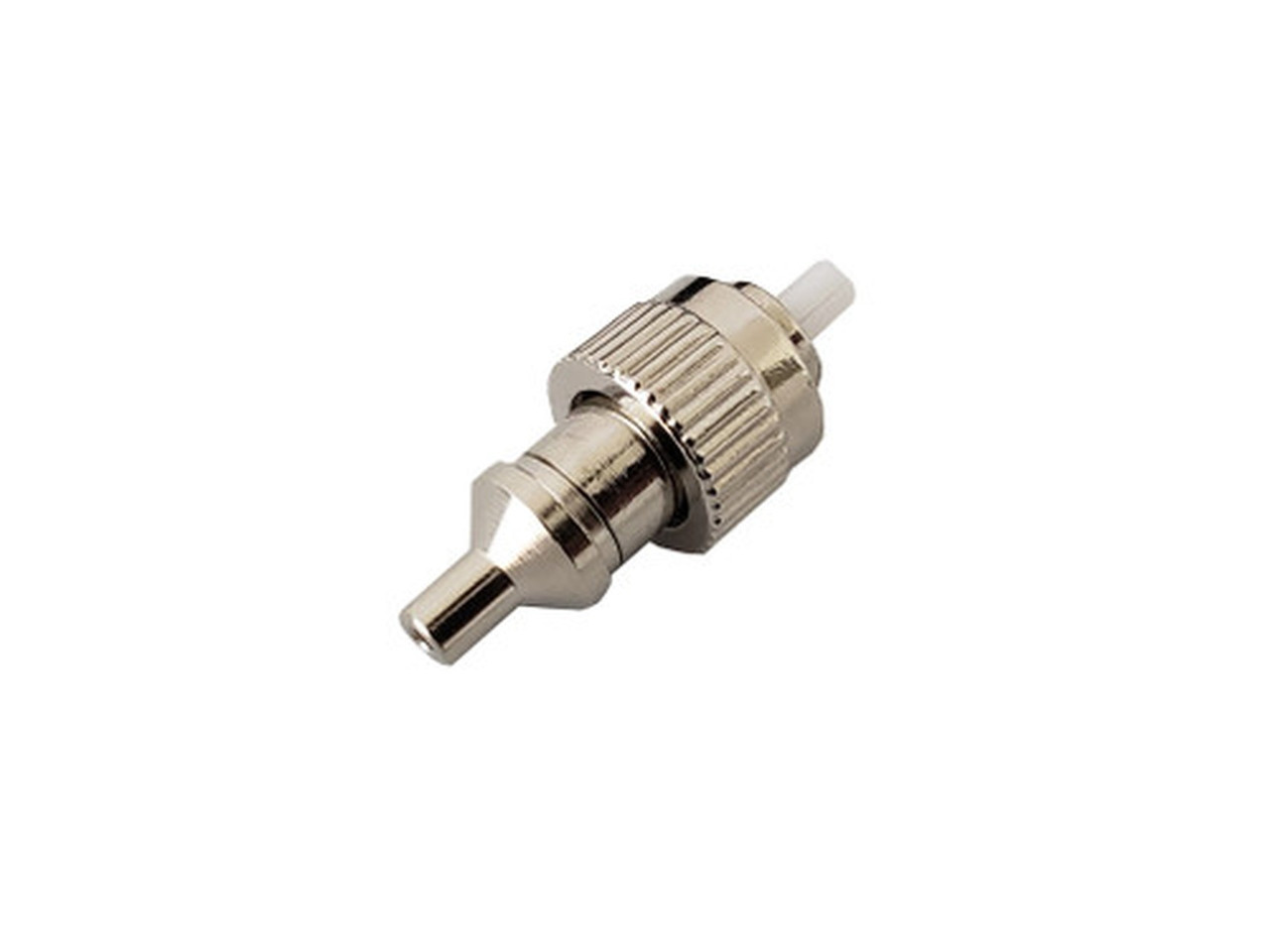

This ferrule adapter is used to convert the 2.5mm ferrule of a VFL to a 1.25mm ferrule in order to plug in LC connectors. Compatible with our TLH-2000 VFL tool.
|
Physical Characteristics
|
|
|---|---|
| Color | Nickel Plated |
| Housing | Metal |
| Sleeve | Ceramic |
|
Connector(s)
|
|
| Connector A | 2.5mm Male Ferrule |
| Connector B | 1.25mm Female Ferrule |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.01 lbs |
Spec Sheets
