Aqua 24 Fiber 50 Micron Multimode Armored AFL Corning ClearCurve OFNP Per Meter FN-Corning FN-OM3 FN-per FN-BK-F24A-OM3-P
SKU:
FN-BK-F24A-OM3-P
(No reviews)
Write a Review
Write a Review
Fleet Network
Aqua 24 Fiber 50 Micron Multimode Armored AFL Corning ClearCurve OFNP Per Meter FN-Corning FN-OM3 FN-per FN-BK-F24A-OM3-P
$31.33
$31.00
Warranty Information:
Covered by Manufacturer
Condition:
New
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
FleetAI Assistant
Products Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description

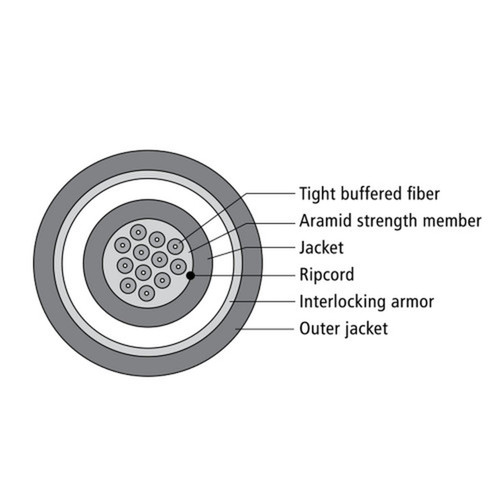

This bulk 24-strand OM3 armored fiber cable is plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM3 50µ Multimode Plenum Armored Tight Buffered Cable |
| Fiber Count | 24-Strand |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 11.8mm |
| Tension(Installation) | 200 lbs |
| Tension(Long Term) | 60 lbs |
| Bending Radius(Installation) | 17.7cm |
| Bending Radius(Long Term) | 12.7cm |
| Operating Temperature | -0 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +75 deg C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNP |
Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
Environmental | |
| RoHS | Yes |
Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.4 lbs [0.1 kg] |
