Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Overview

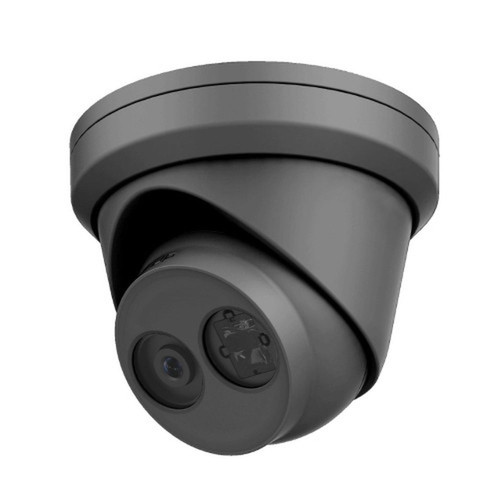

This 8MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with 2.8mm or 3.6mm fixed lens which delivers 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
Features
- 8 Megapixel high-performance CMOS
- Smart IR, up to 30 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP67 outdoor rated, IK10 rated
- DWDR
- 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- 12 VDC
- Up the Coax (UTC-C)
- 2.8mm/3.6mm Lens
Application
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) x 1080 (V) |
| Minimum Illumination | 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Maximum 16 times |
| Lens | 2.8mm |
| Horizontal Field of View |
102.25° |
| Day & Night | ICR |
| Lens Mount | Φ14 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Synchronization | Internal synchronization |
| S/N Ratio | >62 dB |
|
Menu
|
|
| AGC | Low/middle/high |
| DWDR | Yes |
| Day and Night Mode | Smart/color/BW(Black and White) |
| White Balance | Auto/Manual |
| Backlight Compensation | Yes |
| Language | English |
| Functions | Digital noise reduction, Mirror |
|
Interface
|
|
| Video Output | 1 HD analog output |
|
General
|
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 15% |
| Power Consumption | Max. 4 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| IR Range | Up to 65 ft (20 m) |

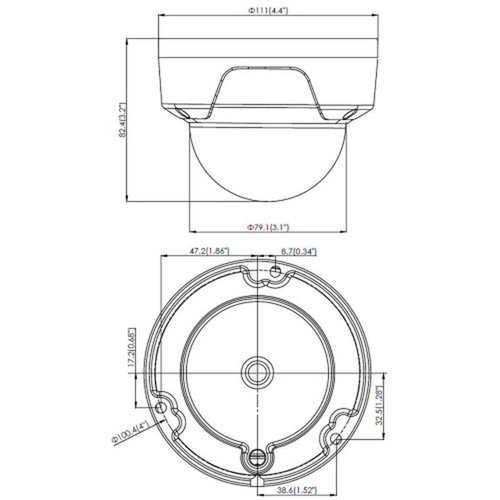

| Dimensions | ⌀ 4.33" x 3.67" (⌀ 110 mm x 93.2 mm) |
| Weight | Approximately 1.21 lbs (550 g) |
|
Approvals
|
|
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Products
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-RG59P | BNC Male Crimp Connector for RG59 Plenum Cable |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
Warranty Information
Covered by Manufacturer| Qty | Price | Available |
|---|
