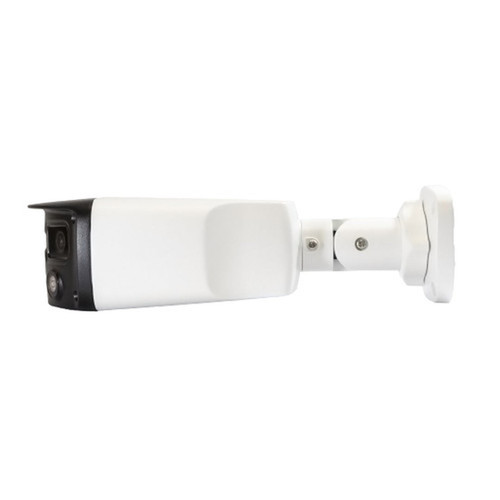

Wide Angle Bullet Camera With ColorNight Mic Speaker IP67 Weatherproof Mic/Speaker FN-SC-2K43-ICS-F40M
Write a Review
Fleet Network
Wide Angle Bullet Camera With ColorNight Mic Speaker IP67 Weatherproof Mic/Speaker FN-SC-2K43-ICS-F40M
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Overview
This 4MP wide angle bullet camera provides sharp, high definition images in daylight or nighttime color settings. The camera has two 4.0mm fixed lenses. Its maximum resolution is 3840*1080 at 25 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. Its double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10° and colorhunter technology ensures 24-hour full-color images . It also features human body detection.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/2.9″, 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° |
| S/N | >56dB |
| WDR | DWDR |
|
Lens
|
|
| Lens Type |
2 * 4.0mm@F1.0 |
| Iris | Fixed |
| Angle of View (H) |
160.00°±10° |
| Angle of View (V) |
43.22° |
| Angle of View (O) |
180.13°±10°° |
|
DORI
|
|
| DORI Distance | Lens: 4.0m Detect: 64.3m Observe: 25.7m Recognize: 12.9m Identify: 6.4m
|
|
Illuminator
|
|
| LED Distance |
Up to 30m (98ft) |
| LEDs Number | 2 |
| LED On/Off Control | Auto/Manual |
|
Video
|
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off） Sub Stream: 1920*540, Max 25fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI |
Up to 8 areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Video Stream | Double streams |
|
|
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | N/A |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
|
Events
|
|
| Basic Detection | Human Body Detection ,motion detection, tampering alarm, audio detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Audio
|
|
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
|
Storage
|
|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
|
Network
|
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
|
Interface
|
|
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| RS485 | N/A |
| Built-In Mic | Built-in two mics |
| Built-In Speaker | Supported |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
|
Certification
|
|
| EMC |
CE-EMC FCC |
| Safety |
CE LVD CB UL |
| Environment | CE-ROHS |
| Protection | IP67 IK10 |
| NDAA Compliant | Yes |
|
General
|
|
| Power |
DC 12V±25%, PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8) Power consumption: MAX 6.5W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
273× 130 × 76mm (10.7” × 5.1” × 3.0”) |
| Weight | 0.95kg (2.09lb) |
| Working Environment/Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
Downloads
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
