Fortinet FortiSwitch FS-148F Ethernet Switch - 48 Ports - Manageable - 2 Layer Supported - Modular - 57 W Power Consumption - Optical (Fleet Network)
Fortinet FortiSwitch FS-148F Ethernet Switch - 48 Ports - Manageable - 2 Layer Supported - Modular - 57 W Power Consumption - Optical (Fleet Network)
Fortinet FortiSwitch FS-148F Ethernet Switch - 48 Ports - Manageable - 2 Layer Supported - Modular - 57 W Power Consumption - Optical (Fleet Network)
Fortinet FortiSwitch FS-148F Ethernet Switch - 48 Ports - Manageable - 2 Layer Supported - Modular - 57 W Power Consumption - Optical (Fleet Network)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

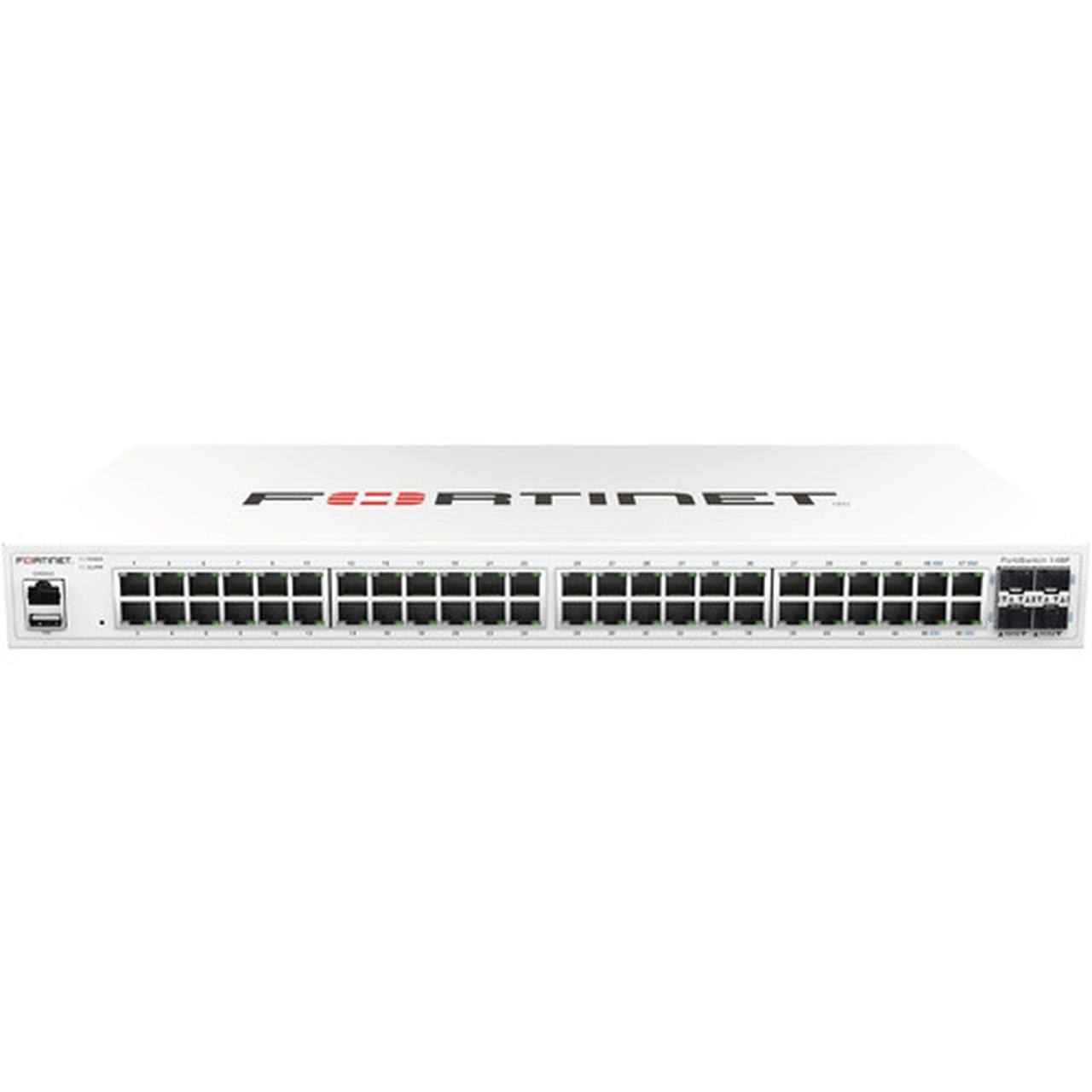

Fortinet FortiSwitch FS-148F Ethernet Switch - 48 Ports - Manageable - 2 Layer Supported - Modular - 57 W Power Consumption - Optical (FS-148F)

(No reviews) Write a Review
$1,663.70
$1,623.10
$1,306.19
(You save $357.51 )
SKU: FS-148F
UPC: 842382190050
Weight: 10.00 LBS

Pre-order! 🗨️📞

  • Designed for installations from desktops to wiring closets
  • Ideal for SD-Branch deployments
  • Centralized security and access management from FortiGate interfaces with FortiLink
  • Optimal for converged network environments; enabling voice, data, and wireless traffic to be delivered across a single network
  • Supports non-FortiLink deployments through onboard GUI, API, or command line configuration
  • Up to 48 ports in a compact 1 RU form factor
  • Stackable up to 300 switches per FortiGate, depending on model
  • Supports Wire-speed switching and Store and Forward forwarding mode
    Marketing Information: The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.

    Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

    Security Fabric Integration through FortiLink

    FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

    Total Number of Network Ports: 48
    Modular: Yes
    Port/Expansion Slot Details:
    • 48 x Gigabit Ethernet Network
    • 4 x 10 Gigabit Ethernet Expansion Slot

    Media Type Supported:
    • Optical Fiber
    • Twisted Pair

    Ethernet Technology:
    • Gigabit Ethernet
    • 10 Gigabit Ethernet

    Network Technology:
    • 10/100/1000Base-T
    • 10GBase-X

    Number of Total Expansion Slots: 4
    Expansion Slot Type: SFP+
    Number of SFP+ Slots: 4
    Layer Supported: 2
    Manageable: Yes
    PoE (RJ-45) Port: No
    Power Source: Power Supply
    Redundant Power Supply Supported: No
    Number of Power Supplies Supported: 1
    Power Consumption: 57 W
    Compatible Rack Unit: 1U
    Form Factor: Rack-mountable
    Height: 1.73" (43.94 mm)
    Width: 17.32" (439.93 mm)
    Depth: 10.24" (260.10 mm)
    Weight (Approximate): 3.46 kg
    Environmentally Friendly: Yes
    Country of Origin: Taiwan
    Limited Warranty: Lifetime

[custom-specifications]

Specifications
Manufacturer: Fortinet, Inc
Manufacturer Part Number: FS-148F
Manufacturer Website Address: http://www.fortinet.com
Brand Name: Fortinet
Product Line: FortiSwitch
Product Series: 100
Product Model: FS-148F
Product Name: FortiSwitch FS-148F Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: Yes
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair

Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet

Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: No
Number of Power Supplies Supported: 1
Power Consumption: 57 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17.32" (439.93 mm)
Depth: 10.24" (260.10 mm)
Weight (Approximate): 3.46 kg
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime

[/custom-specifications]
