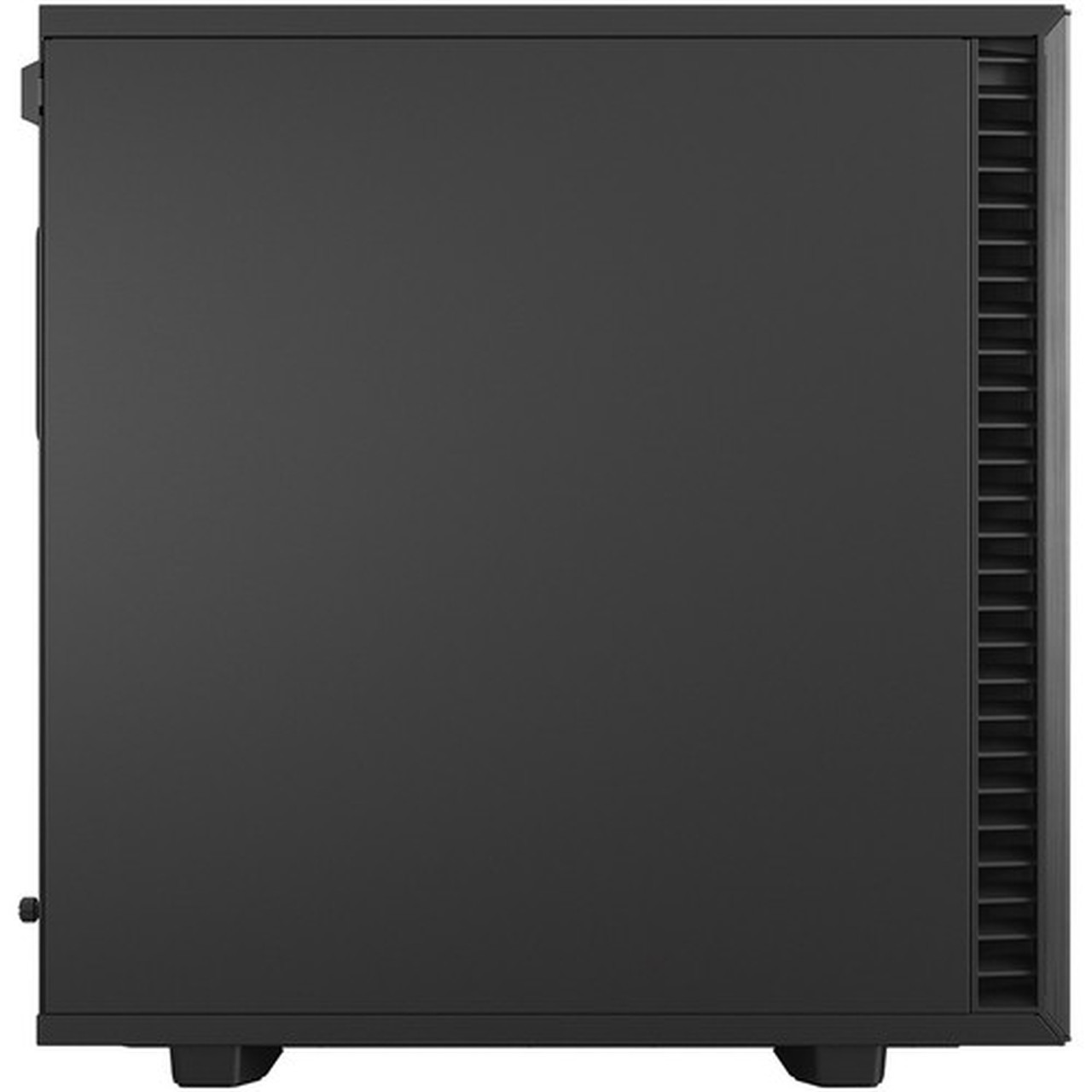

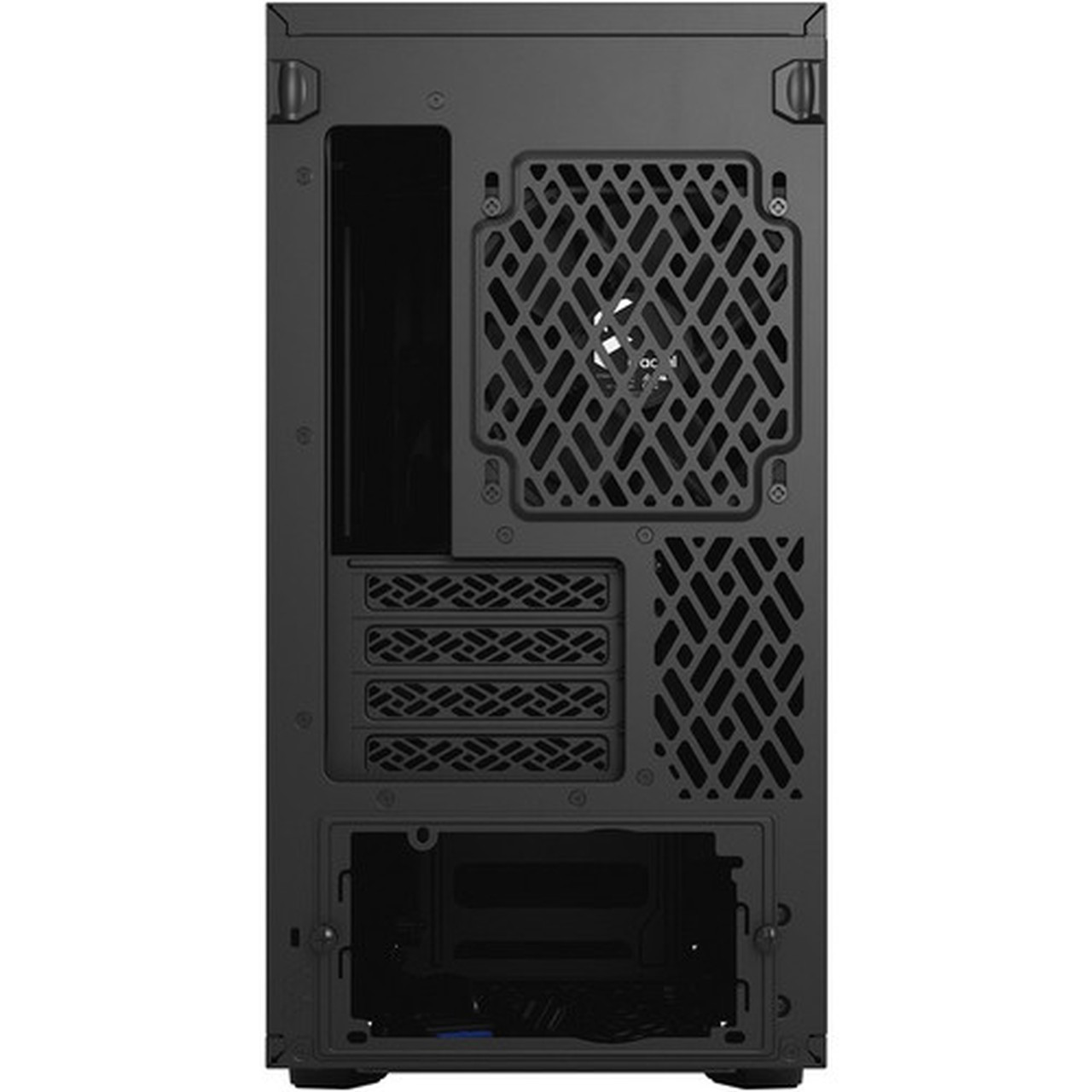

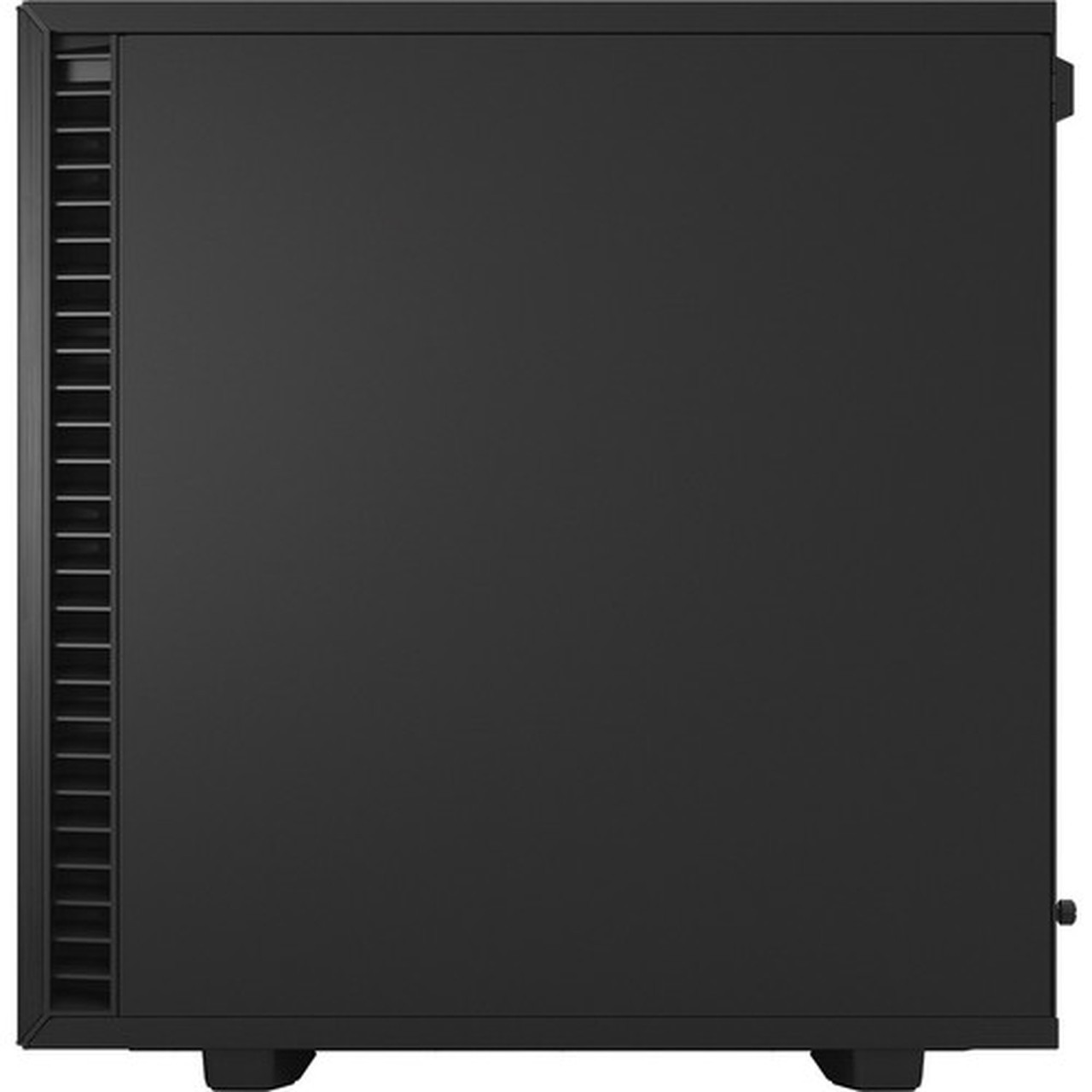

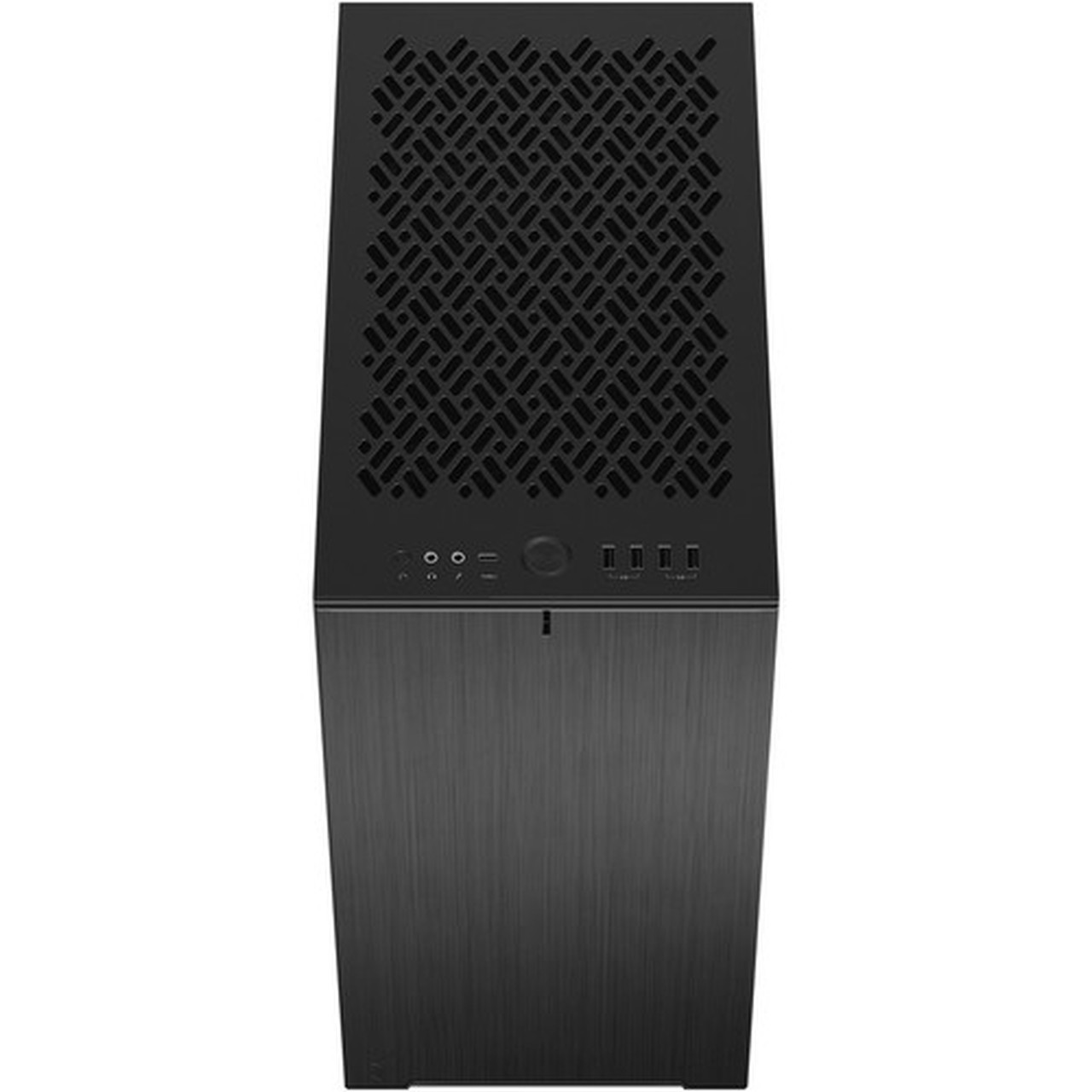

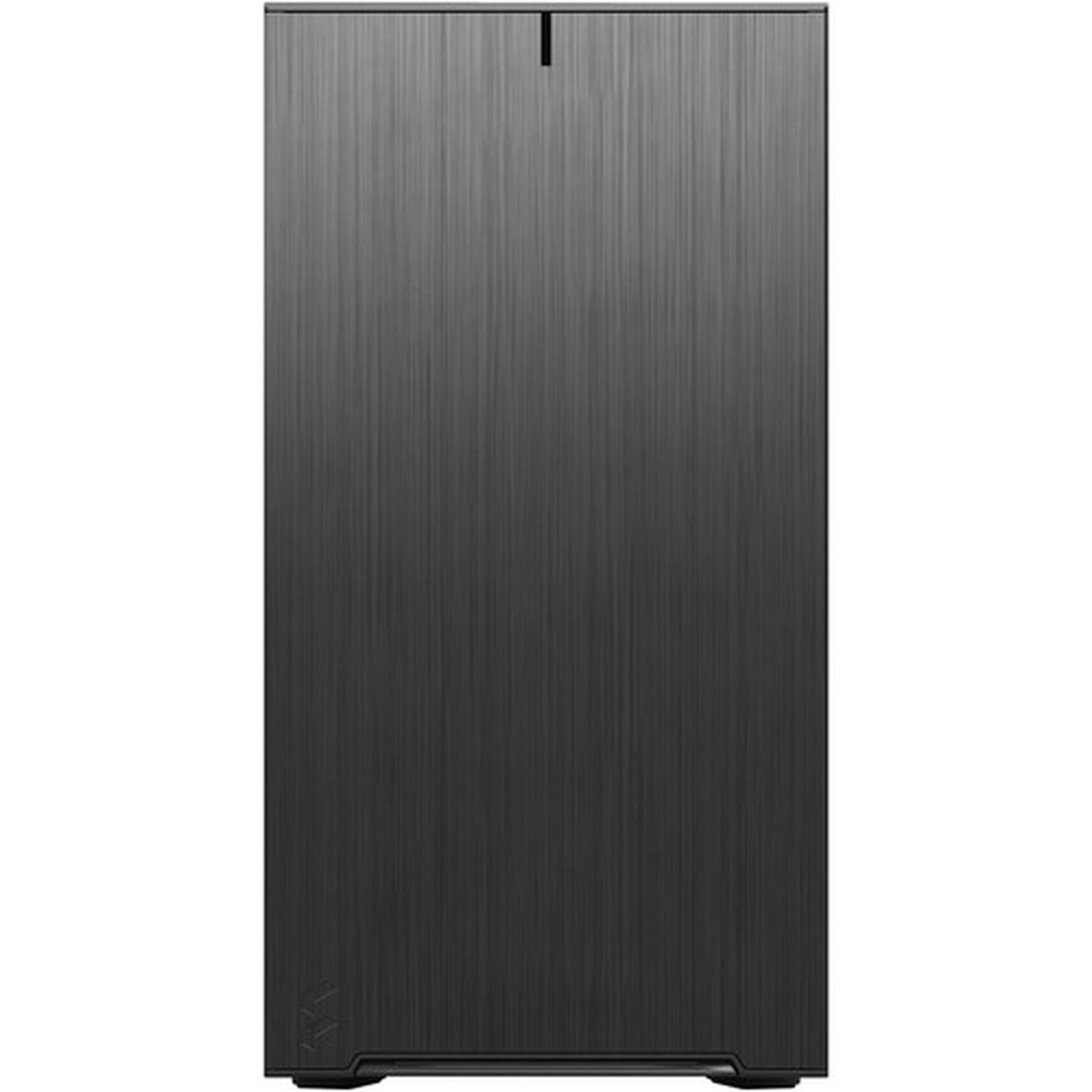

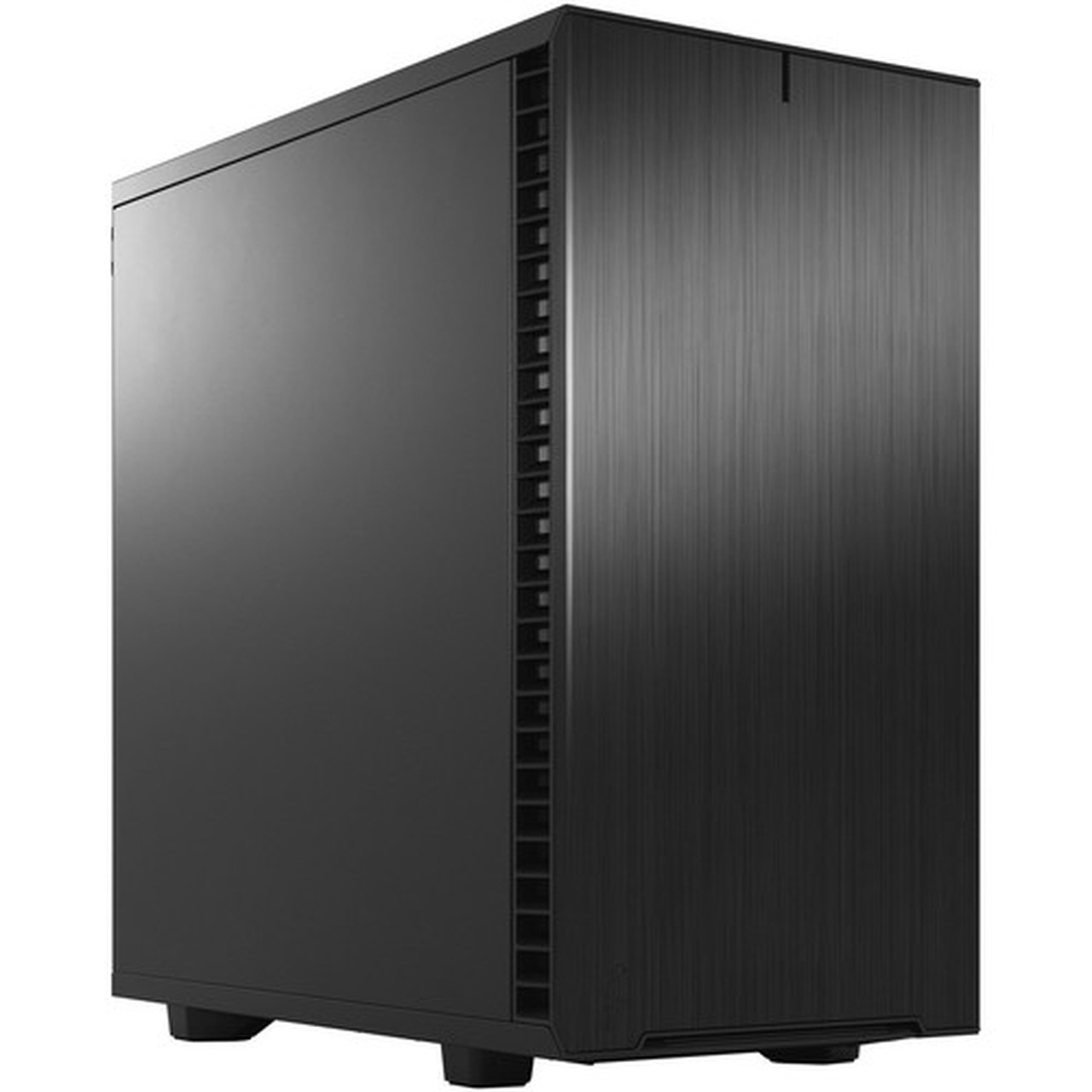

Fractal Design Define 7 Mini Computer Case - Tower - Black Solid - Steel, Brushed Aluminum - 6 x Bay - 2 x 4.72" (120 mm) x Fan(s) - 0 (FD-C-DEF7M-01)
- Define 7 Mini Computer Case
- User Manual
- Accessory Box
- Ventilated Top Panel
Marketing Information:
Re-defining balance.
he Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor. Its compact yet spacious interior can accommodate mATX and Mini ITX motherboards, and the option to use a GPU up to 331 mm with a 240 mm radiator in the top.
Motherboard Supported: Mini ATX,Mini ITX,Mini DTX
Number of Fans Supported: 7
Number of Fans Installed: 2
Installed Fan Size: 4.72" (120 mm)
Number of External 5.25" Bays: 0
Number of Internal 5.25" Bays: 0
Number of Internal 2.5" Bays: 4
Number of Internal 2.5"/3.5" Bays: 2
Number of Total Expansion Bays: 6
Total Number of Expansion Slots: 9
Total Number of USB Ports: 3
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Power Supply Installed: No
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 0
Color Family: Black
Product Color: Black Solid
Product Material: Steel,Brushed Aluminum
Cooler Type: Fan Cooler
Form Factor: Tower
Maximum CPU Cooler Height: 6.57" (167 mm)
Maximum PSU Length: 6.50" (165 mm)
Height: 15.98" (406 mm)
Width: 8.07" (205 mm)
Depth: 15.71" (399 mm)
Weight (Approximate): 7.49 kg
Package Contents:
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- Total 6 expansion bays are sufficient to add ample amount of computing hardware for a dignified configuration
- Tower structure grants ample space for more hardware components
[custom-specifications]
| Specifications | |
| Manufacturer | Fractal Design |
| Manufacturer Part Number | FD-C-DEF7M-01 |
| Manufacturer Website Address | http://www.fractal-design.com |
| Brand Name | Fractal Design |
| Product Line | Define 7 Mini |
| Product Name | Define 7 Mini Computer Case |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Mini ATX,Mini ITX,Mini DTX |
| Number of Fans Supported | 7 |
| Number of Fans Installed | 2 |
| Installed Fan Size | 4.72" (120 mm) |
| Bays | |
| Number of External 5.25" Bays | 0 |
| Number of Internal 5.25" Bays | 0 |
| Number of Internal 2.5" Bays | 4 |
| Number of Internal 2.5"/3.5" Bays | 2 |
| Number of Total Expansion Bays | 6 |
| I/O Expansions | |
| Total Number of Expansion Slots | 9 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Power Description | |
| Power Supply Installed | No |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 0 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Solid |
| Product Material | Steel,Brushed Aluminum |
| Cooler Type | Fan Cooler |
| Form Factor | Tower |
| Maximum CPU Cooler Height | 6.57" (167 mm) |
| Maximum PSU Length | 6.50" (165 mm) |
| Height | 15.98" (406 mm) |
| Width | 8.07" (205 mm) |
| Depth | 15.71" (399 mm) |
| Weight (Approximate) | 7.49 kg |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
