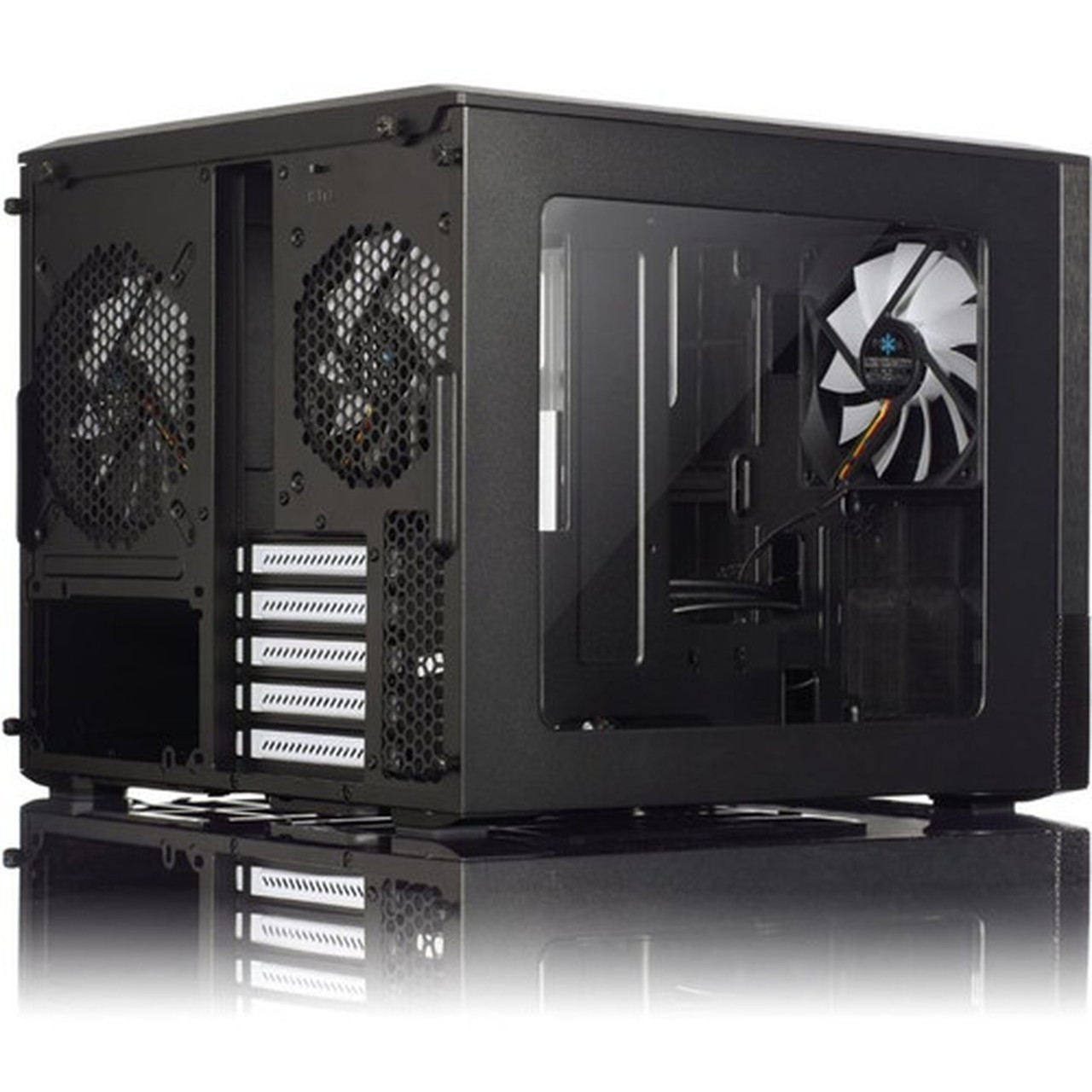

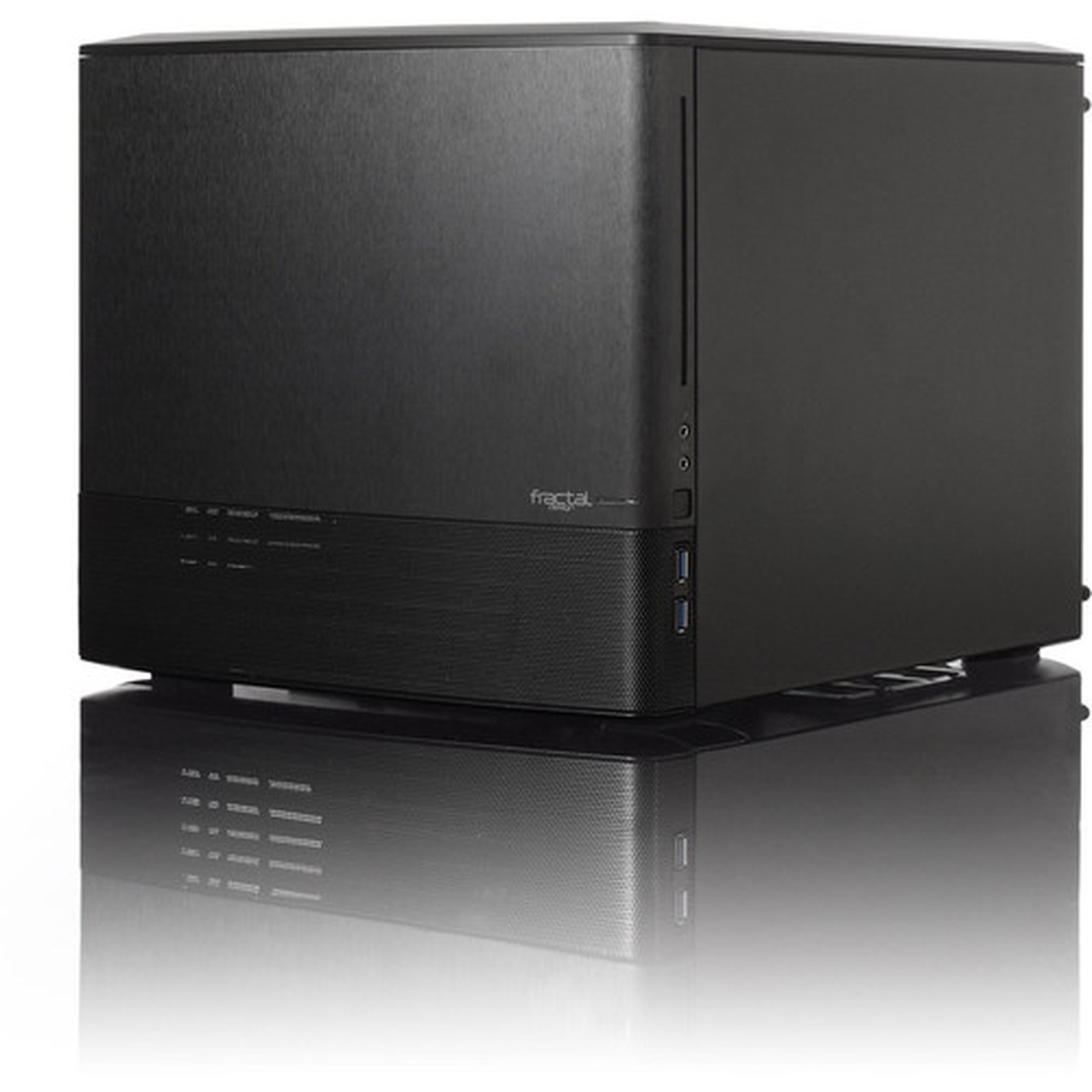

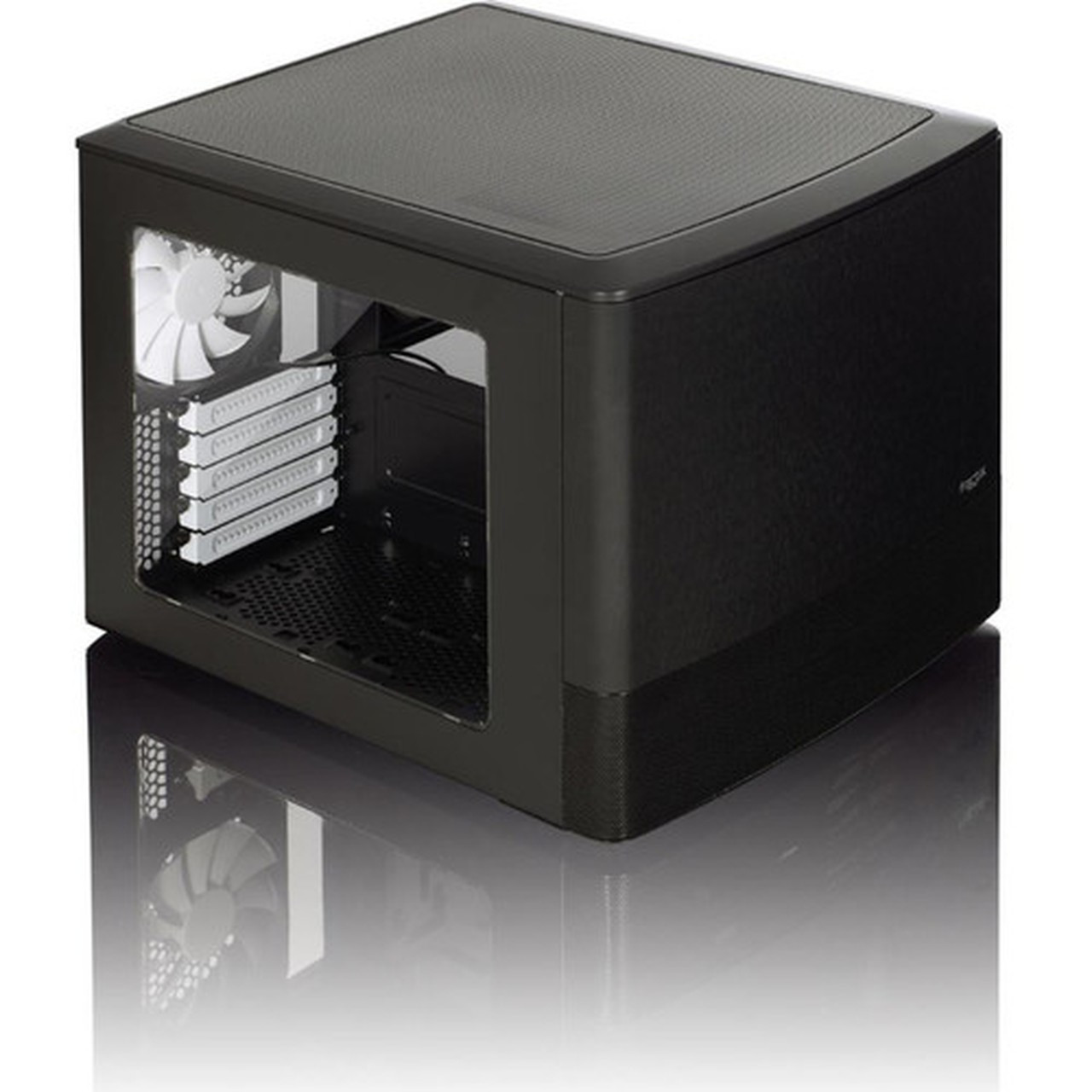

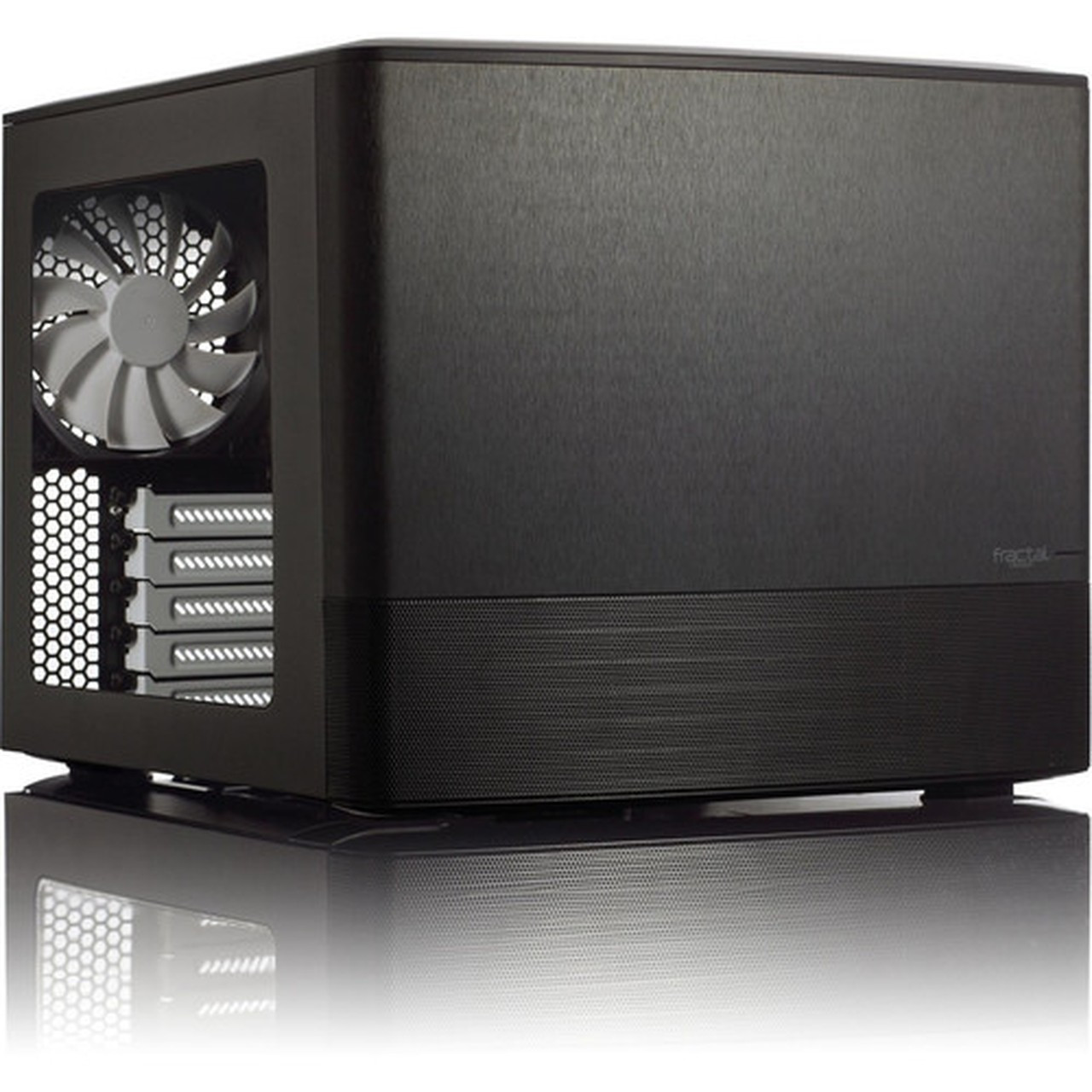

Fractal Design Node 804 Computer Case - Cube - Black - Aluminum - 12 x Bay - 3 x 4.72" (120 mm) x Fan(s) Installed - Micro ATX, Mini - (FD-CA-NODE-804-BL-W)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Marketing Information:
The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.
The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.
The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed.
Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives.
The Flexibility Of This Case Really Gives The Users The Possibility To Create Their Optimal System Build.
Motherboard Supported: Micro ATX,Mini ITX
Number of Fans Supported: 10
Number of Fans Installed: 3
Fan Size Supported: 4.72" (120 mm),5.51" (140 mm)
Installed Fan Size: 4.72" (120 mm)
Features: Clear Side Panel,Fan Speed Controller,Cable Management
Number of Internal 3.5" Bays: 10
Number of Internal 2.5" Bays: 2
Number of Total Expansion Bays: 12
Total Number of Expansion Slots: 5
Total Number of USB Ports: 2
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Power Supply Installed: No
Number of Power Supplies Supported: 1
Color Family: Black
Product Color: Black
Product Material: Aluminum
Cooler Type: Liquid Cooler
Form Factor: Cube
Height: 12.09" (307 mm)
Width: 13.54" (344 mm)
Depth: 15.31" (389 mm)
Weight (Approximate): 6 kg
Limited Warranty: 2 Year
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- Total 10 x 3.5" & 2 x 2.5" internal bays; ample for the demandable computing
- Handy configuration cube offers quick upgrades and saves time and maintenance cost
[custom-specifications]
Specifications | |
---|---|
Manufacturer | Fractal Design |
Manufacturer Part Number | FD-CA-NODE-804-BL-W |
Manufacturer Website Address | http://www.fractal-design.com |
Brand Name | Fractal Design |
Product Line | Node |
Product Model | 804 |
Product Name | Node 804 Computer Case |
Product Type | Computer Case | Technical Information |
Motherboard Supported | Micro ATX,Mini ITX |
Number of Fans Supported | 10 |
Number of Fans Installed | 3 |
Fan Size Supported | 4.72" (120 mm),5.51" (140 mm) |
Installed Fan Size | 4.72" (120 mm) |
Features | Clear Side Panel,Fan Speed Controller,Cable Management | Bays |
Number of Internal 3.5" Bays | 10 |
Number of Internal 2.5" Bays | 2 |
Number of Total Expansion Bays | 12 | I/O Expansions |
Total Number of Expansion Slots | 5 | Interfaces/Ports |
Total Number of USB Ports | 2 |
Total Number of Audio In Ports | 1 |
Total Number of Audio Out Ports | 1 | Power Description |
Power Supply Installed | No |
Number of Power Supplies Supported | 1 | Physical Characteristics |
Color Family | Black |
Product Color | Black |
Product Material | Aluminum |
Cooler Type | Liquid Cooler |
Form Factor | Cube |
Height | 12.09" (307 mm) |
Width | 13.54" (344 mm) |
Depth | 15.31" (389 mm) |
Weight (Approximate) | 6 kg | Warranty |
Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
2 Year
