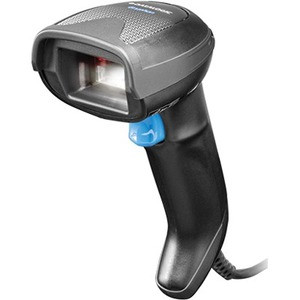

Datalogic Gryphon 4500 GD4590 Handheld Barcode Scanner Cable Connectivity Laser Imager Area Omni Directional USB Keyboard GD4590-BK-B-HD
Write a Review
Datalogic
Datalogic Gryphon 4500 GD4590 Handheld Barcode Scanner Cable Connectivity Laser Imager Area Omni Directional USB Keyboard GD4590-BK-B-HD
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Auto discriminates all standard 1D codes including GS1 DataBar linear codes.
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Dot Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Postal Codes:
Stacked Codes:
Digital Watermarking:
Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanner Range: High Density
Scanning Distance: 15.70" (398.78 mm)
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 35 in/s (889 mm/s)
Image Formats: BMP,JPEG,TIFF
Maximum Ambient Light: 100000 lux
Drop Specification:
Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 4 mil (0.10 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 16kV
Features: Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design
Host Interface: Keyboard Wedge,Multi-interface,USB,Serial
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: Black
Product Color: Black
Durability: Drop Resistant
Weight (Approximate): 5.68 oz (161 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy
- Laser scan engine guarantees rapid error free data entry
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GD4590-BK-B-HD |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Gryphon I |
| Product Series | GD4500 |
| Product Model | GD4590 |
| Product Name | Gryphon I GD4590 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Postal Codes:
Stacked Codes:
Digital Watermarking:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | High Density |
| Scanning Distance | 15.70" (398.78 mm) |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 4 mil (0.10 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | Keyboard Wedge,Multi-interface,USB,Serial |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy |
[/custom-specifications]
[custom-options]
| Product | Datalogic 11-0362 Multi Purpose Scanner Holder - Gray |
| SKU | 11-0362 |
| Sale Price | $17.12 |
| Product | Datalogic STD-G041-WH Basic Stand, G041, White - White |
| SKU | STD-G041-WH |
| Sale Price | $45.91 |
| Product | Datalogic Desktop/Wall Mount for Scanner - White |
| SKU | HLD-G041-WH |
| Sale Price | $20.70 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
Covered by Manufacturer| Qty | Price | Available |
|---|
