- PDU distributes AC power to multiple servers and balances the load on the servers
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
Marketing Information: Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.
Benefits
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
PDU Type: BasicPlug/Connector Type: NEMA 5-20PPlug/Connector Detail: 1 x NEMA 5-20PReceptacle Type: NEMA 5-20RReceptacle Detail: 24 x NEMA 5-20RInput Voltage: 120 V ACInput Voltage Range: 100 V AC - 120 V ACOutput Voltage: 120 V ACPower Rating (Watt): 1.90 kWInput Current: 20 AInput Frequency: 60 HzProduct Color: Black Powder CoatMounting Orientation: VerticalMount Type: - Rack-mountable
- Cabinet-mountable
Form Factor: VerticalCord Length: 10 ftWidth: 2" (50.80 mm)Depth: 2" (50.80 mm)Length: 66.25" (1682.75 mm)Minimum Operating Temperature: 50°F (10°C)Maximum Operating Temperature: 113°F (45°C)Package Contents: - rPDU JBN242-102D20ST5 24-Outlets PDU
- 7938 Vertical Mounting Bracket Kit
Application/Usage: - IT Equipment
- Server Rack/Cabinet
Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 3 YearAdditional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
[custom-specifications]
SpecificationsManufacturer: Vertiv
Manufacturer Part Number: 11712VH
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: Geist
Product Series: rPDU
Product Model: JBN242-102D20ST5

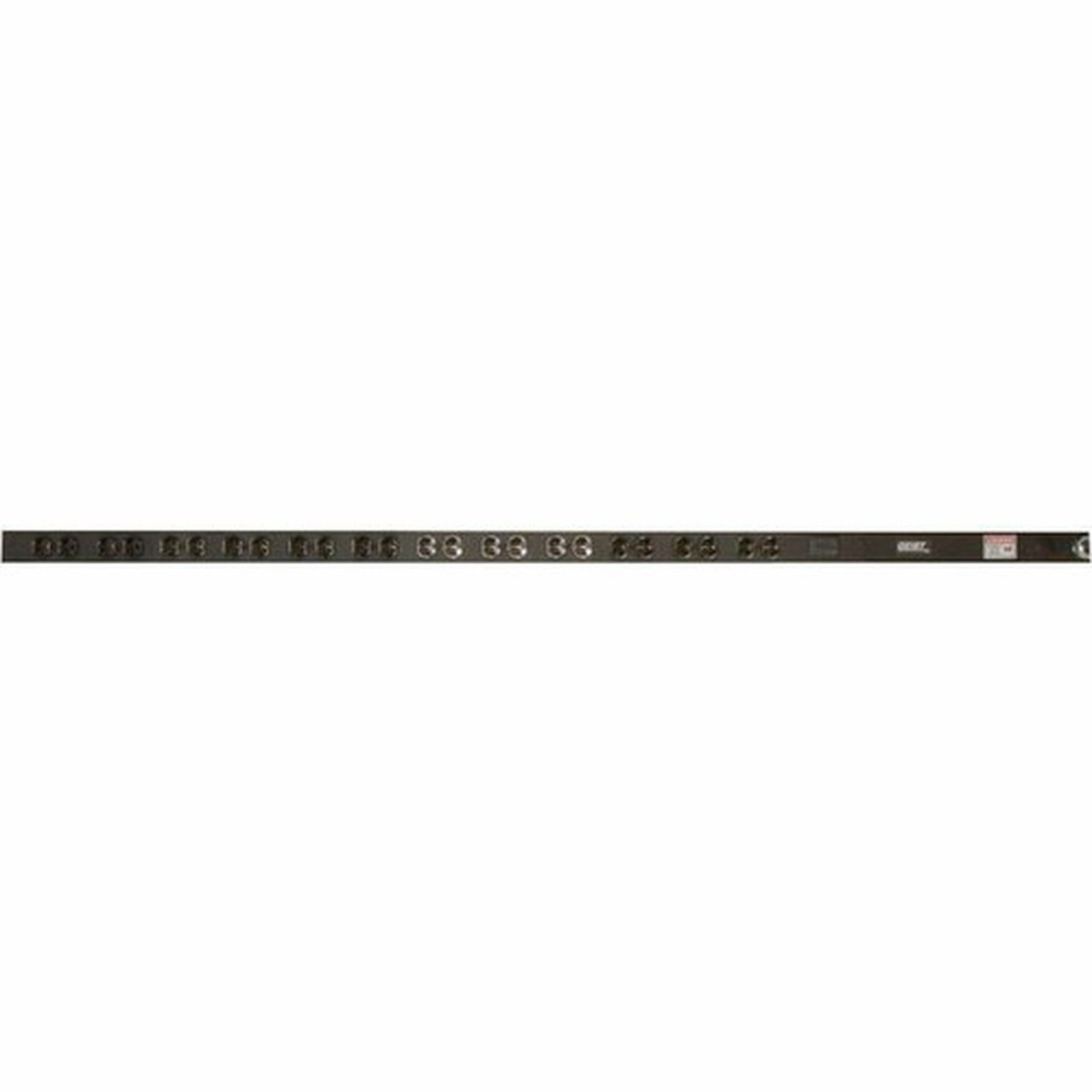

Product Name: rPDU JBN242-102D20ST5 24-Outlets PDU
Product Type: PDU
Technical InformationPDU Type: Basic
Plug/Connector Type: NEMA 5-20P
Plug/Connector Detail: 1 x NEMA 5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Power DescriptionInput Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1.90 kW
Input Current: 20 A
Input Frequency: 60 Hz
Physical CharacteristicsProduct Color: Black Powder Coat
Mounting Orientation: Vertical
Mount Type:
- Rack-mountable
- Cabinet-mountable
Form Factor: Vertical
Cord Length: 10 ft
Width: 2" (50.80 mm)
Depth: 2" (50.80 mm)
Length: 66.25" (1682.75 mm)
Environmental ConditionsMinimum Operating Temperature: 50°F (10°C)
Maximum Operating Temperature: 113°F (45°C)
MiscellaneousPackage Contents:
- rPDU JBN242-102D20ST5 24-Outlets PDU
- 7938 Vertical Mounting Bracket Kit
Application/Usage:
- IT Equipment
- Server Rack/Cabinet
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
TAA Compliant: Yes
WarrantyLimited Warranty: 3 Year
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
