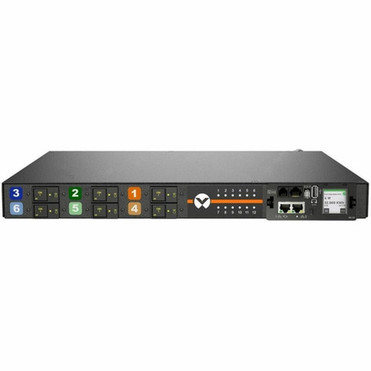

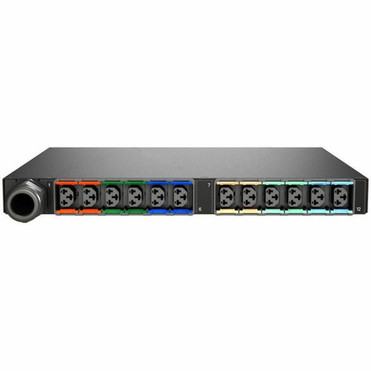

Geist rPDU MNR5M1R6-12CF13-3TL56A0H10-S 12-Outlets PDU - Monitored - NEMA L22-30P - 12 x Combination C13/C19 - 230 V AC - Overcurrent (VP6N31A4)
Write a Review
Geist
Geist rPDU MNR5M1R6-12CF13-3TL56A0H10-S 12-Outlets PDU - Monitored - NEMA L22-30P - 12 x Combination C13/C19 - 230 V AC - Overcurrent (VP6N31A4)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Type: NEMA L22-30P
Plug/Connector Detail: 1 x NEMA L22-30P
Receptacle Type: Combination C13/C19
Receptacle Detail: 12 x Combination C13/C19
Protection Type: Overcurrent Protection,Single Pole
Features: LED Display,Touch Screen Display
Load Capacity (Watt): 17.20 kW
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC,346 V AC - 415 V AC
Output Voltage: 240 V AC
Power Rating (Watt): 17.20 kW
Input Current: 30 A
Input Frequency: 60 Hz
Management:
Network (RJ-45): Yes
Product Color: Black Powder Coat
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Cord Length: 10 ft (3.05 m)
Height: 1.72" (43.69 mm)
Width: 17" (431.80 mm)
Depth: 12" (304.80 mm)
Maximum Operating Temperature: 140°F (60°C)
Application/Usage: IT Equipment
Country of Origin: United States
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Provide circuit protection and easy configuration for trouble-free access
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
[custom-specifications]
| Specifications | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP6N31A4 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | MNR5M1R6-12CF13-3TL56A0H10-S |
| Product Name | rPDU MNR5M1R6-12CF13-3TL56A0H10-S 12-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L22-30P |
| Plug/Connector Detail | 1 x NEMA L22-30P |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 12 x Combination C13/C19 |
| Protection Type | Overcurrent Protection,Single Pole |
| Features | LED Display,Touch Screen Display |
| Load Capacity (Watt) | 17.20 kW |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC,346 V AC - 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 17.20 kW |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Management | |
| Management |
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | Black Powder Coat |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 12" (304.80 mm) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
5 Year
