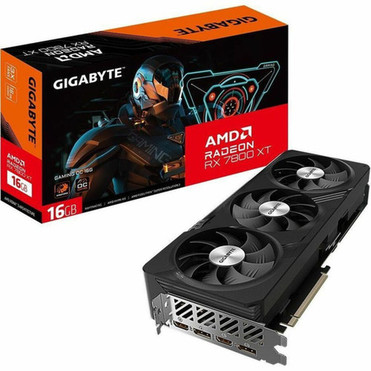

Gigabyte AMD Radeon RX 7800 XT Graphic Card - 16 GB GDDR6 - 7680 x 4320 - 2.25 GHz Game Clock - 2.57 GHz Boost Clock - 256 bit Bus - - (GV-R78XTGAMING OC-16GD)

Marketing Information:

CORE CLOCK

Boost Clock : up to 2565 MHz (Reference card: 2430 MHz)

Game Clock : up to 2254 MHz (Reference card: 2124 MHz)

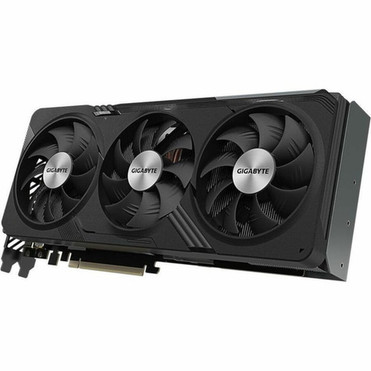

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE COPPER PLATE & HEAT-PIPE

The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

DESIGN CONCEPT | EXCELLENT IN ESSENTIAL | PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

BUILT STRONG | ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

AMD Radeon Anti-Lag

Minimizes input lag so you can game like a champion.

AMD Radeon Boost

Delivers extra performance and responsiveness when you need it most.

AMD Radeon Image Sharpening

Improves in-game visuals with virtually no impact to performance.

AMD Radeon Super Resolution

In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.

AMD Noise Suppression

Reduces background audio noise from your surrounding environment for clearer communication.

AMD Link

Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere

API Supported: DirectX 12 Ultimate,OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

Chipset Manufacturer: AMD

Chipset Line: Radeon

Chipset Series: RX 7800

Chipset Model: RX 7800 XT

GPU Boost Clock: 2.57 GHz

Game Clock: 2.25 GHz

Standard Memory: 16 GB

Memory Technology: GDDR6

Bus Width: 256 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 2

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 700 W

Power Connector: 2x 8-pin

Form Factor: Plug-in Card

Cooler Type: Active Cooler

Height: 2.20" (56 mm)

Width: 5.12" (130 mm)

Length: 11.89" (302 mm)

Package Contents:

• Radeon RX 7800 XT GAMING OC 16G Graphic Card
• Quick guide

Platform Supported: PC
