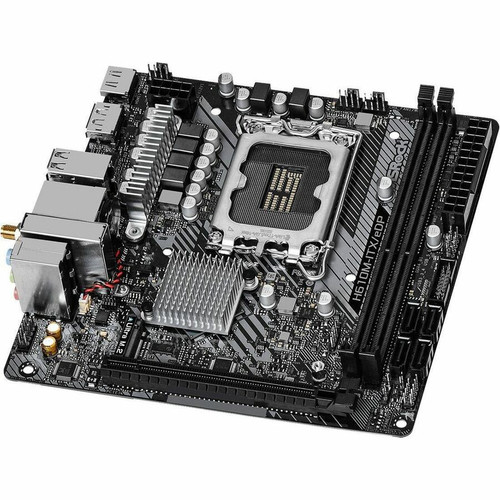

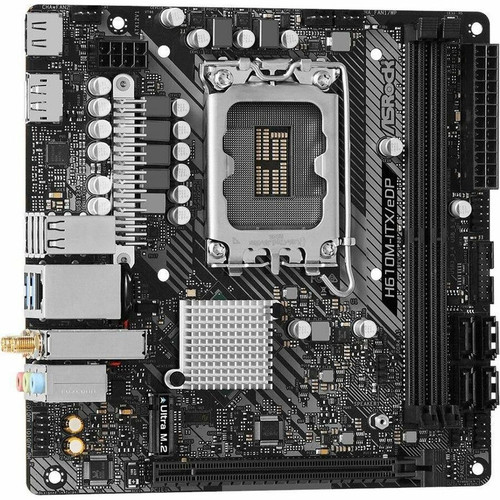

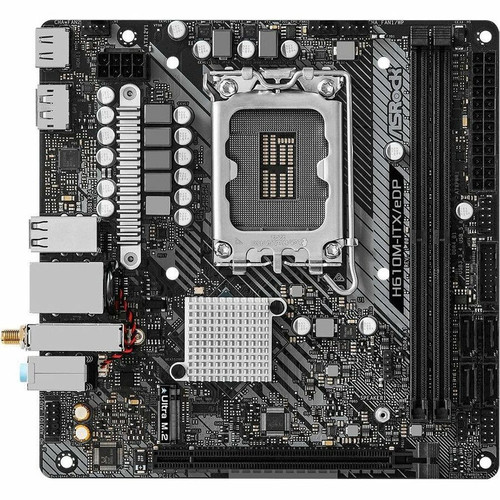

ASRock H610M ITX eDP Mini Desktop Motherboard With Intel Chipset LGA 1700 Socket Supporting Core Processors And Up To 64 GB DDR4 H610M-ITX/EDP

Marketing Information:

Built in eDP Signal Connector Supports ASRock 13.3" Side Panel kit

An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock's exclusive13.3" Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel^®Gigabit LAN

Intel^®LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke

Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Chipset Manufacturer: Intel

Chipset Model: H610

Total Processor Supported: 1

Processor Socket: Socket LGA-1700

Processor Generation Supported: 14th Gen,13th Gen,12th Gen

Processor Supported: Core

Number of Memory Slots: 2

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 64 GB

Memory Speed Supported: 3200 MHz

Memory Technology: DDR4 SDRAM

Controller Type: Serial ATA/600

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.1

Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11a/b/g/n/ac

Total Number of PCI Express Slots: 1

Number of PCI Express x16 Slots: 1

PCI Express Standard: PCI Express 4.0

Total Number of USB Ports: 6

Number of USB 2.0 Ports: 4

Number of USB 3.2 Gen 1 Ports: 2

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 4

Number of Onboard USB 2.0 Ports: 2

Form Factor: Mini ITX

Width: 6.69" (170 mm)

Depth: 6.69" (170 mm)

Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)

Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
