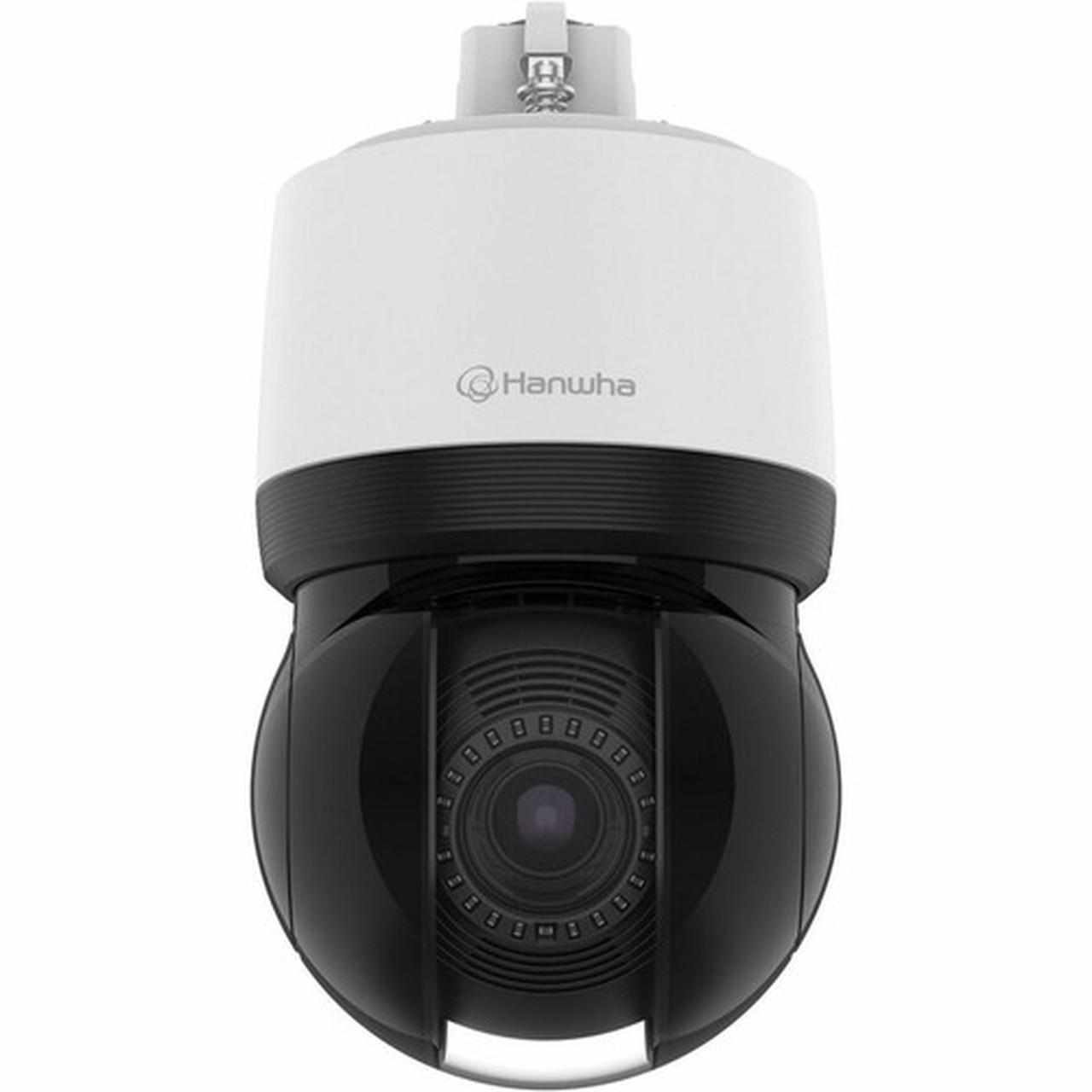

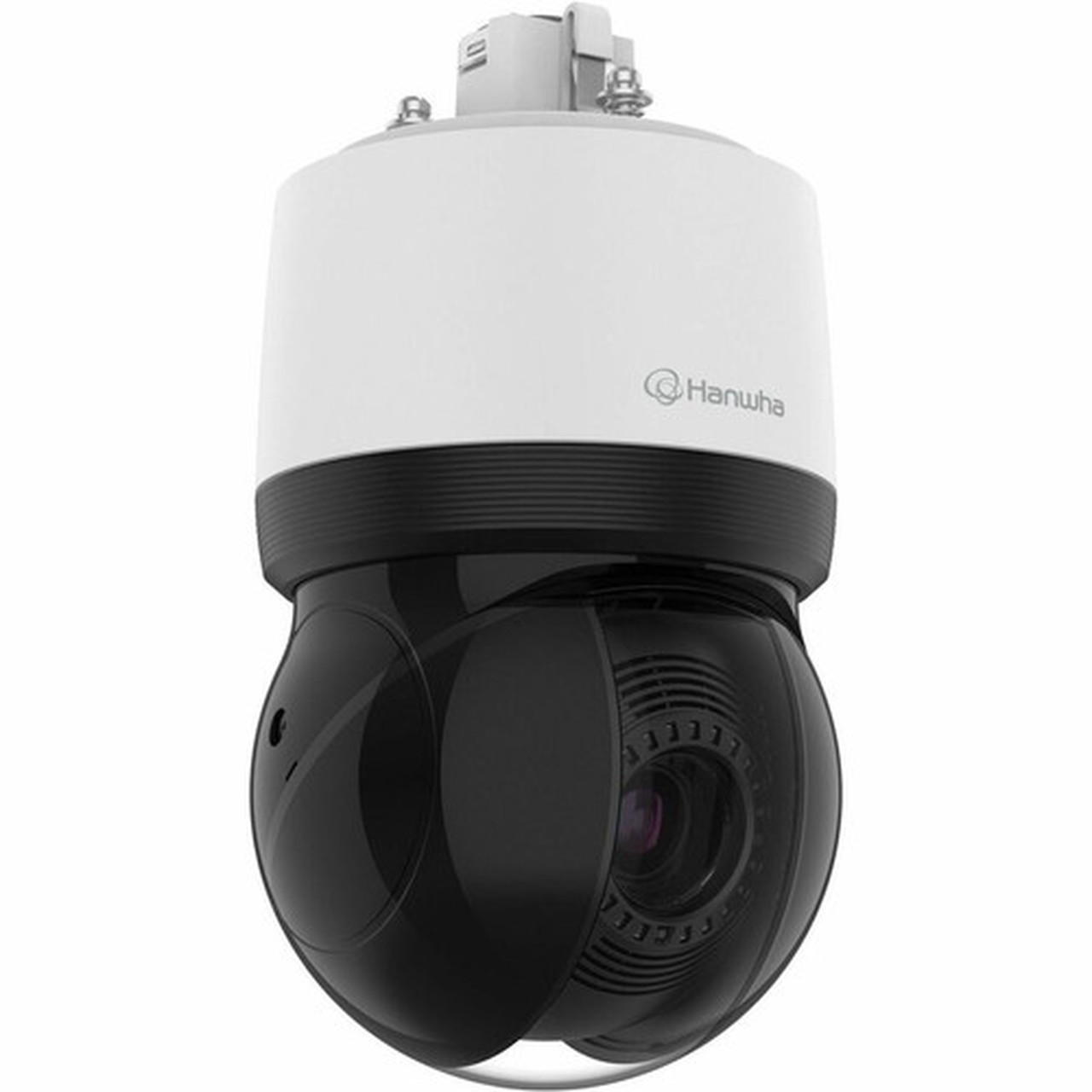

Hanwha XNP-C8253R 6 Megapixel Outdoor Network Camera - Color - Dome - White, Black - 656.17 ft (200 m) Infrared Night Vision - H.264, (XNP-C8253R)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
Hanwha
Hanwha XNP-C8253R 6 Megapixel Outdoor Network Camera - Color - Dome - White, Black - 656.17 ft (200 m) Infrared Night Vision - H.264, (XNP-C8253R)
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 656.17 ft (200 m)
Night Vision Type: Infrared
Image Sensor Type: CMOS
Image Sensor Size: 1/2.8"
Color Supported: Color
Field of View: H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
Effective Camera Resolution: 6 Megapixel
Video Formats: H.264,H.265,MJPEG,H.264M,H.264B,H.264H,H.265M,H.265B,H.265H
Maximum Video Resolution: 3328 x 1872
Maximum Frame Rate: 30 fps
Lens Type: Varifocal
Minimum Focal Length: 5 mm
Maximum Focal Length: 125 mm
Lens Included: Yes
Minimum Aperture: f/3.73
Maximum Aperture: f/1.6
Optical Zoom: 25x
Shortest Shutter Speed: 1/12000 Second
Longest Shutter Speed: 2 Second
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: IPv4,IPv6,TCP/IP,UDP/IP,RTP,UDP,TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,UPnP,Bonjour,LLDP,SRTP,NTCIP,MQTT
Storage Type: Memory Card
Network (RJ-45): Yes
Power Source Type: HPoE
Color Family: Dual Color
Product Color: White,Black
Form Factor: Dome
Diameter: 6.22" (158 mm)
Weight (Approximate): 3.20 kg
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 131°F (55°C)
Maximum Operating Humidity: 95%
Features: Back Light Compensation (BLC),Highlight Compensation (HLC),Wide Dynamic Range,Motion Detection,Defog,Digital Image Stabilization,Digital Noise Reduction,Day/Night,PTZ,Shock Detection
Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
Limited Warranty: 3 Year
- For remote surveillance needs, this network camera is best suited
- Up to 3328 x 1872 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Provides night vision of objects at a distance of up to 656.17 ft (200 m)
[custom-specifications]
| Specifications | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNPC8253R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Hanwha |
| Product Series | X |
| Product Model | XNP-C8253R |
| Product Name | 6MP 25x IR AI PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 656.17 ft (200 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) |
| Effective Camera Resolution | 6 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.264M,H.264B,H.264H,H.265M,H.265B,H.265H |
| Maximum Video Resolution | 3328 x 1872 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5 mm |
| Maximum Focal Length | 125 mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.73 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 25x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP,UDP,TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,UPnP,Bonjour,LLDP,SRTP,NTCIP,MQTT |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | HPoE |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | White,Black |
| Form Factor | Dome |
| Diameter | 6.22" (158 mm) |
| Weight (Approximate) | 3.20 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),Wide Dynamic Range,Motion Detection,Defog,Digital Image Stabilization,Digital Noise Reduction,Day/Night,PTZ,Shock Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
3 Year
