- Honeywell Operational Intelligence provides actionable insights into critical areas such as mobility devices, printer usage, and network connectivity. These insights can be turned into automated workflows that optimize workflow processes for greater productivity.
- Honeywell Printer Edge is a smart, connected printer platform with easy setup, quality output, enhanced security, and the simplicity of a single software toolkit for your printer network.
- Optimized low label and low ribbon warning workflow to predict and reduce downtime.
- New set of a wealth of accessories supports various customer needs.
Marketing Information: The next generation of desktop printers brings powerful performance, reliable connectivity, and easy integration in a compact design to tackle rapidly changing everyday work environments.

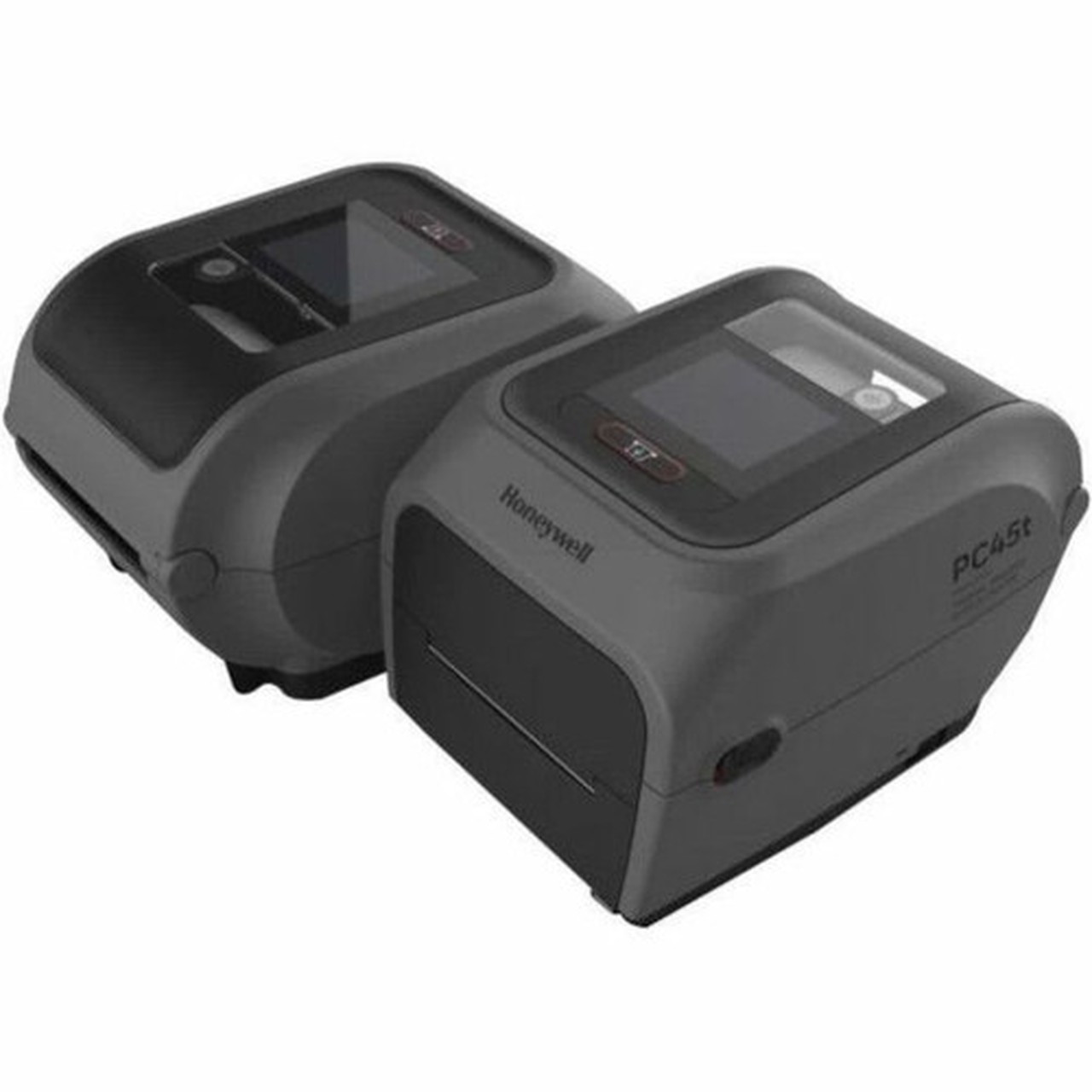

The PC45 family of thermal printers builds upon the successful design of the proven E-class and PC43 printers, offering seamless connectivity, premium performance and reliability. The PC45 offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45 is designed for businesses that invest in solutions and want a durable, stable, secure platform to implement them.
Honeywell Printer Edge™ platform provides a centralized management system for your printer network. Allowing real-time visibility, automated software updates, and enhanced security. This efficient and cost effective solution for businesses looking to optimize printer operations, Honeywell Printer Edge streamlines workflows and helps reduce downtime, making it easier for you to manage costs.
Get connected and stay connected with Wi-Fi 5 and Bluetooth 5.1 LE for continuous productivity. Benefit from WLAN and optional WWAN connectivity for fast data capture allowing for accelerated deployments. With optional low media and low ribbon enabled sensor and RFID, take the guesswork out printer maintenance to avoid unnecessary operational downtime.
Whether on a local server or utilizing the Cloud, the PC45 supports variable network protocols and multiple print languages allowing for easy integration and a seamless transition. Smart Parse technology from Honeywell gives the ability to resize objects, barcodes, or font type without any need to get in on the system backend. Honeywell Operational Intelligence takes it one step further providing remote management capabilities for real-time diagnostics and output performance tracking.
Recommended Use: RFID Label PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 203.20 mm/sMaximum Print Resolution (dpi): 300Maximum Print Width: 4.17"Barcode Symbology Supported: Connectivity Technology: WirelessReal Time Clock: YesApplication/Usage: Features: Self Strip ModuleStandard Memory: 256 MBFlash Memory: 512 MBUSB Host: YesSerial Port: YesUSB: YesNetwork Ready: YesEthernet: YesEthernet Technology: Fast EthernetBluetooth: YesWireless LAN: YesRFID: YesDisplay Screen: YesScreen Size: 4"Display Screen Type: LCDCutter: YesMedia Type: - Gap
- Notch
- Black Mark
- Continuous Label
- Label
- Roll Fed
- Fanfold
- Linered Media
- Receipt
- Wristband
Media Sensor: Paper Low SensorMedia Thickness: 6.3 milMaximum Roll Diameter: 6"Maximum Label Width: 4.49" (114 mm)Language Emulation: - Fingerprint
- IPL
- ZSim2
- ZPL II
- DPL
- XML
- Direct Protocol (DP)
Power Source: AC SupplyOperating Temperature: 32°F (0°C) - 113°F (45°C)Storage Temperature: 68°F (20°C) - 158°F (70°C)Height: 11.24" (285.50 mm)Width: 8.38" (212.90 mm)Depth: 7.07" (179.60 mm)Weight (Approximate): 2.70 kgPower Cable Localization: USPlatform Supported: PCEnergy Star: YesEnvironmentally Friendly: YesEnvironmental Certification: Limited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Honeywell International, Inc
Manufacturer Part Number: PC45T000000201
Manufacturer Website Address: http://www.honeywell.com
Brand Name: Honeywell
Product Series: PC45
Product Model: PC45t
Product Name: PC45t Thermal Transfer Printer
Product Type: Thermal Transfer Printer
Technical InformationRecommended Use: RFID Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 203.20 mm/s
Maximum Print Resolution (dpi): 300
Maximum Print Width: 4.17"
Barcode Symbology Supported:
Connectivity Technology: Wireless
Real Time Clock: Yes
Application/Usage:
Features: Self Strip Module
MemoryStandard Memory: 256 MB
Flash Memory: 512 MB
Interfaces/PortsUSB Host: Yes
Serial Port: Yes
USB: Yes
Network & CommunicationNetwork Ready: Yes
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Wireless LAN: Yes
RFID: Yes
Display & GraphicsDisplay Screen: Yes
Screen Size: 4"
Display Screen Type: LCD
CutterCutter: Yes
Media Types & HandlingMedia Type:
- Gap
- Notch
- Black Mark
- Continuous Label
- Label
- Roll Fed
- Fanfold
- Linered Media
- Receipt
- Wristband
Media Sensor: Paper Low Sensor
Media Thickness: 6.3 mil
Maximum Roll Diameter: 6"
Maximum Label Width: 4.49" (114 mm)
Fonts & EmulationLanguage Emulation:
- Fingerprint
- IPL
- ZSim2
- ZPL II
- DPL
- XML
- Direct Protocol (DP)
Power DescriptionPower Source: AC Supply
Environmental ConditionsOperating Temperature: 32°F (0°C) - 113°F (45°C)
Storage Temperature: 68°F (20°C) - 158°F (70°C)
Physical CharacteristicsHeight: 11.24" (285.50 mm)
Width: 8.38" (212.90 mm)
Depth: 7.07" (179.60 mm)
Weight (Approximate): 2.70 kg
MiscellaneousPower Cable Localization: US
Platform Supported: PC
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: 2 Year
