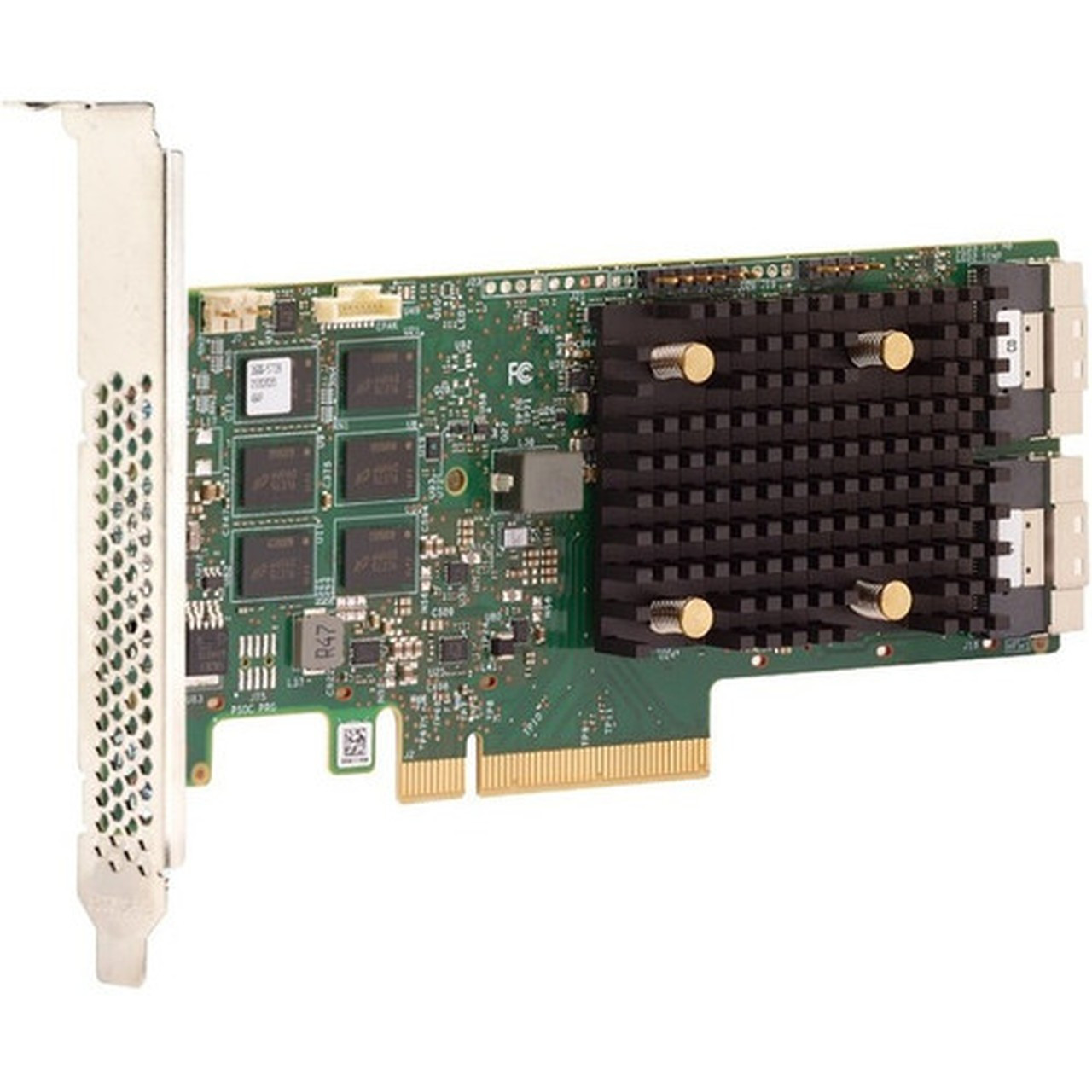

HPE Broadcom MegaRAID MR416i-p SAS Controller - 12Gb/s SAS - PCI Express 4.0 x16 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, (P06367-B21)

Marketing Information:

Key Features | Powerful Performance

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.

2nd Generation Tri-Mode SerDes

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.

With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.

Enhanced Security

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.

Software Supported

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS's including but not limited to Windows, Linux®, and VMware®, full tool suite including command line interface, web-based management, and out-of-band management support.

Host Interface: PCI Express 4.0 x16

Controller Type: 12Gb/s SAS

RAID Supported: Yes

RAID Levels: 0,1,5,6,10,50,60

Device Supported: Server

Cache Memory: 4 GB

Total Number of SAS Ports: 16

Number of SAS Ports (Internal): 16

Form Factor: Plug-in Card

Weight (Approximate): 146 g

Platform Supported: PC
