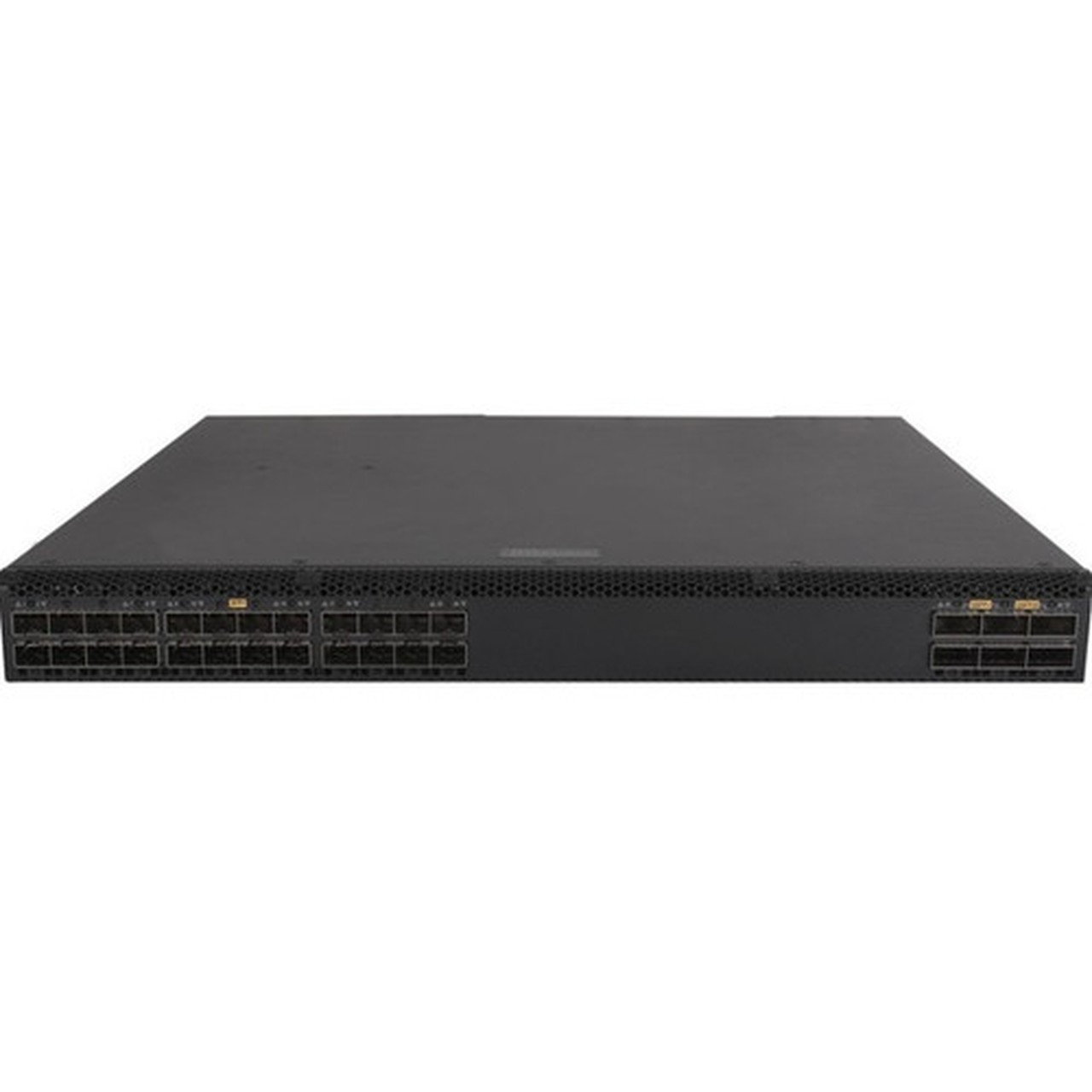

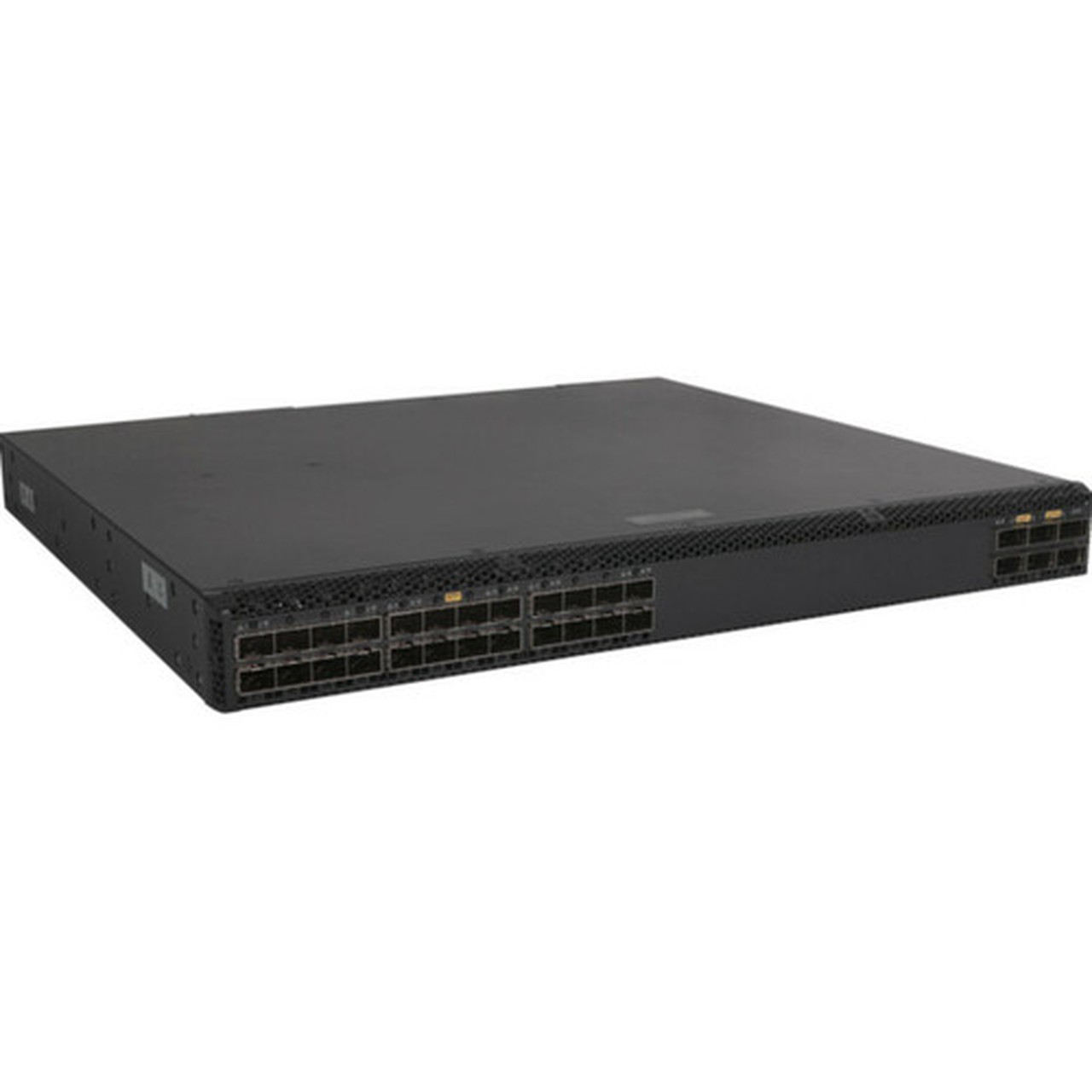

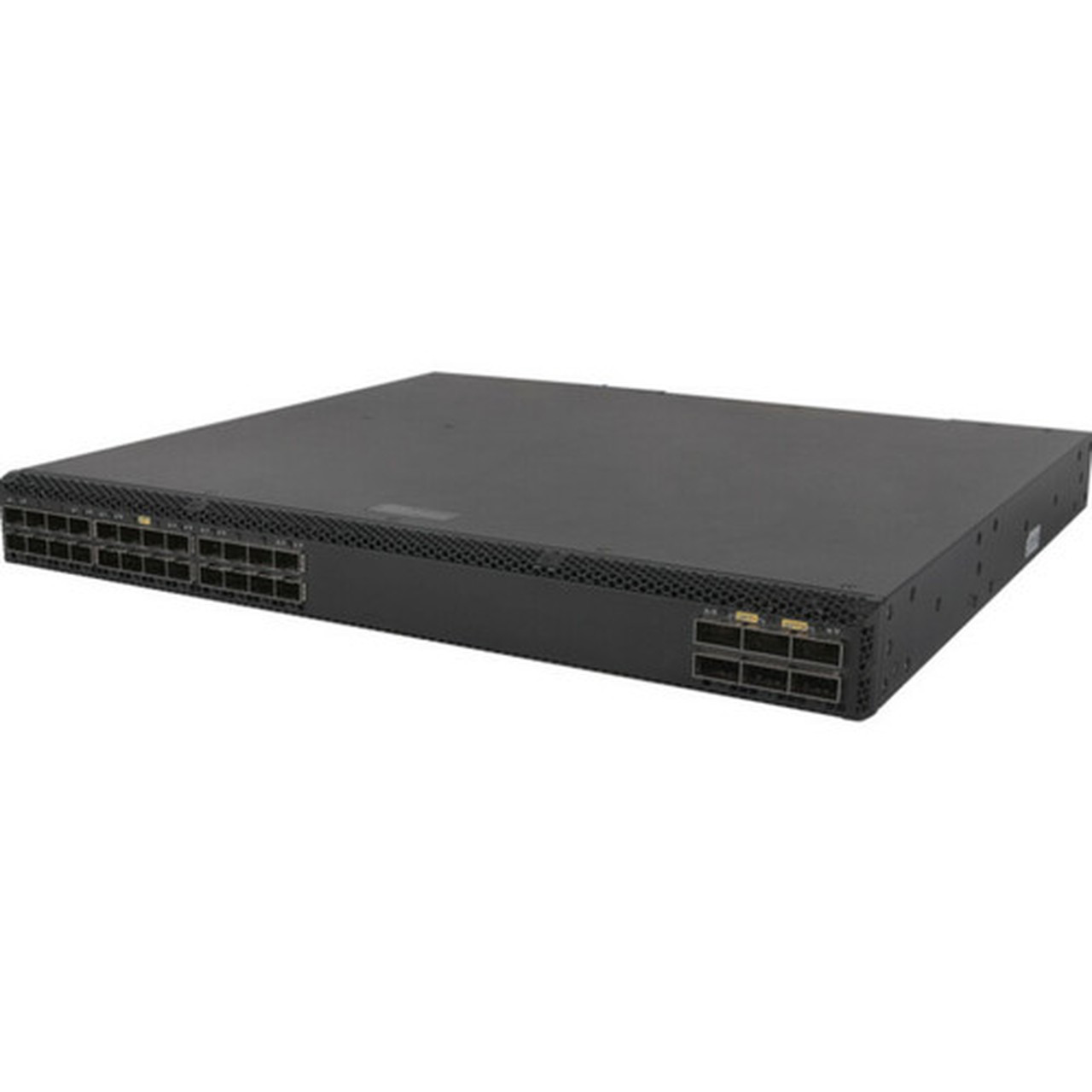

HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch - Manageable - 3 Layer Supported - Modular - Optical Fiber - 1U High - (JL587A)

Marketing Information:

HPE FlexFabric 5710 Switch Series is a family of high-performance, low-latency access switches aimed at providing superior edge device connectivity in modern spine leaf data centers.

HPE FlexFabric 5710 Switch Series is ideally suited for deployment at the server access layer of large and medium-sized enterprise data centers. It delivers lower TCO while enhancing networking performance to support demanding virtualized applications and server-to-server traffic. Resilience and ease of management come hand-in-hand with the FlexFabric 5710. While IRF reduces management complexities, it also delivers agility with < 50 ms convergence time.

Modular: Yes

Port/Expansion Slot Details: 24 x 10 Gigabit Ethernet Expansion Slot,6 x 40 Gigabit Ethernet Expansion Slot

Media Type Supported: Optical Fiber

Ethernet Technology: 10 Gigabit Ethernet,40 Gigabit Ethernet,100 Gigabit Ethernet

Network Technology: 10GBase-X,40GBase-X,100GBase-X

Expansion Slot Type: SFP+,QSFP+,QSFP28

Shared SFP Slot: No

Number of SFP+ Slots: 24

Layer Supported: 3

Manageable: Yes

Power Source: Power Supply

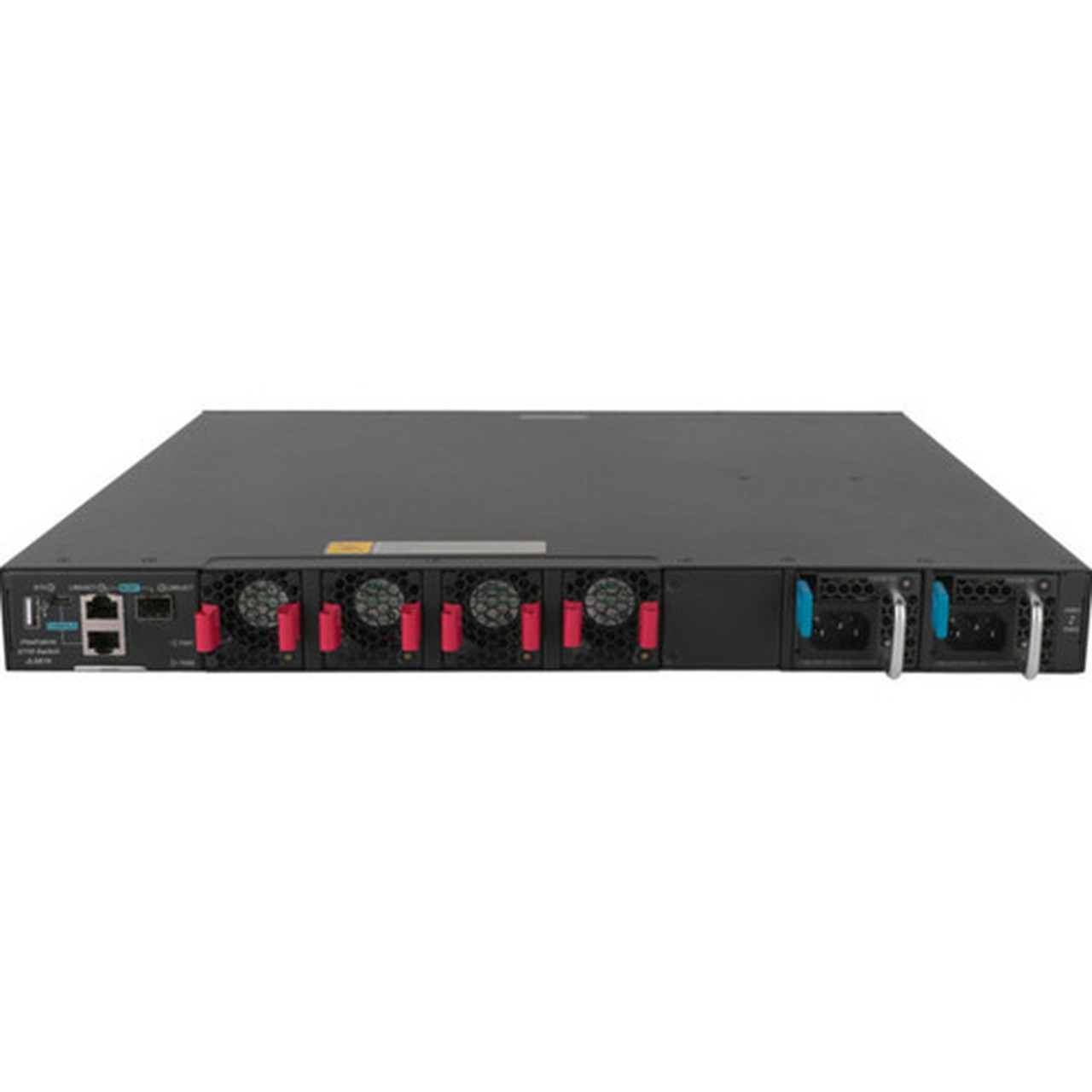

Redundant Power Supply Supported: Yes

Compatible Rack Unit: 1U

Form Factor: Rack-mountable

Height: 1.73" (44 mm)

Width: 17.32" (440 mm)

Depth: 15.75" (400 mm)

Weight (Approximate): 10 kg
