HPE MSA 2060 10GbE iSCSI SFF 46TB Flash Bundle - 24 x HDD Supported - 1843.20 TB Supported HDD Capacity - 12Gb/s SAS - 24 x SSD - TB - (S2E42B)

Marketing Information:

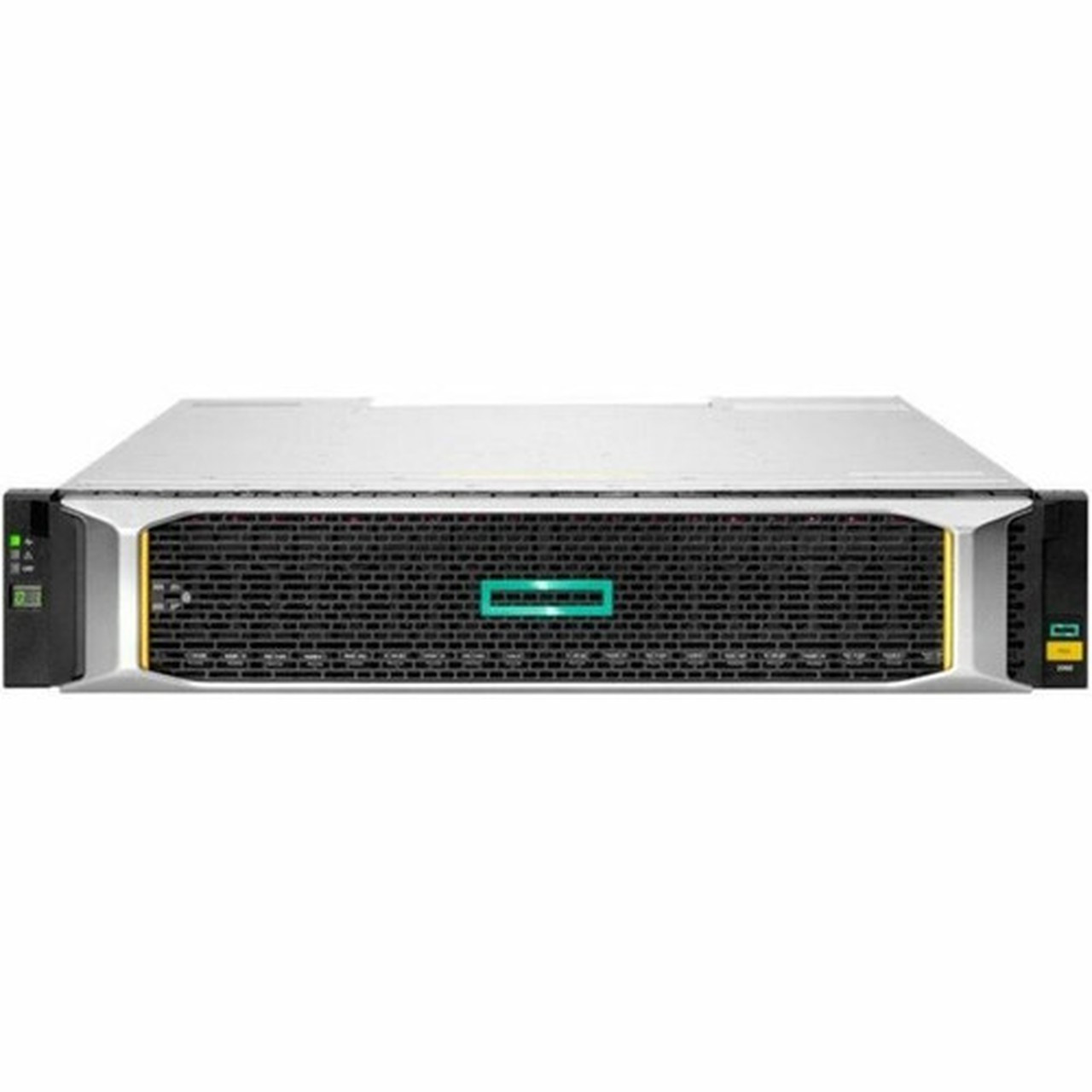

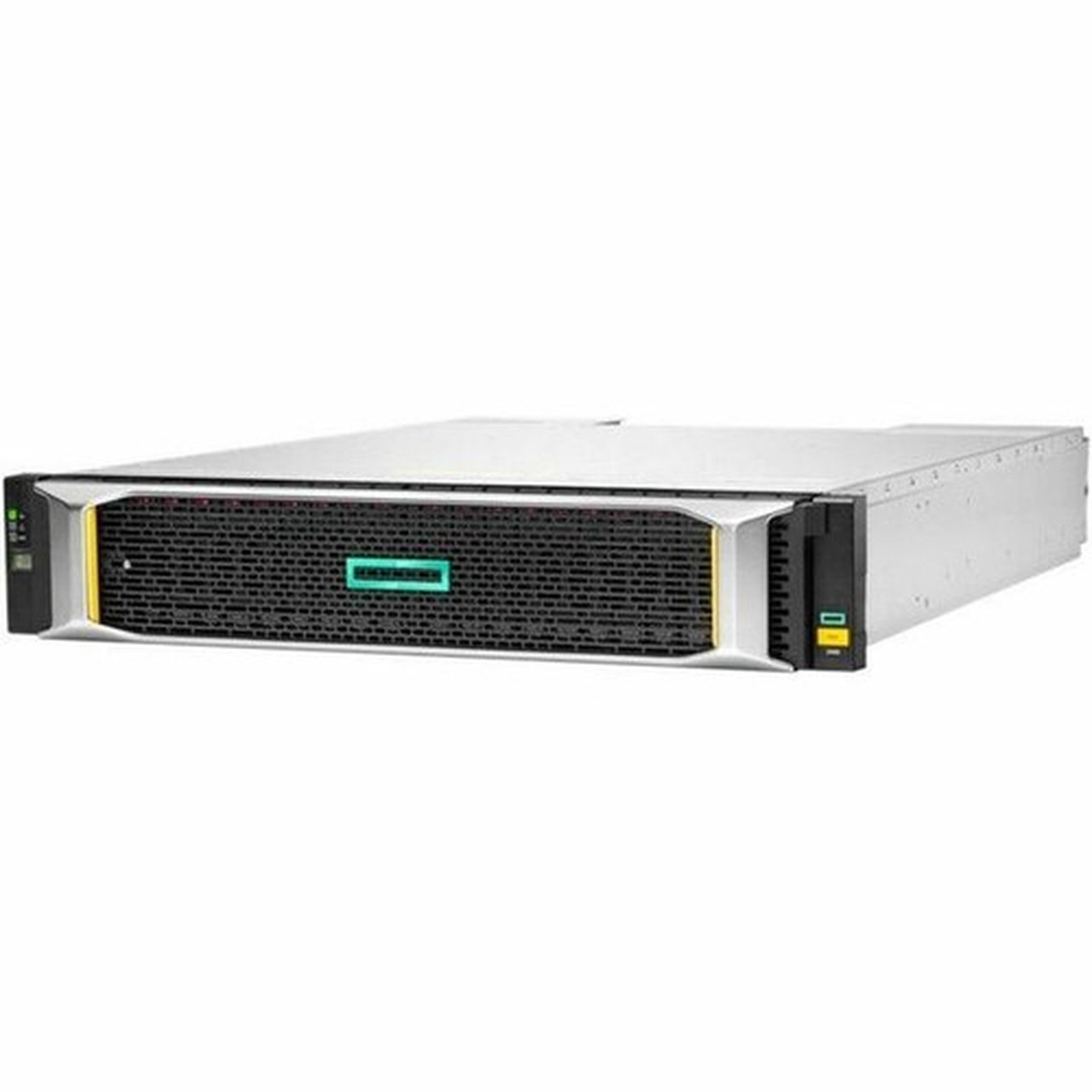

HPE MSA 2060 Storage Array

The HPE MSA 2060 is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don't let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.

Number of Hard Drives Supported: 24

Total Hard Drive Capacity Supported: 1843.20 TB

Hard Drive Interface: 12Gb/s SAS

Number of Solid State Drive Supported: 24

Number of Solid State Drive Installed: 12

Total Solid State Drive Capacity Supported: 1843.20 TB

Total Solid State Drive Capacity Installed: 46 TB

Solid State Drive Configuration: 12 x 3.84TB

Ethernet Technology: 10 Gigabit Ethernet,25 Gigabit Ethernet

Number of Total Expansion Bays: 24

Number of 2.5" Bays: 24

Number of Controllers: 2

Controller Type: Fibre Channel

RAID Supported: Yes

Drive Interface: 12Gb/s SAS

Host Interface: 12Gb/s SAS

Number of Network (RJ-45) Ports: 2

Fibre Channel: Yes

Protocols: SNMP,SMI-S,SSH,SMTP,FTP,SFTP,HTTP,HTTPS,Telnet

Height: 3.50" (88.90 mm)

Width: 17.50" (444.50 mm)

Depth: 20" (508 mm)

Form Factor: Rack-mountable

Rack Height: 2U

Weight (Approximate): 5 kg

Energy Star: Yes

TAA Compliant: Yes
