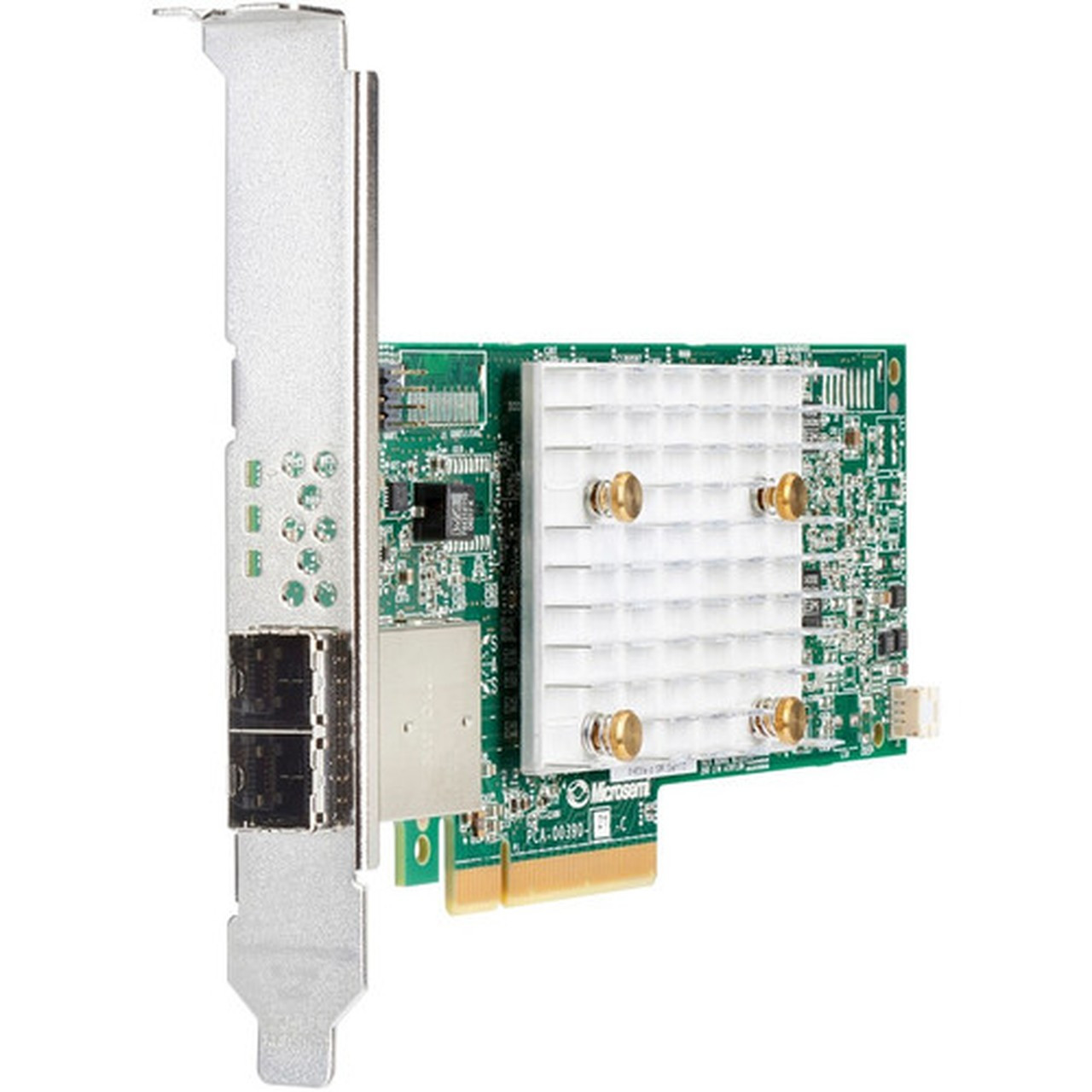

HPE Smart Array P408e-p SR Gen10 Controller - 12Gb/s SAS, Serial ATA/600 - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, (804405-B21)

Marketing Information: The HPE Smart Array P408e-p SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance on externally attached drives while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight external SAS lanes, allowing connection to externally attached SAS or SATA drives, and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption.

The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately

Host Interface: PCI Express 3.0 x8

Controller Type: 12Gb/s SAS,Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,6,10,50,60,1 ADM,10 ADM

Data Backup Type: Flash Backed Cache

Cache Memory: 4 GB

Number of SAS Ports (External): 8

SAS Connector Details: 2

Form Factor: Plug-in Card

Platform Supported: Linux,PC
