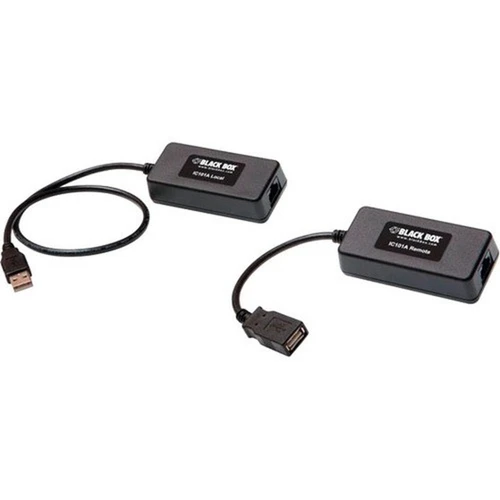

Black Box USB 1.1 CAT5 Extender Single Port Solution For Extending Over Structured Cabling IC101A

Marketing Information: The IC101A extends USB 1.1 peripherals beyond the 16 ft (5 m) lImitation reaching distances of up to 131 ft (40 m) over CATx cables. The IC101A extender enables users to extend USB peripherals including keyboards, mice, interactive white boards, and game controllers up to 131 feet (40 meters), up to 278 feet (85 meters) may be achievable with low-speed HID devices such as keyboards and mice.

Height: 3.34" (84.84 mm)

Width: 1.57" (39.88 mm)

Depth: 0.87" (22.10 mm)

Package Contents:

• 1 x Local unit with integrated USB cable
• 2 x Remote unit with integrated USB cable
• Quick Start Guide

Additional Information:

• Available Current: 400mA when Local Extender is supplied with 700mA
• Environmental: Operating temperature: 32 to 151° F (0 to 55 ° C); Operating humidity: 0 to 94% relative, noncondensing
• Link Connector: RJ-45
• Pig Tail Length Local: 18" (45.7 cm); Remote: 6" (15.2 cm)
• Range Full-speed and low-speed: Up to 131 ft. (40 m); Low-speed: Up to 279 ft. (85 m)
• USB Connector Local: (1) USB Type A Plug; Remote: (1) USB Type A receptacle

Certifications & Standards:

• FCC (Class A)
• CE (Class A)

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
