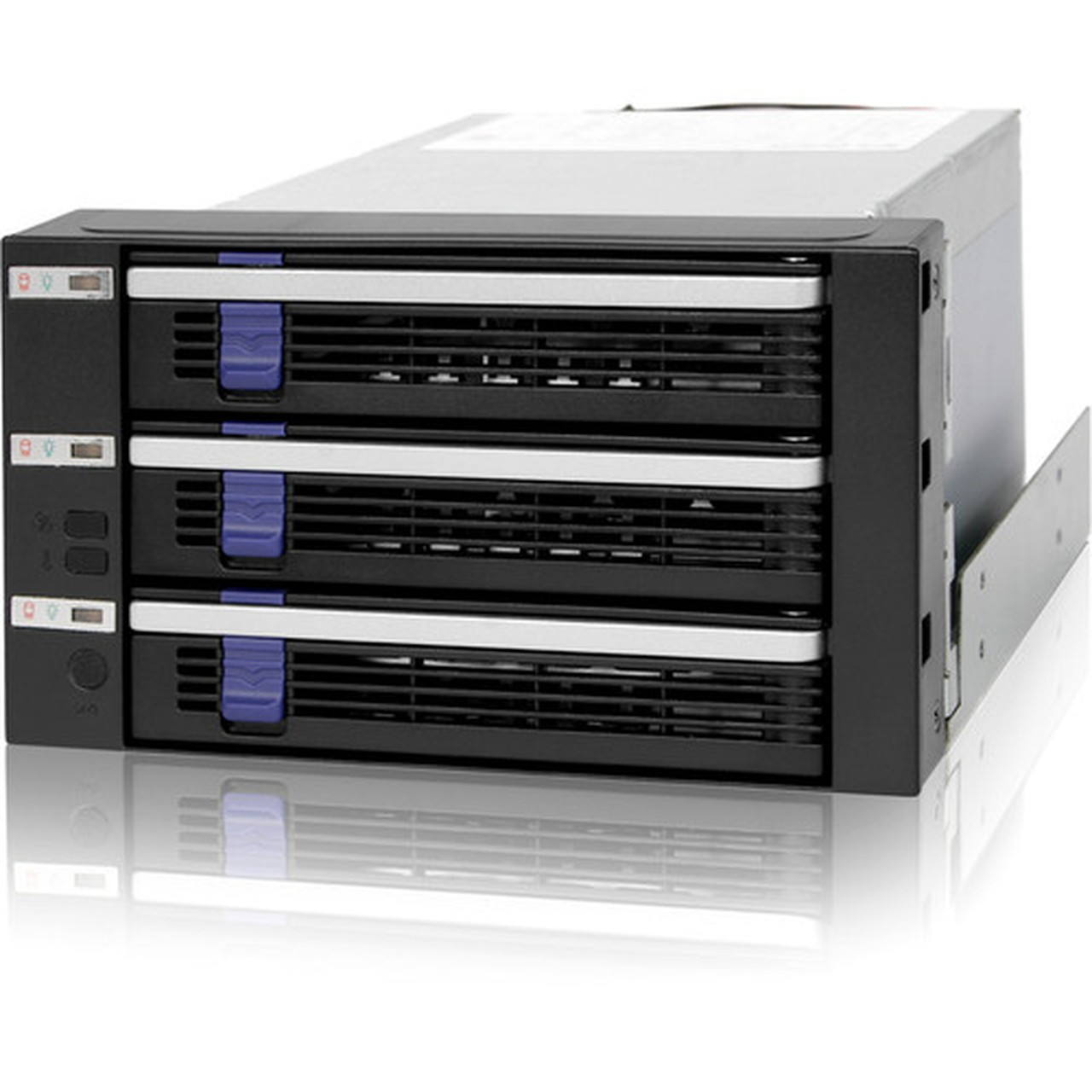

Icy Dock MB153SP-B 3 in 2 SATA Internal Backplane Raid Cage Module - 3 x HDD Supported - RAID Supported - 3 x Total Bays - 3 x 3.5" - (MB153SP-B)

Marketing Information:

Introducing the MB153SP-B, a 3-in-2 SATA internal RAID backplane for 3.5" SATA hard drives. This is a lite version of the MB45X series by removing the monitoring features and reducing the overall cost, while keeping the same 3 year warranty and the core tray system for hot swapping and maintenance are kept for the best reliability in the market.

Slimmed Down Design

The MB153SP-B has been redesigned to be a lighter module, while maintaining the same level of quality, build, and service you'd expect from an Icy Dock product. While the design has gone through some changes, the space saving design is still established. The backplane module allows up to 3 x 3.5" SATA III hard drives, while only consuming two 5.25" bays. The module has also been redesigned for the type of power connector accepted. 15 pin SATA power is used to provide better accessibility for various host systems.

Number of Hard Drives Supported: 3

Number of Total Expansion Bays: 3

Number of 3.5" Bays: 3

RAID Supported: Yes

Drive Interface: Serial ATA/600

Host Interface: SATA/600

Height: 3.38" (85.80 mm)

Width: 5.76" (146.40 mm)

Depth: 7.89" (200.40 mm)

Form Factor: Internal

Weight (Approximate): 912 g

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
