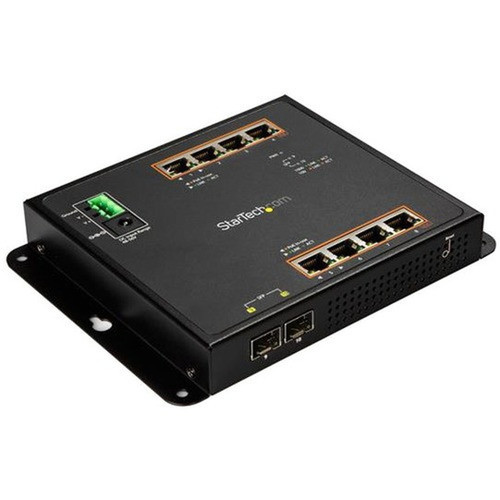

Industrial Managed 8 Port Gigabit PoE Plus Ethernet Switch With 2 SFP Uplinks Add Up To 10 GbE StarTech.com Ports IES101GP2SFW
Write a Review
StarTech.com
Industrial Managed 8 Port Gigabit PoE Plus Ethernet Switch With 2 SFP Uplinks Add Up To 10 GbE StarTech.com Ports IES101GP2SFW
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections
- 1 x Terminal Block Connector
- 4 x Screw Anchors
- 4 x Screws
- 4 x Attaching Pins
- 4 x Locking Pins
- 4 x Washers
- 4 x Magnets
- 1 x DIN Rail
- 3 x DIN-rail Screws
- 8 x RJ45 Dust Caps
- 2 x SFP Dust Caps
- 1 x Quick-start Guide
Total Number of Network Ports: 8
Network (RJ-45): Yes
Modular: Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T,1000Base-SX/LX
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Layer Supported: 2
Networking Standards: IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.1ab
Manageable: Yes
PoE (RJ-45) Port: Yes
Product Material: Steel
Form Factor: Wall Mountable,Rail-mountable,Magnetic Mount
Height: 1" (25.40 mm)
Width: 7" (177.80 mm)
Length: 5.30" (134.62 mm)
Weight (Approximate): 1.36 lb (618.02 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 2 Year
- POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch
- FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included
- FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others
- TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 8 port Gigabit switch is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES101GP2SFW |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections |
| Packaged Quantity | 1 Each |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX/LX |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Wall Mountable,Rail-mountable,Magnetic Mount |
| Height | 1" (25.40 mm) |
| Width | 7" (177.80 mm) |
| Length | 5.30" (134.62 mm) |
| Weight (Approximate) | 1.36 lb (618.02 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year| Qty | Price | Available |
|---|
All of our inventory is warehoused in Canada and shipped nationwide exclusively through the three carriers listed above.
