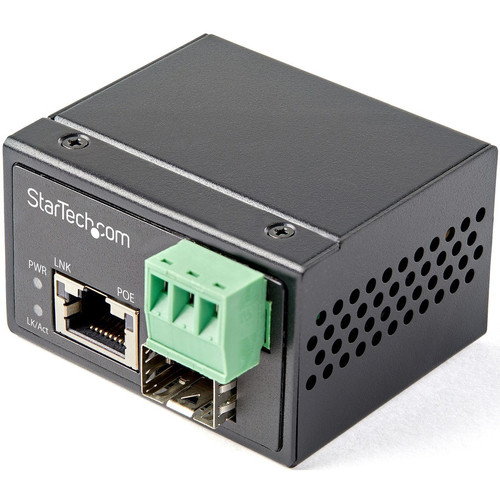

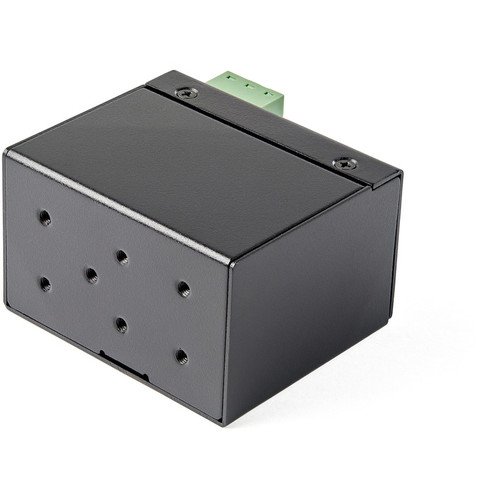

StarTech.com PoE Plus Industrial Fiber To Ethernet Media Converter SFP RJ45 SM MM Gigabit Mini IP30 Copper IP-30 Size IMC1GSFP30W
Write a Review
StarTech.com
StarTech.com PoE Plus Industrial Fiber To Ethernet Media Converter SFP RJ45 SM MM Gigabit Mini IP30 Copper IP-30 Size IMC1GSFP30W
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Transceiver/Media Converter
- Terminal Block to Barrel Power Connector Adapter
- Quick-Start Guide
- Mounting Hardware
- Terminal Block
Total Number of Ports: 1
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Multi-mode,Single-mode
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T,1000Base-TX
Power Source: PoE+
Power Consumption: 30 W
Plug/Connector Type: Terminal Block (3 Wire),Type N
Form Factor: DIN Rail Mountable,Wall Mountable
Height: 1.90" (48.26 mm)
Width: 1.40" (35.56 mm)
Depth: 2.30" (58.42 mm)
Weight (Approximate): 2.80 oz (79.38 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: 2 Year
- COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
- TECH SPECS: 1 Gbps
1 x Open SFP (MSA Compliant)
1x RJ45
48V-56VDC
IEEE 802.3af / IEEE 802.3at (30W)
10/100/1000Mbps
LFP
16K Jumbo Frames
DIN or Wall Mount Hardware Included - ROBUST DESIGN: Industrial Gigabit Mini Media Converter w/MTBF 500,000+hrs @ 50C
Vibration, shock & free fall rated
Rugged IP-30 aluminum housing
Hardened operating temp -40C to 75C
2 yr warr - OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
- FLEXIBLE POWER INPUT: Can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years
This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP30W |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-TX |
| Power Description | |
| Power Source | PoE+ |
| Power Consumption | 30 W |
| Plug/Connector Type | Terminal Block (3 Wire),Type N |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 1.90" (48.26 mm) |
| Width | 1.40" (35.56 mm) |
| Depth | 2.30" (58.42 mm) |
| Weight (Approximate) | 2.80 oz (79.38 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year| Qty | Price | Available |
|---|
