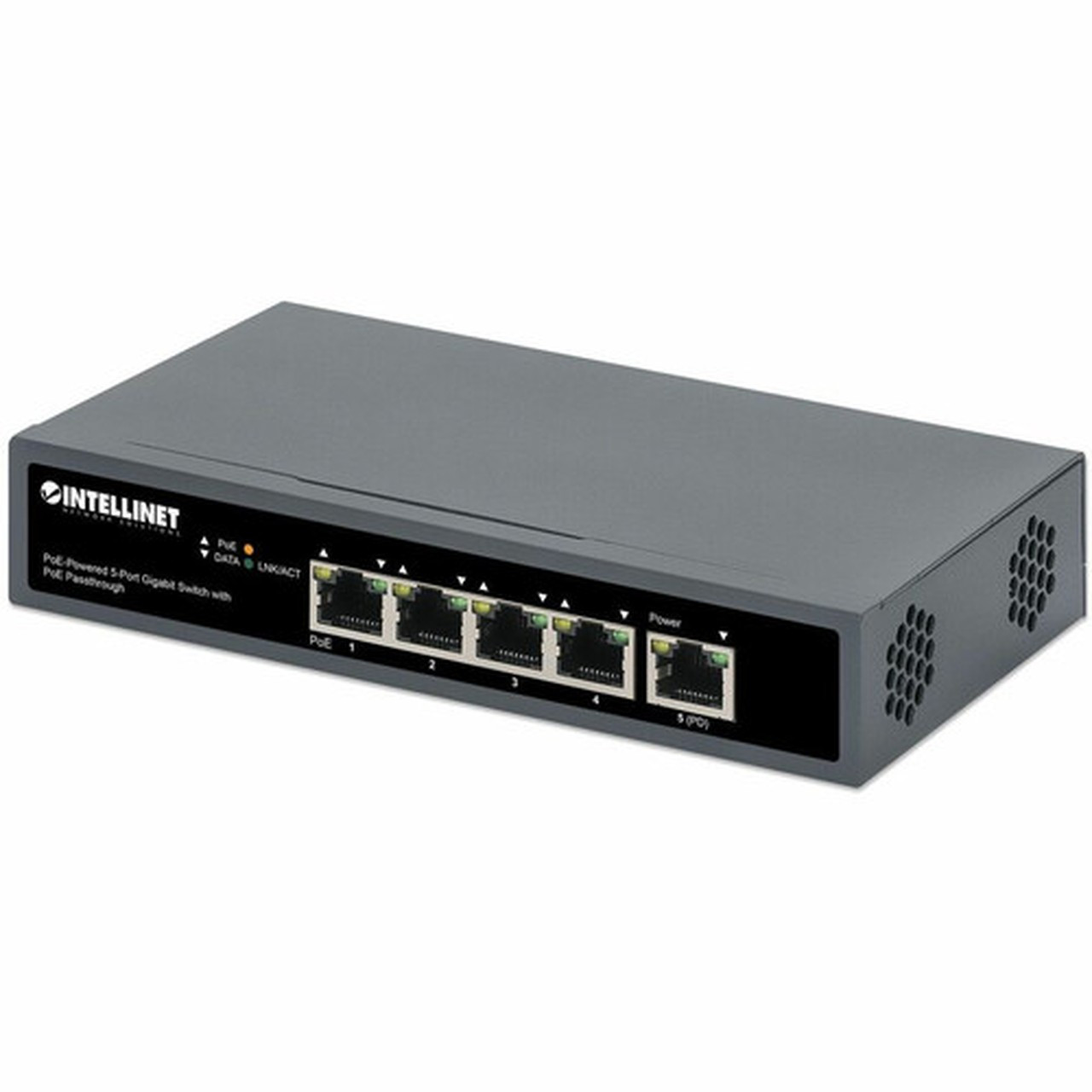

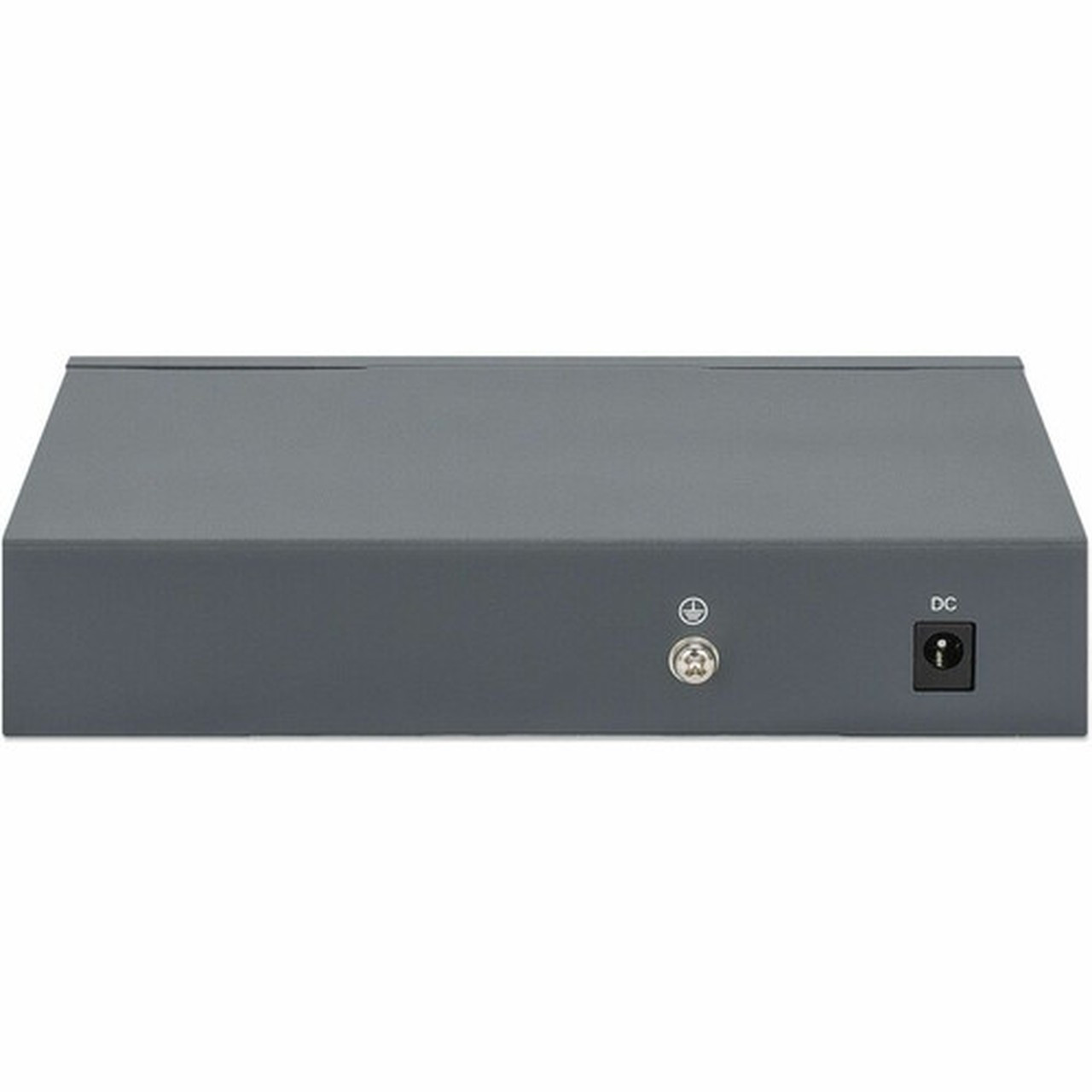

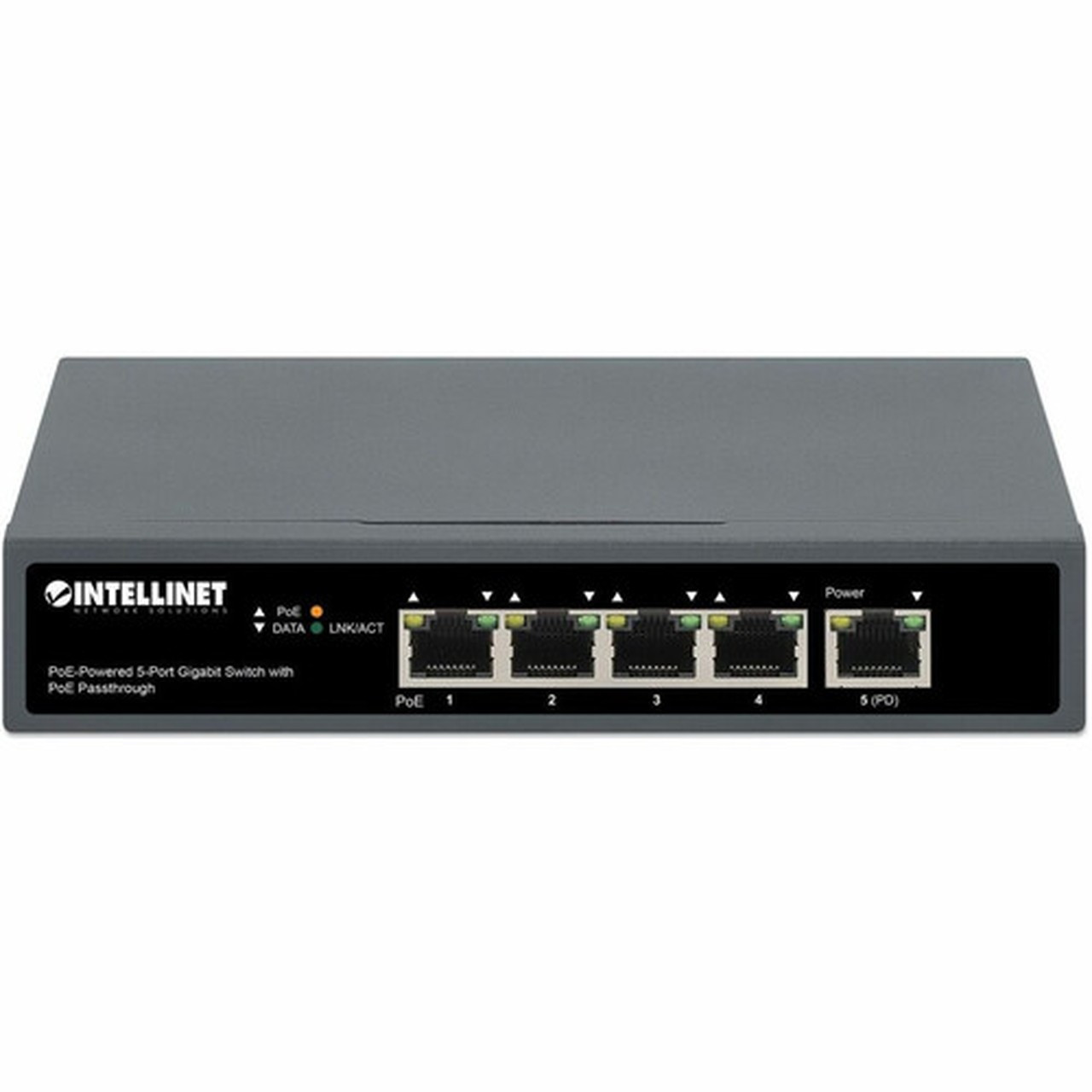

Intellinet PoE-Powered 5-Port Gigabit Switch With PoE Passthrough - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported (561808)

Marketing Information:

Get the most out each Power over Ethernet connection with this PoE passthrough switch

The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps.

Usable as a PoE extender

Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.

Power over Ethernet 802.3bt Compliant

This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3afcompliant device

The Perfect Workgroup Switch

When you connect the PD port (port 5) to a PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.

Eliminate Bottlenecks with Gigabit Speeds

Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.

Wall-mount option

For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.

Features: Fanless

Total Number of Network Ports: 5

Uplink Port: Yes

Port/Expansion Slot Details: 1 x Gigabit Ethernet PoE++,4 x Gigabit Ethernet PoE

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Networking Standards: IEEE 802.3bt,IEEE802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u

PoE (RJ-45) Port: Yes

PoE Budget: 65 W

Input Voltage: 120 V AC,230 V AC

Power Source: Power Supply,AC,Power Adapter,PoE++

Power Consumption: 72 W

Product Material: Metal

Form Factor: Desktop,Wall Mountable

Height: 1.26" (32 mm)

Width: 6.61" (168 mm)

Length: 3.66" (93 mm)

Weight (Approximate): 14.11 oz (400 g)

Package Contents:

• PoE-Powered 5-Port Gigabit Switch With PoE Passthrough

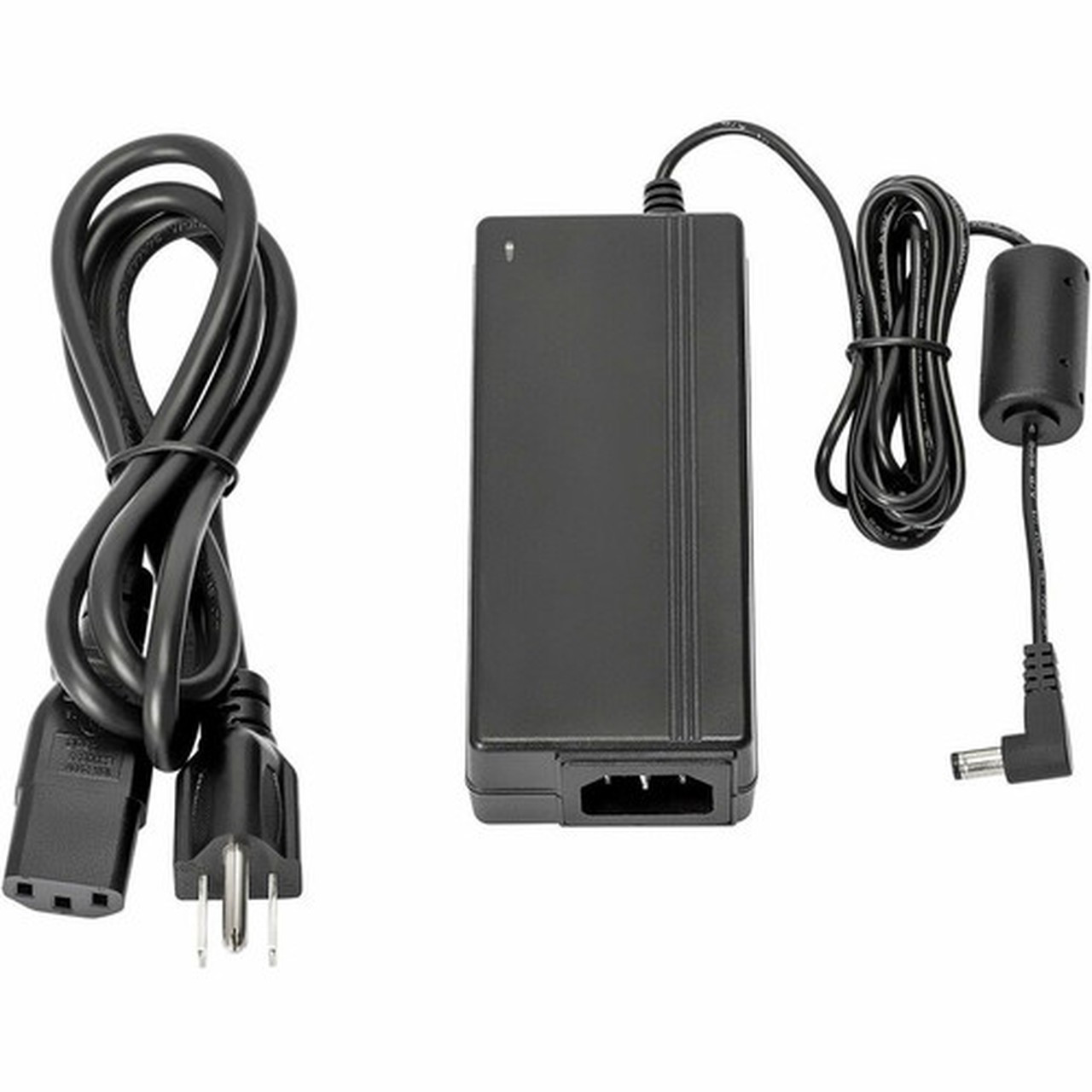

• Power Adapter
• Power Cable
• Four Rubber Feet
• Instructions

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
