iStarUSA 4U 15-bay 3.5" SAS/SATA eSATA-Port Multiplier Trayless Hotswap Enclosure - 15 x HDD Supported - Serial ATA/600, 6Gb/s SAS - - (DAGE415U40DEBL-PM)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
iStarUSA
iStarUSA 4U 15-bay 3.5" SAS/SATA eSATA-Port Multiplier Trayless Hotswap Enclosure - 15 x HDD Supported - Serial ATA/600, 6Gb/s SAS - - (DAGE415U40DEBL-PM)

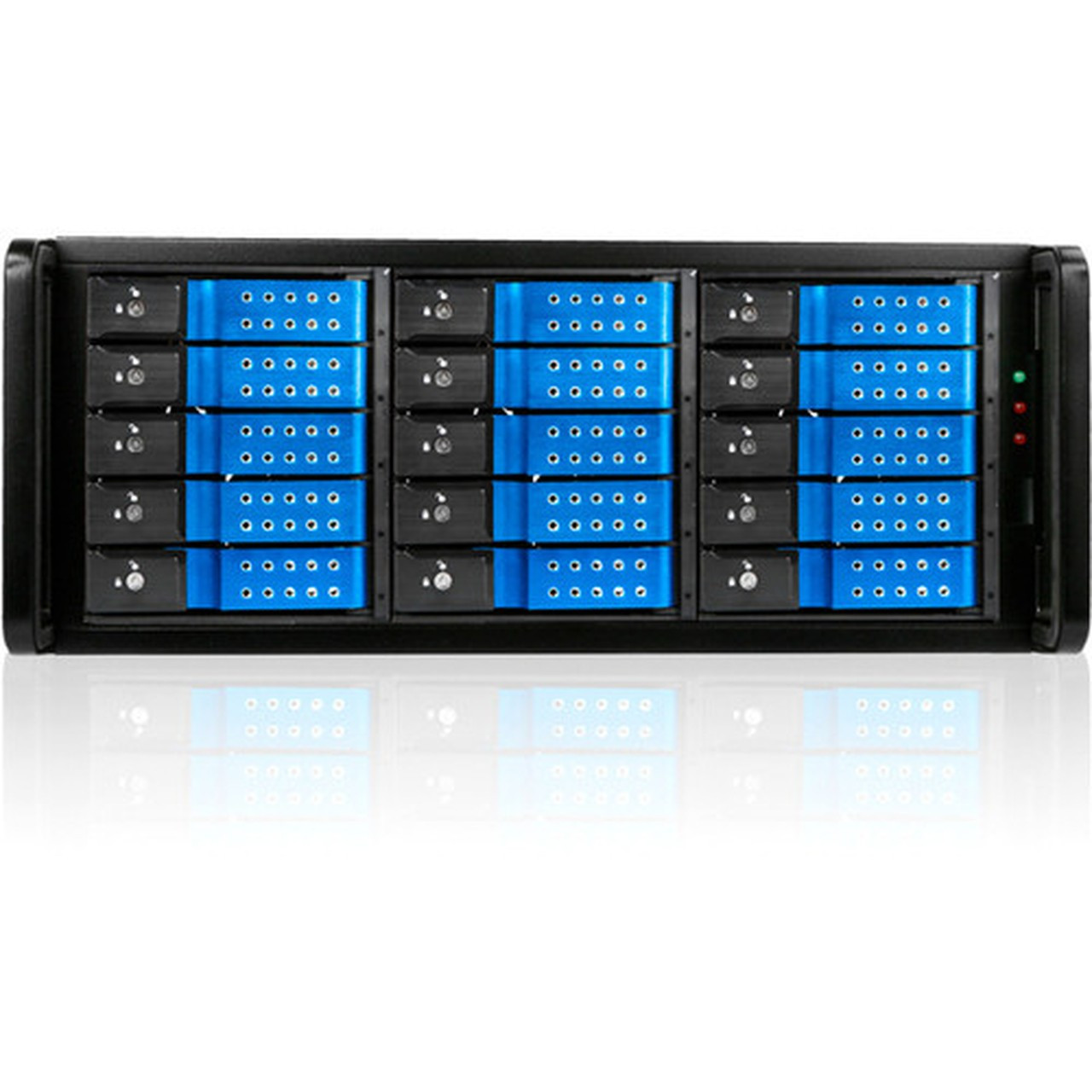

Marketing Information: DAGE415U40DE-PM is an external 4U-15 bay trayless hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 15 SATA drives for 1/0/5/JBOD RAID configuration. This 4U-15 Bay external SATA Enclosure is designed with 3 high quality eSATA (Port Multiplier) connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE415U40DE-PM provides maximum storage and performance to high density storage system.
Number of Hard Drives Supported: 15
Number of Total Expansion Bays: 15
Number of 3.5" Bays: 15
Controller Type: Serial ATA/600,6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, JBOD
Host Interface: eSATA
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 750 W
Height: 7" (177.80 mm)
Width: 19" (482.60 mm)
Depth: 20" (508 mm)
Form Factor: Rack-mountable
Rack Height: 4U
Environmentally Friendly: Yes
[custom-specifications]
| Specifications | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | DAGE415U40DEBL-PM |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | iStarUSA |
| Product Model | DAGE415U40DE-PM |
| Product Name | 4U 15-bay 3.5" SAS/SATA eSATA-Port Multiplier Trayless Hotswap Enclosure |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 15 |
| I/O Expansions | |
| Number of Total Expansion Bays | 15 |
| Number of 3.5" Bays | 15 |
| Controllers | |
| Controller Type | Serial ATA/600,6Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, JBOD |
| Interfaces/Ports | |
| Host Interface | eSATA |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
| Physical Characteristics | |
| Height | 7" (177.80 mm) |
| Width | 19" (482.60 mm) |
| Depth | 20" (508 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Miscellaneous | |
| Environmentally Friendly | Yes |
[/custom-specifications]
[custom-options]
| Product | iStarUSA TC-Rail-24 Mounting Rail - 85 lb (38555.35 g) Load Capacity - Steel |
| SKU | TC-RAIL-24 |
| Sale Price | $54.57 |
| Product | iStarUSA TC-Rail-26 Mounting Rail - 85 lb (38555.35 g) Load Capacity - Steel |
| SKU | TC-RAIL-26 |
| Sale Price | $62.10 |
| Product | iStarUSA TC-Rail-20 Mounting Rail - 85 lb (38555.35 g) Load Capacity - Steel |
| SKU | TC-RAIL-20 |
| Sale Price | $49.69 |
