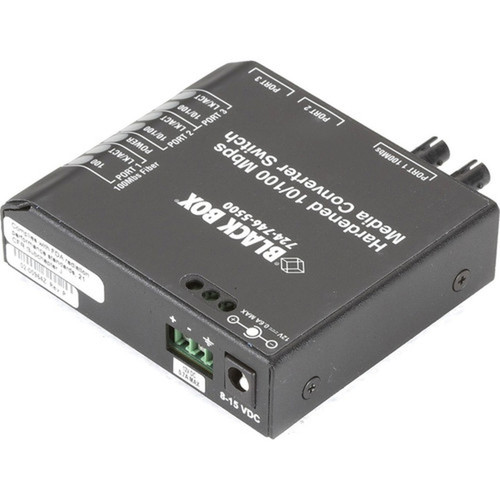

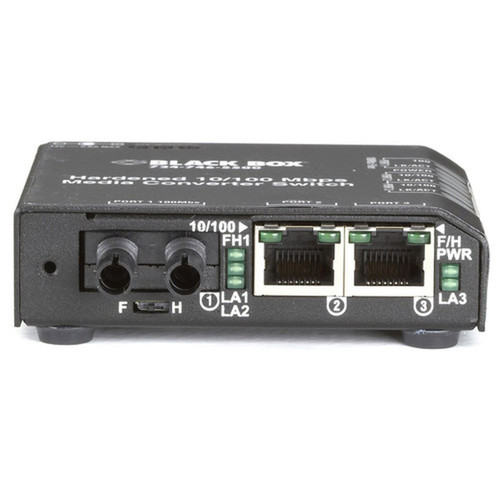

Black Box Fast Ethernet Hardened Temperature Switch With Two 10 100 Copper RJ45 And One Mbps Multimode Fiber Port LBH100A-H-ST-12
Write a Review
Black Box
Black Box Fast Ethernet Hardened Temperature Switch With Two 10 100 Copper RJ45 And One Mbps Multimode Fiber Port LBH100A-H-ST-12
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Total Number of Ports: 3
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of ST Ports: 1
ST Port Type: Duplex
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 1300 nm
Maximum Distance Supported: 2 km (1.24 Mile)
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX,100Base-X
Power Source: DC
Form Factor: External,Rack-mountable
Height: 3.50" (88.90 mm)
Width: 3" (76.20 mm)
Depth: 1" (25.40 mm)
Weight (Approximate): 4.80 oz (136.08 g)
Country of Origin: United States
TAA Compliant: Yes
Limited Warranty: 3 Year
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Meet the multiple network connectivity needs of today's network environment with this 3 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- No hassle of internal installation, install externally
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH100A-H-ST-12 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LBH100 |
| Product Model | LBH100A-H-ST-12 |
| Product Name | Hardened Media Converter Switch |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-X |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | External,Rack-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
