- PCIe 3.0 x8 host interface
- Two (8i adapter) or four (16i adapter) connectors to the drive backplanes

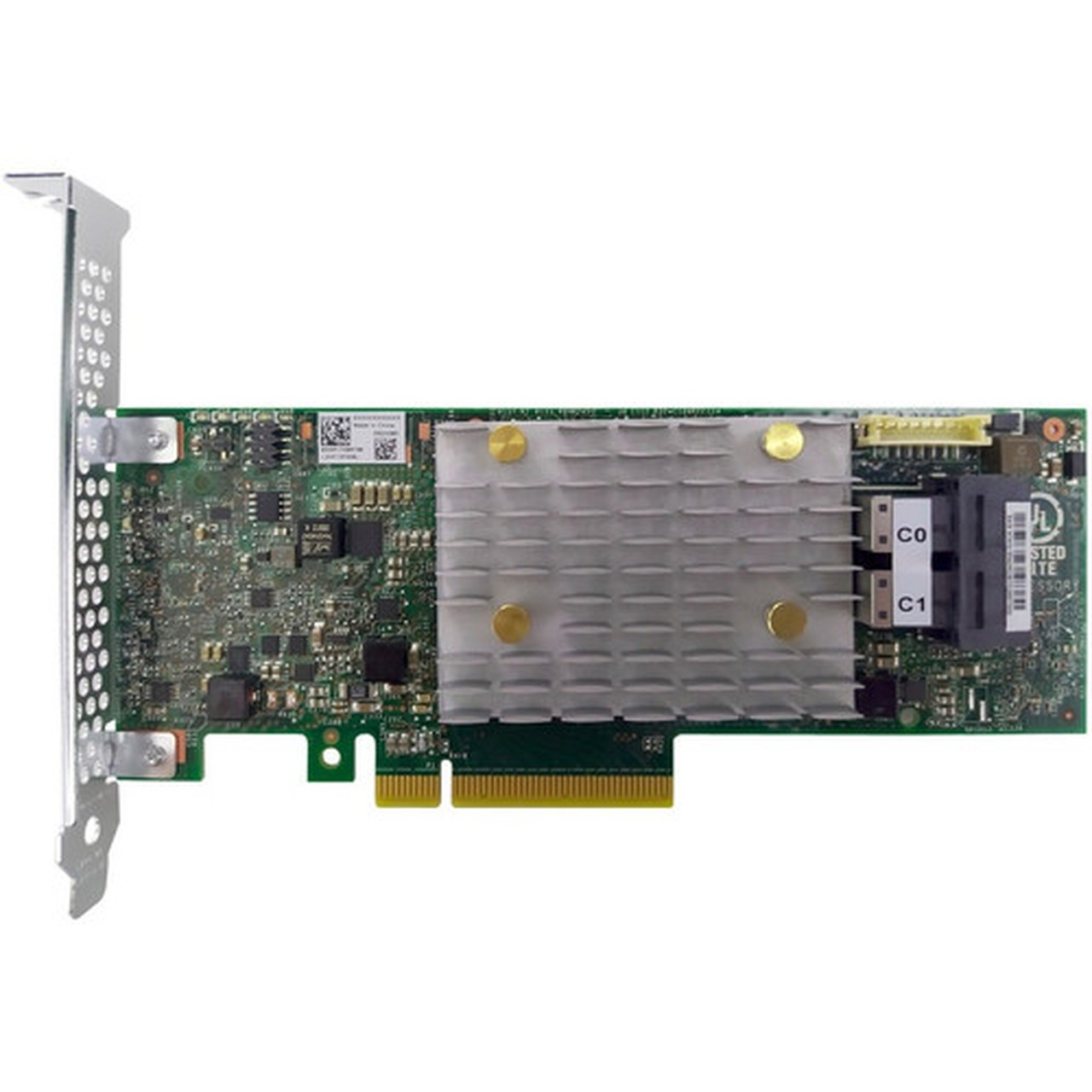

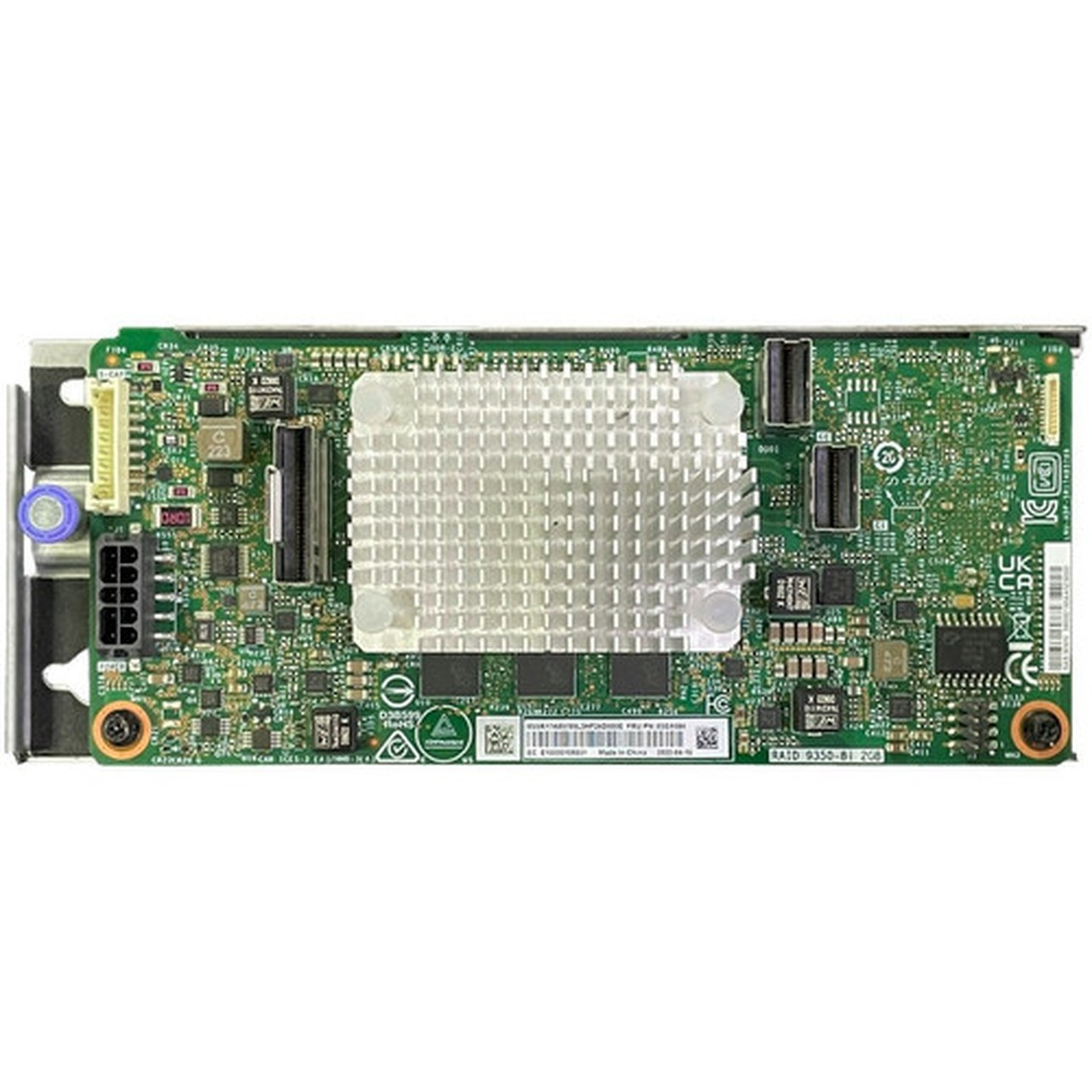

- Two adapter form factors: Low-profile PCIe adapter with broad server compatibility; Custom form-factor, designed to not consume a standard PCIe slot
- 12 Gbps SAS/SATA RAID controllers, based on the Adaptec SmartRAID 3152-8i and SmartRAID 3154-16i
- 2GB (8i) or 4GB (16i) of integrated flash-backed cache
- Connectivity for up to 8 (8i) or 16 (16i) internal SAS or SATA drives
- Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
- Support for intermixing of 12 Gbps and 6 Gbps drives.
- Standard support for RAID 0, 1, 10, 5, 50, 6, 60, RAID 1 Triple, and RAID 10 Triple
- Support for JBOD (non-RAID, called "raw" or "HBA mode" in Adaptec parlance) drive state
Marketing Information: The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
Host Interface: PCI Express 3.0 x8Controller Type: 12Gb/s SASRAID Supported: YesRAID Levels: Data Backup Type: Flash Backed CacheDevice Supported: ServerOperating System Supported: - Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 7.7
- Red Hat Enterprise Linux 7.8
- Red Hat Enterprise Linux 7.9
- Red Hat Enterprise Linux 8.1
- Red Hat Enterprise Linux 8.2
- Red Hat Enterprise Linux 8.3
- Red Hat Enterprise Linux 8.4
- Red Hat Enterprise Linux 8.5
- Red Hat Enterprise Linux 8.6
- Red Hat Enterprise Linux 9.0
- SUSE Linux Enterprise Server 12 SP3
- SUSE Linux Enterprise Server 12 SP4
- SUSE Linux Enterprise Server 12 SP5
- SUSE Linux Enterprise Server 15 SP1
- SUSE Linux Enterprise Server 15 SP2
- SUSE Linux Enterprise Server 15 SP3
- SUSE Linux Enterprise Server 15 SP4
- Ubuntu 20.04 LTS
- Ubuntu 22.04 LTS
Cache Memory: 2 GBTotal Number of SAS Ports: 8Number of SAS Ports (Internal): 8SAS Connector Details: 2x SlimSAS x4 (SFF-8654)Form Factor: Plug-in CardHeight: 2.50" (63.50 mm)Length: 6.60" (167.64 mm)Platform Supported: Environmentally Friendly: YesLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Lenovo Group Limited
Manufacturer Part Number: 4Y37A72484
Manufacturer Website Address: http://www.lenovo.com
Brand Name: Lenovo
Product Model: 9350-8i
Product Name: ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Internal Adapter
Product Type: SAS Controller
Technical InformationHost Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels:
Data Backup Type: Flash Backed Cache
Device Supported: Server
Operating System Supported:
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 7.7
- Red Hat Enterprise Linux 7.8
- Red Hat Enterprise Linux 7.9
- Red Hat Enterprise Linux 8.1
- Red Hat Enterprise Linux 8.2
- Red Hat Enterprise Linux 8.3
- Red Hat Enterprise Linux 8.4
- Red Hat Enterprise Linux 8.5
- Red Hat Enterprise Linux 8.6
- Red Hat Enterprise Linux 9.0
- SUSE Linux Enterprise Server 12 SP3
- SUSE Linux Enterprise Server 12 SP4
- SUSE Linux Enterprise Server 12 SP5
- SUSE Linux Enterprise Server 15 SP1
- SUSE Linux Enterprise Server 15 SP2
- SUSE Linux Enterprise Server 15 SP3
- SUSE Linux Enterprise Server 15 SP4
- Ubuntu 20.04 LTS
- Ubuntu 22.04 LTS
MemoryCache Memory: 2 GB
Interfaces/PortsTotal Number of SAS Ports: 8
Number of SAS Ports (Internal): 8
SAS Connector Details: 2x SlimSAS x4 (SFF-8654)
Physical CharacteristicsForm Factor: Plug-in Card
Height: 2.50" (63.50 mm)
Length: 6.60" (167.64 mm)
MiscellaneousPlatform Supported:
Environmentally Friendly: Yes
WarrantyLimited Warranty: 1 Year
[/custom-specifications]
