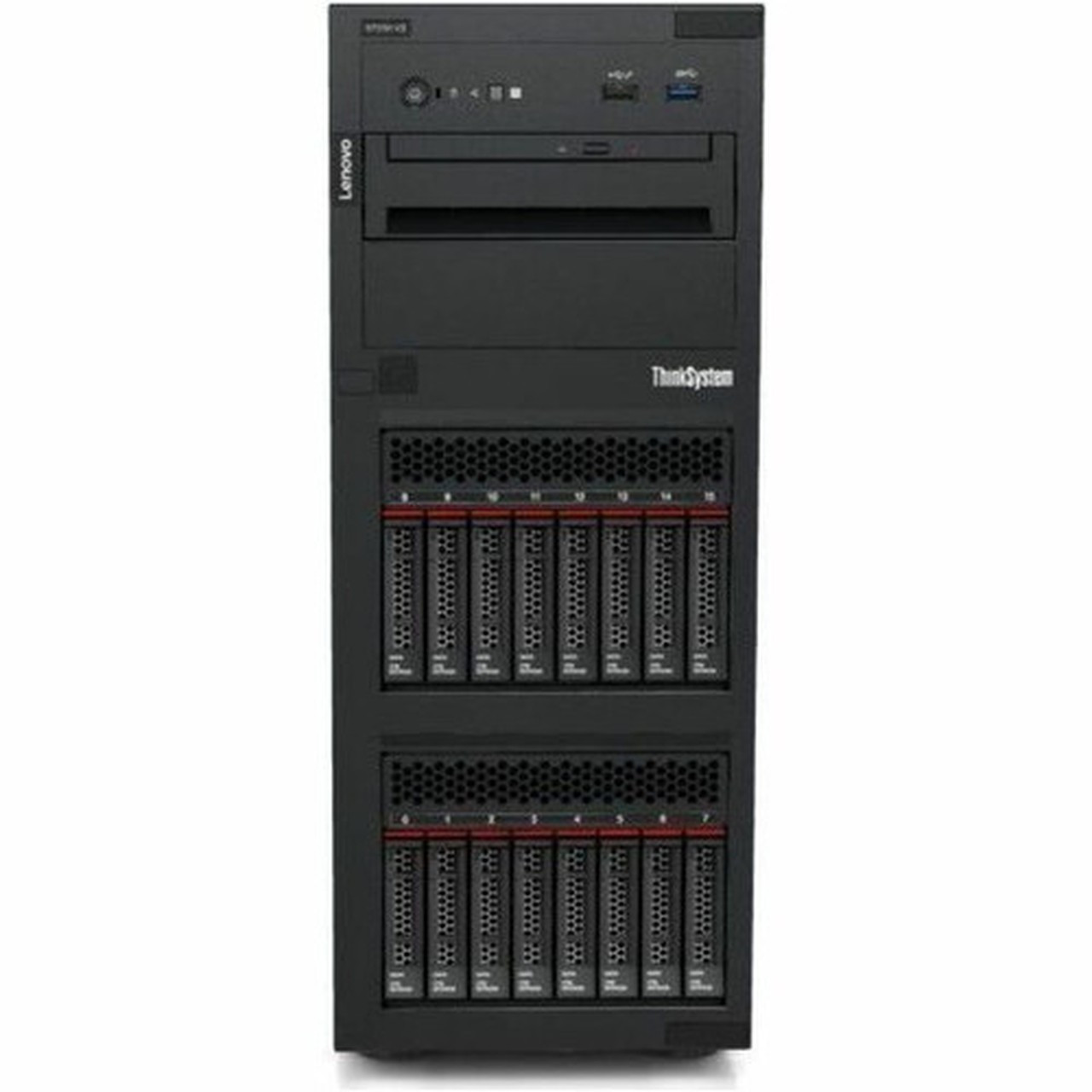

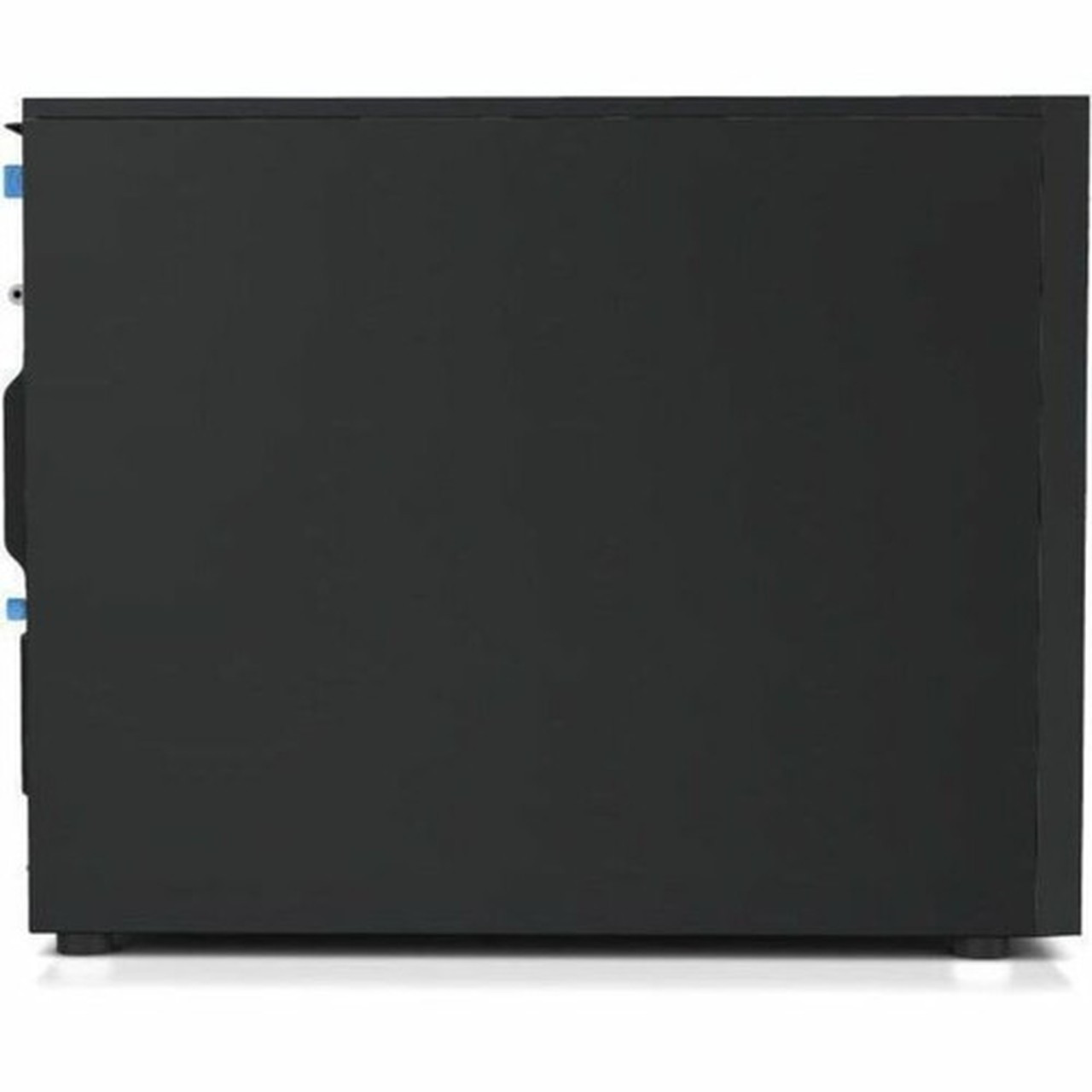

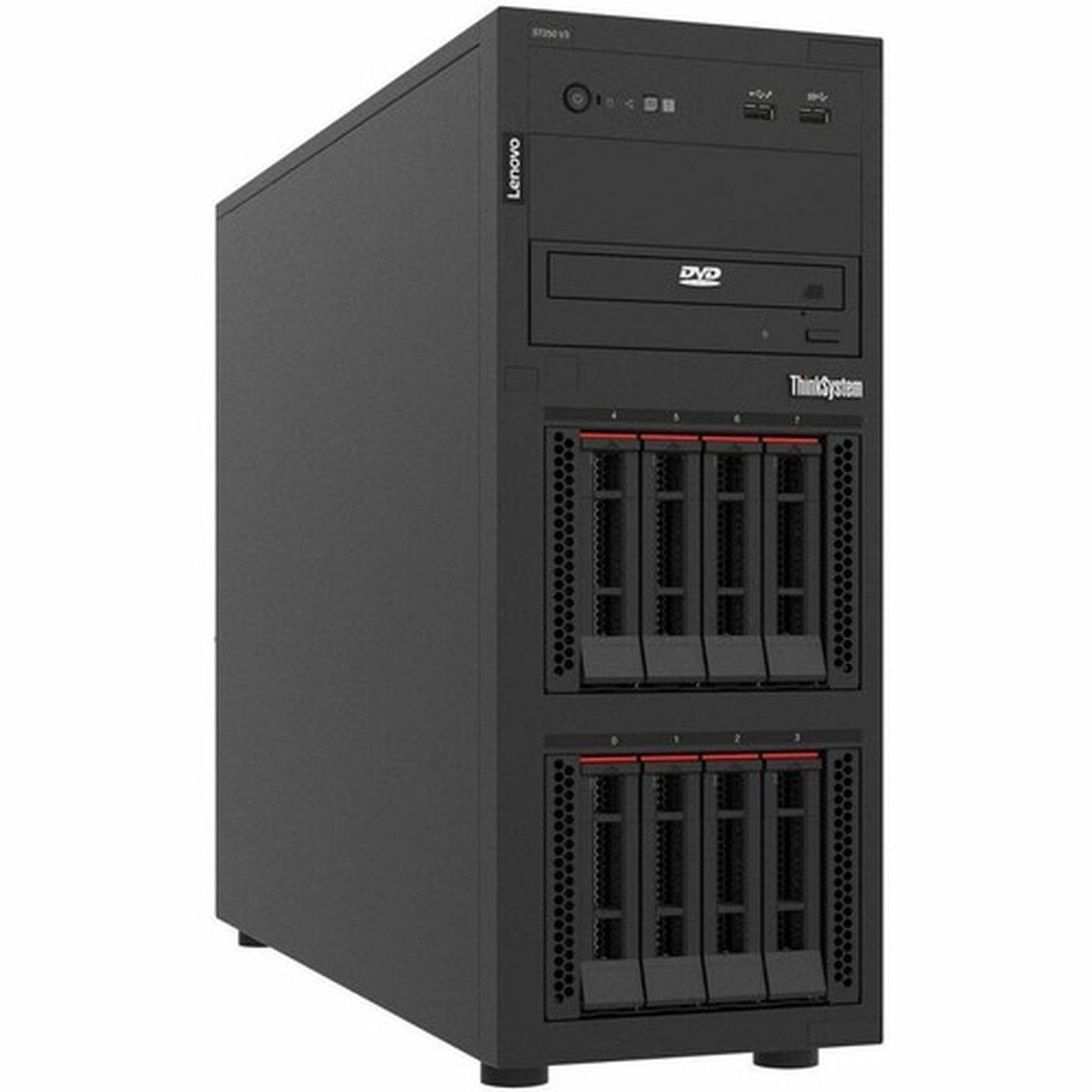

Lenovo ThinkSystem ST250 V3 7DCEA022NA Tower Server - 1 x Intel Xeon E-2434 3.40 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel - (7DCEA022NA)

Marketing Information:

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".

Number of Processors Supported: 1

Number of Processors Installed: 1

Processor Manufacturer: Intel

Processor Type: Xeon

Processor Model: E-2434

Processor Core: Quad-core (4 Core)

Processor Speed: 3.40 GHz

Cache: 8 MB

Chipset Manufacturer: Intel

Chipset Model: C266

Standard Memory: 16 GB

Maximum Memory Supported: 128 GB

Memory Technology: TruDDR5

Memory Clock Speed: 4.80 GHz

Number of Occupied Memory Slots: 1

Error Checking: ECC

Signal Processing: Unregistered (Unbuffered)

Controller Type: Serial ATA/600

Controller Model: Intel VROC

Number of Total Expansion Bays: 10

Number of External 5.25" Bays: 2

Number of Internal 2.5" Bays: 8

Number of SFF Bays: 8

Hot Swappable Bays: Yes

Total Number of Expansion Slots: 4

PCI Express Details: 4x PCIe slots (x4, x16, x4, x4)

Graphics Controller Manufacturer: Matrox

Graphics Controller Model: G200

Graphics Memory Capacity: 16 MB

Ethernet Technology: Gigabit Ethernet

Total Number of USB Ports: 7

Number of USB 2.0 Ports: 1

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 2

VGA: Yes

Remote Management: Yes

Remote Management Controller: XClarity Controller

Operating System Supported: Windows Server 2022,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 9.3,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP6,Ubuntu 24.04 LTS x64

Input Voltage: 120 V AC,230 V AC

Number of Power Supplies Supported: 2

Number of Power Supplies Installed: 1

Plug/Connector Type: C13

Maximum Power Supply Wattage: 300 W

Package Contents:

• ThinkSystem ST250 V3 7DCEA022NA Server
• Documentation Flyer
• Power Cord

Security Features:

• Power-on password
• Administrator's Password
• Trusted Platform Module, supporting TPM 2.0.
• Padlock loop and Kensington Cable Slot
• Chassis Intrusion Switch

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Certification: GREENGUARD,China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)

Energy Efficiency Certification: China Energy Conservation Program (CECP),ENERGY STAR 4.0

Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Form Factor: Tower

Height: 17.50" (444.50 mm)

Width: 6.90" (175.26 mm)

Depth: 22.80" (579.12 mm)

Weight (Approximate): 15.81 kg

Limited Warranty: 3 Year

Additional Warranty Information:

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD)
