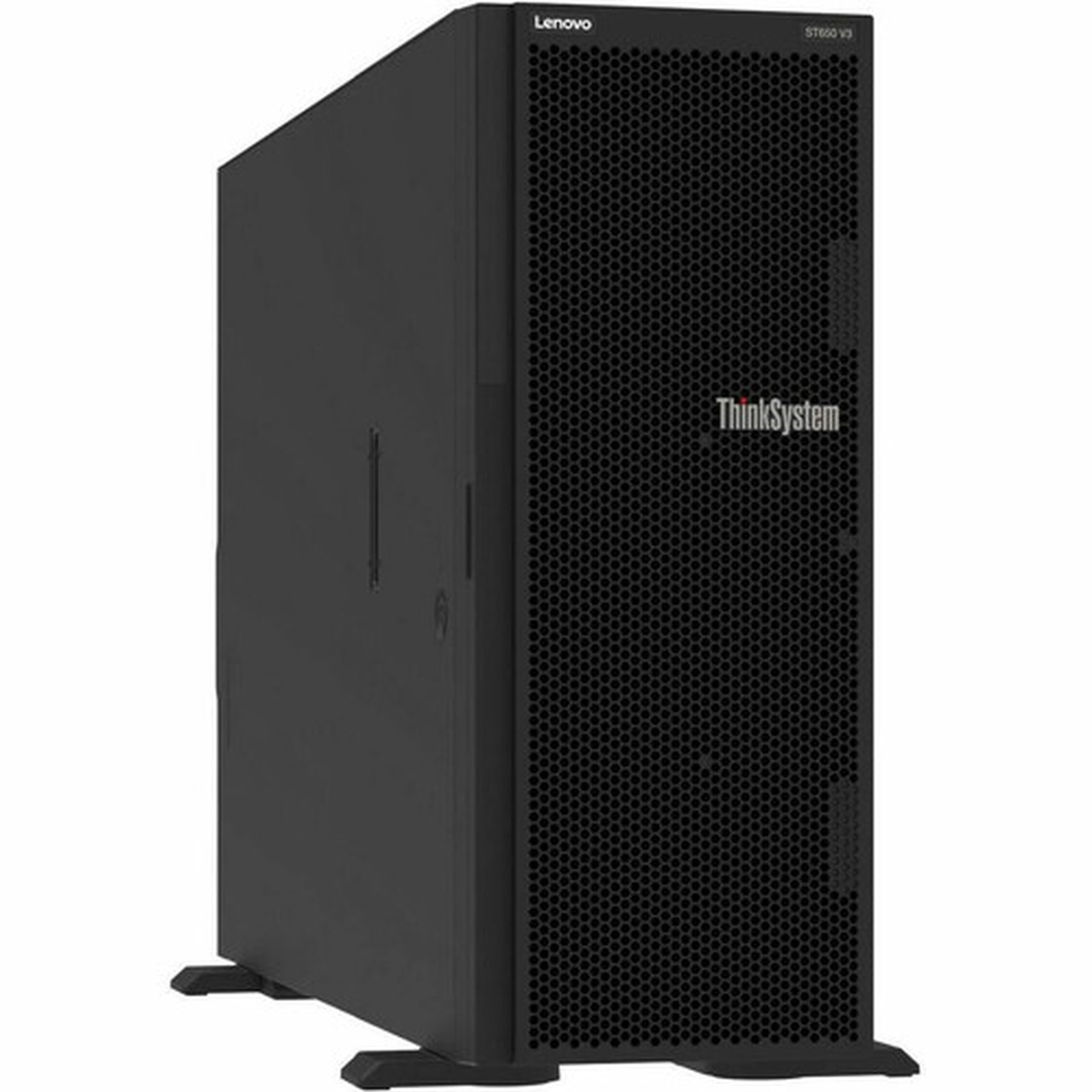

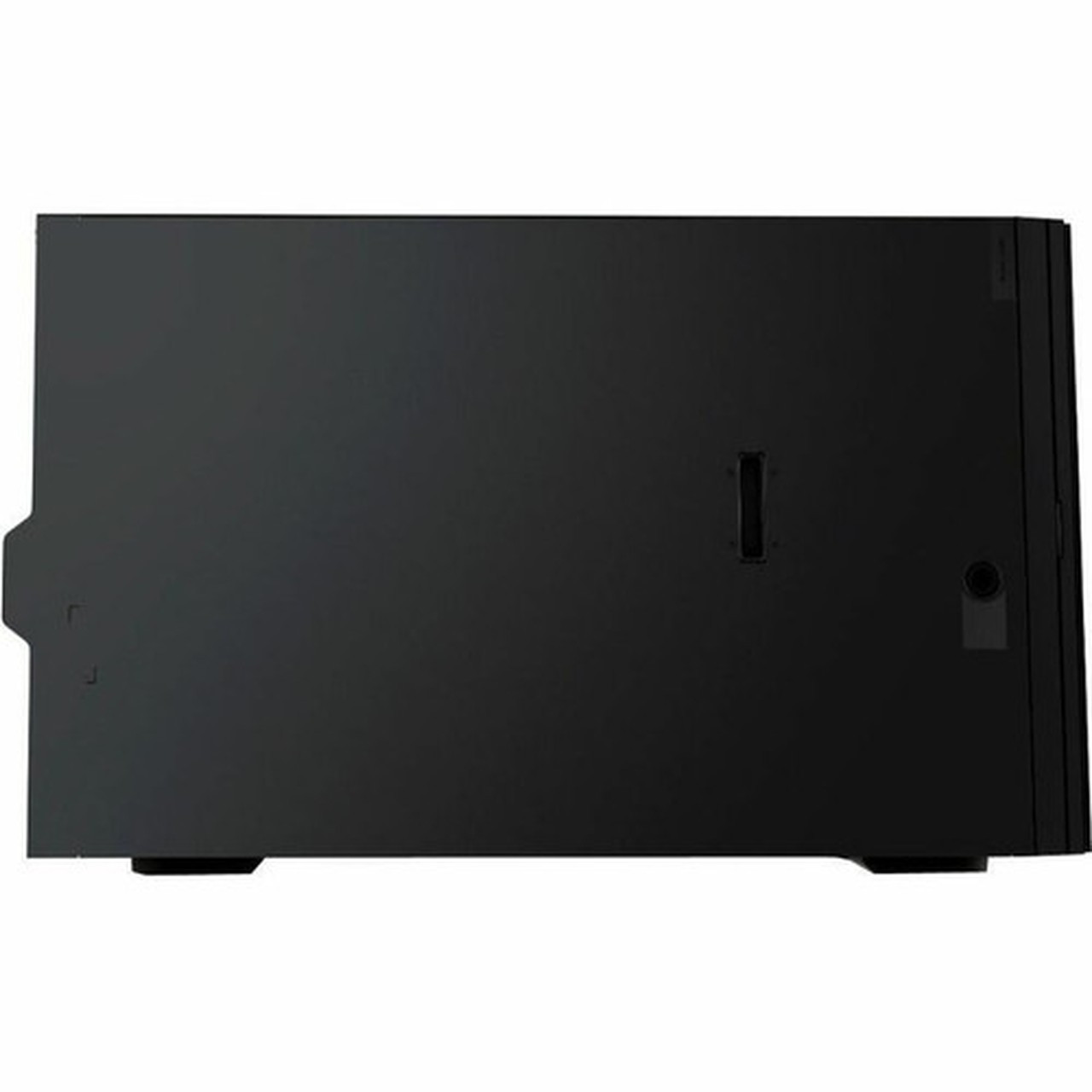

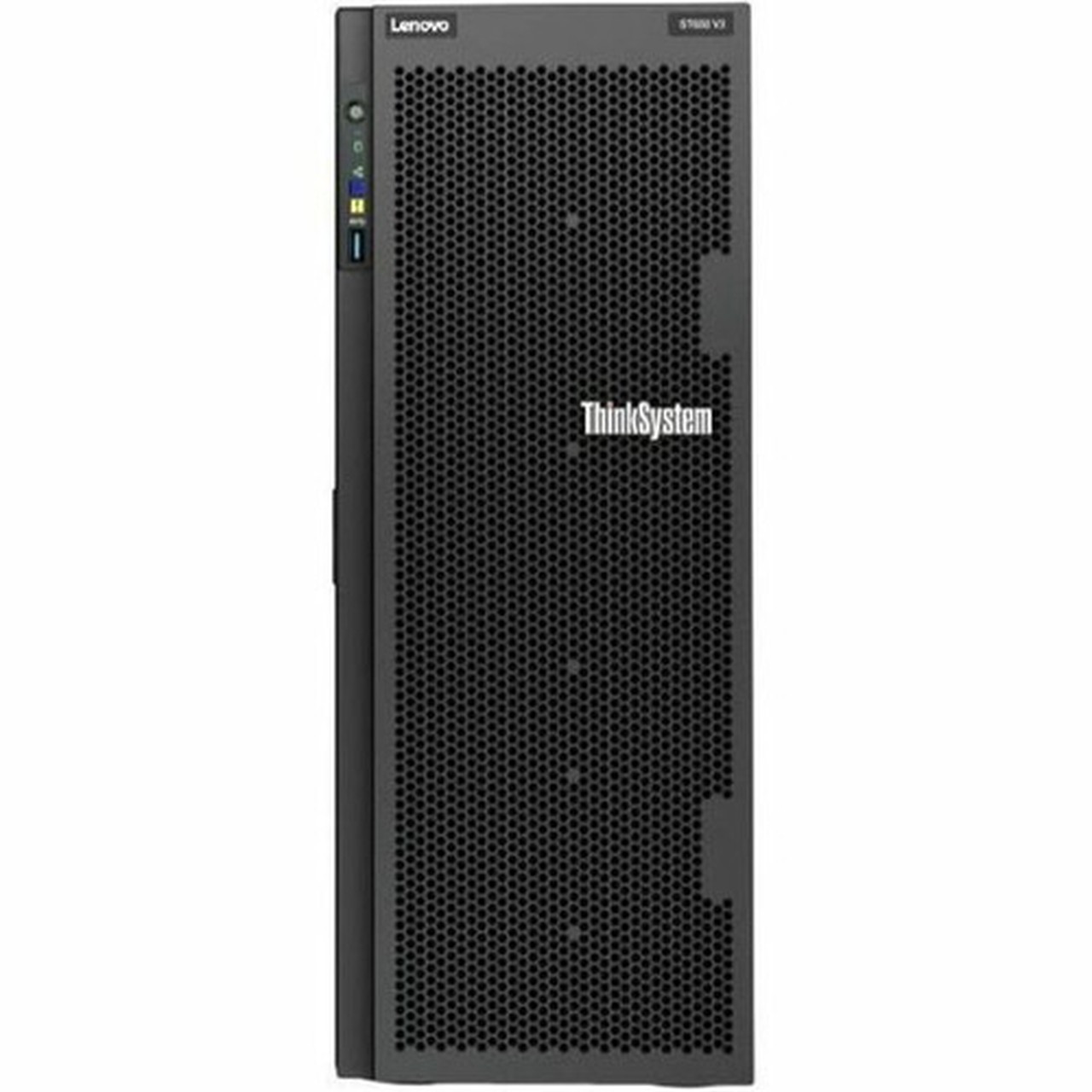

Lenovo ThinkSystem ST650 V3 7D7A1005NA 4U Tower Server - 1 x Intel Xeon Silver 4416+ 2 GHz - 32 GB RAM - Serial ATA, 12Gb/s SAS - C741 (7D7A1005NA)

• 32 GB powerful memory for any computational task
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
• 750 W power supply unit (PSU) fulfills your system's power requirements

Marketing Information:

The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.


Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Generation: 4th Gen
Processor Model: 4416+
Processor Core: Icosa-core (20 Core)
Processor Speed: 2 GHz
Cache: 37.50 MB
Chipset Manufacturer: Intel
Chipset Model: C741
Standard Memory: 32 GB
Maximum Memory Supported: 4 TB
Memory Technology: TruDDR5
Memory Clock Speed: 4.80 GHz
Number of Total Memory Slots: 32
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Registered (Buffered)
Controller Type:
• Serial ATA
• 12Gb/s SAS

Controller Model: 9350-8i
RAID Supported: Yes
Number of Total Expansion Bays: 10
Number of External 5.25" Bays: 2
Number of Internal 2.5" Bays: 8
Number of Media Drive Bays: 2
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Number of Total Expansion Slots: 9
PCI Express Details: Up to nine PCIe slots, five of which are PCIe 5.0.
Graphics Memory Capacity: 16 MB
Ethernet Technology: 10 Gigabit Ethernet
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: XCC Platinum
Operating System Supported:
• Windows Server 2019
• Windows Server 2022
• Red Hat Enterprise Linux 8.6
• Red Hat Enterprise Linux 8.7
• Red Hat Enterprise Linux 9.0
• Red Hat Enterprise Linux 9.1
• SUSE Linux Enterprise Server 15 SP4
• Ubuntu 22.04 LTS x64

Input Voltage:
• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 750 W
Hot Swappable Power Supply: Yes
Package Contents:
• ThinkSystem ST650 V3 7D7A1005NA Server
• Power Cord

Security Features:
• Power-on password
• Administrator's password
• Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
• China Environmental Labeling Program (CELP)
• Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
• GREENGUARD

Energy Efficiency Certification:
• China Energy Conservation Program (CECP)
• ENERGY STAR 3.0

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Form Factor: Tower
Rack Height: 4U
Height: 18.19" (462 mm)
Width: 6.89" (175 mm)
Depth: 28.90" (734 mm)
Weight (Approximate): 39.10 kg
Limited Warranty: 3 Year
Additional Warranty Information:

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
