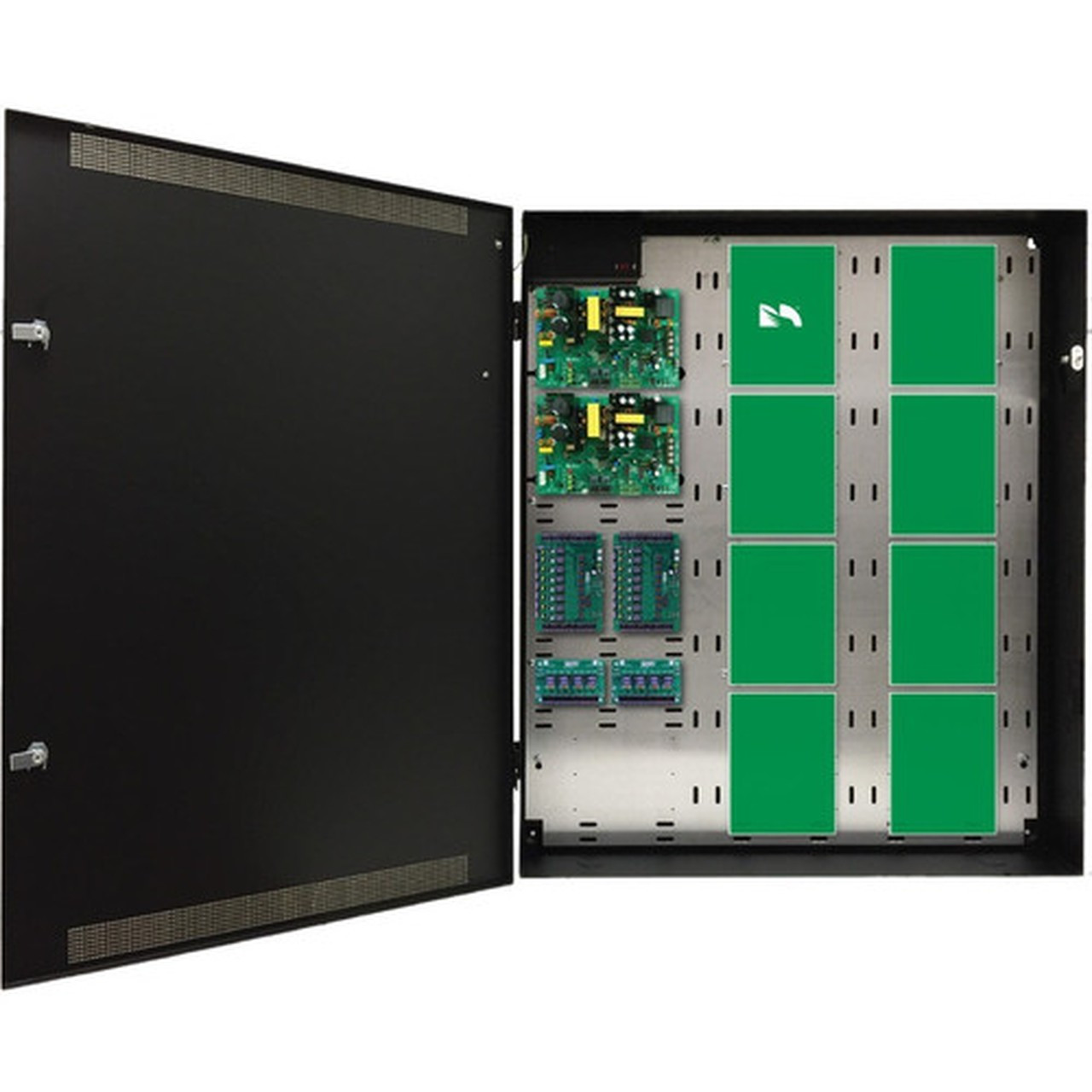

LifeSafety Power FlexPower FPO Power Supply - Enclosure - 120 V AC, 230 V AC Input - 12 V DC, 24 V DC Output - 400 W - 87% Efficiency (FPO150/250-2C82D8PE8M2)

Marketing Information: MCLASS™ Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution.

This unit is a 12V and 24V DC dual voltage access power system.

Dual C8 lock control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. Dual D8 modules provides sixteen auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.

MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Efficiency: 87%

Input Voltage: 120 V AC,230 V AC

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 20 A,24 V DC @ 10 A,12 V DC @ 12 A,24 V DC @ 6 A

Output Current: 20 A,10 A,12 A,6 A

Output Power: 400 W

Form Factor: Enclosure

Height: 36" (914.40 mm)

Width: 30" (762 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 36.29 kg

Package Contents:

• FlexPower FPO Power Supply
• Lock
• 2 x Keys
• Tamper Switch
• Mounting Hardware for Access Boards

Country of Origin: United States

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
