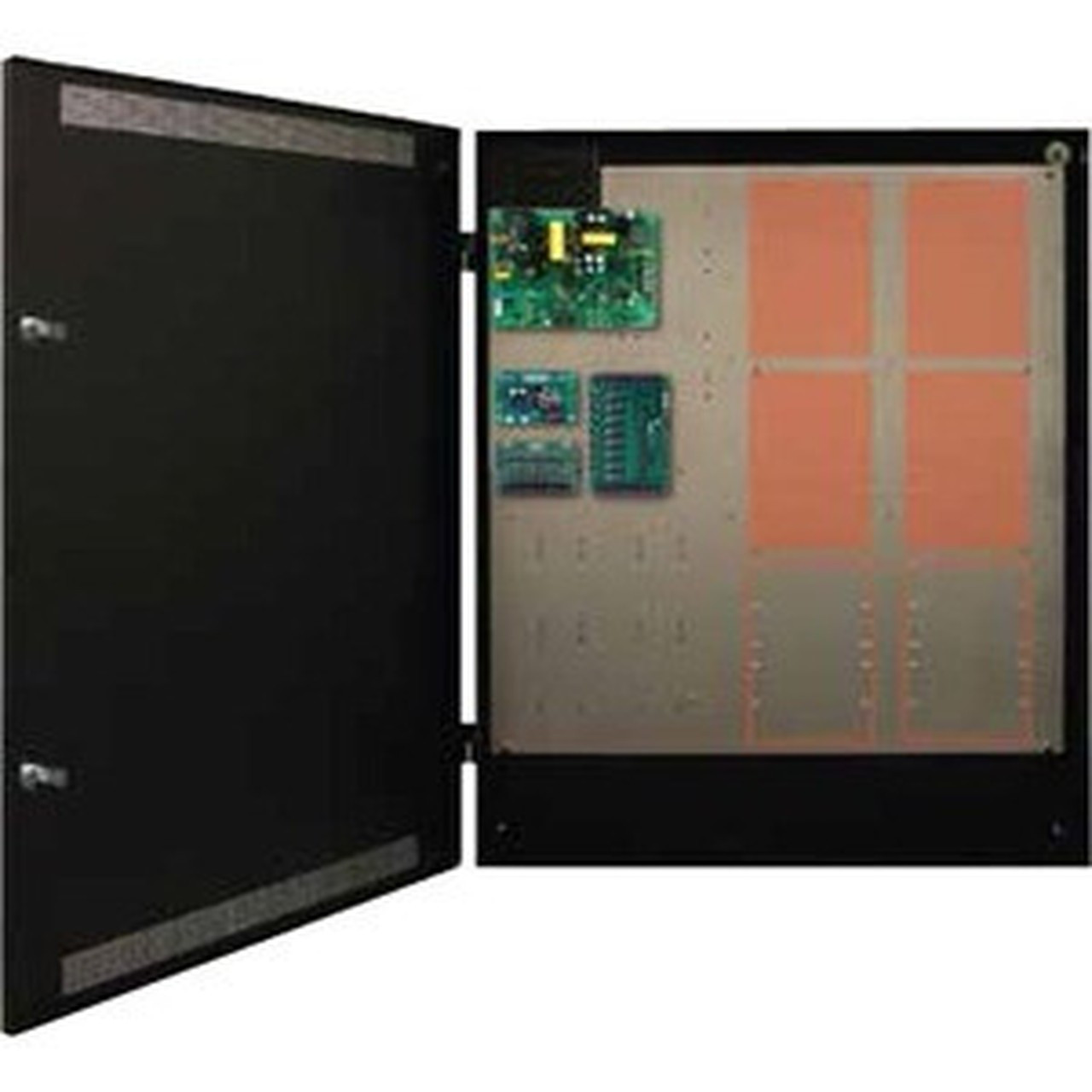

LifeSafety Power FlexPower FPO150-B100C8PD8PE8H 150W Power Supply - Enclosure - 120 V AC, 230 V AC Input - 12 V DC, 24 V DC Output - W (FPO150-B100C8PD8PE8H)

Marketing Information:

HCLASS™ Unified Power Solutions are engineered to house FlexPower® power mod-ules alongside HW Pro-Watch™ access hardware in one compact, secure system.

This unit is a 12V and 24V DC dual voltage access power system.

The C8P managed lock control module provides eight access control inputs capable of voltage or dry contact activation, and eight outputs programmable for failsafe / failse-cure operation at either 12 or 24 VDC and controlled by the integrated fire alarm inter-face circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.

HCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Efficiency: 88%

Input Voltage: 120 V AC,230 V AC

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 4 A,24 V DC @ 4 A

Output Current: 4 A

Output Power: 150 W

Form Factor: Enclosure

Height: 36" (914.40 mm)

Width: 30" (762 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 38.56 kg

Package Contents:

• FlexPower FPO150-B100C8PD8PE8H 150W Power Supply
• Lock
• 2 x Keys
• Tamper Switch
• Mounting Hardware for Access Boards

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
