LifeSafety Power FlexPower FPO75-B100C4D8PE2M 75W Power Supply - Enclosure - 120 V AC, 230 V AC Input - 12 V DC, 24 V DC Output - 75 W (FPO75-B100C4D8PE2M)

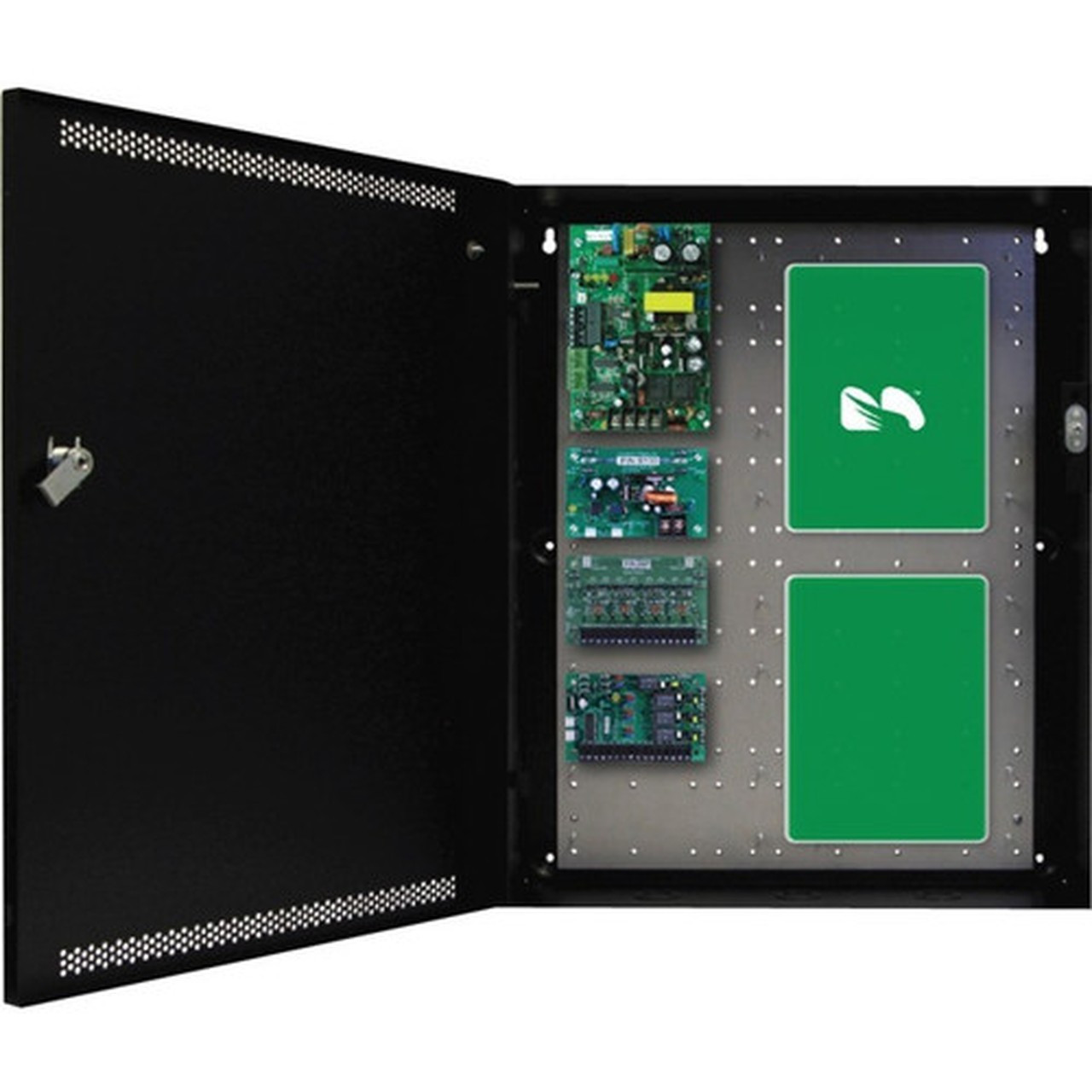

Marketing Information: MCLASS™ Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution.

This unit is a 12V and 24V DC dual voltage access power system.

The C4 lock control module provides four access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.

MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Efficiency: 83%

Modular: Yes

Input Voltage: 120 V AC,230 V AC

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 2 A,24 V DC @ 2 A

Output Current: 2 A

Output Power: 75 W

Form Factor: Enclosure

Height: 20" (508 mm)

Width: 16" (406.40 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 8.16 kg

Package Contents:

• FlexPower FPO75-B100C4D8PE2M 75W Power Supply
• Lock
• 2 x Keys
• Tamper Switch

Compatibility:

• Fire Alarm
• Intrusion
• Access Control
• CCTV
• Mass Notification

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
