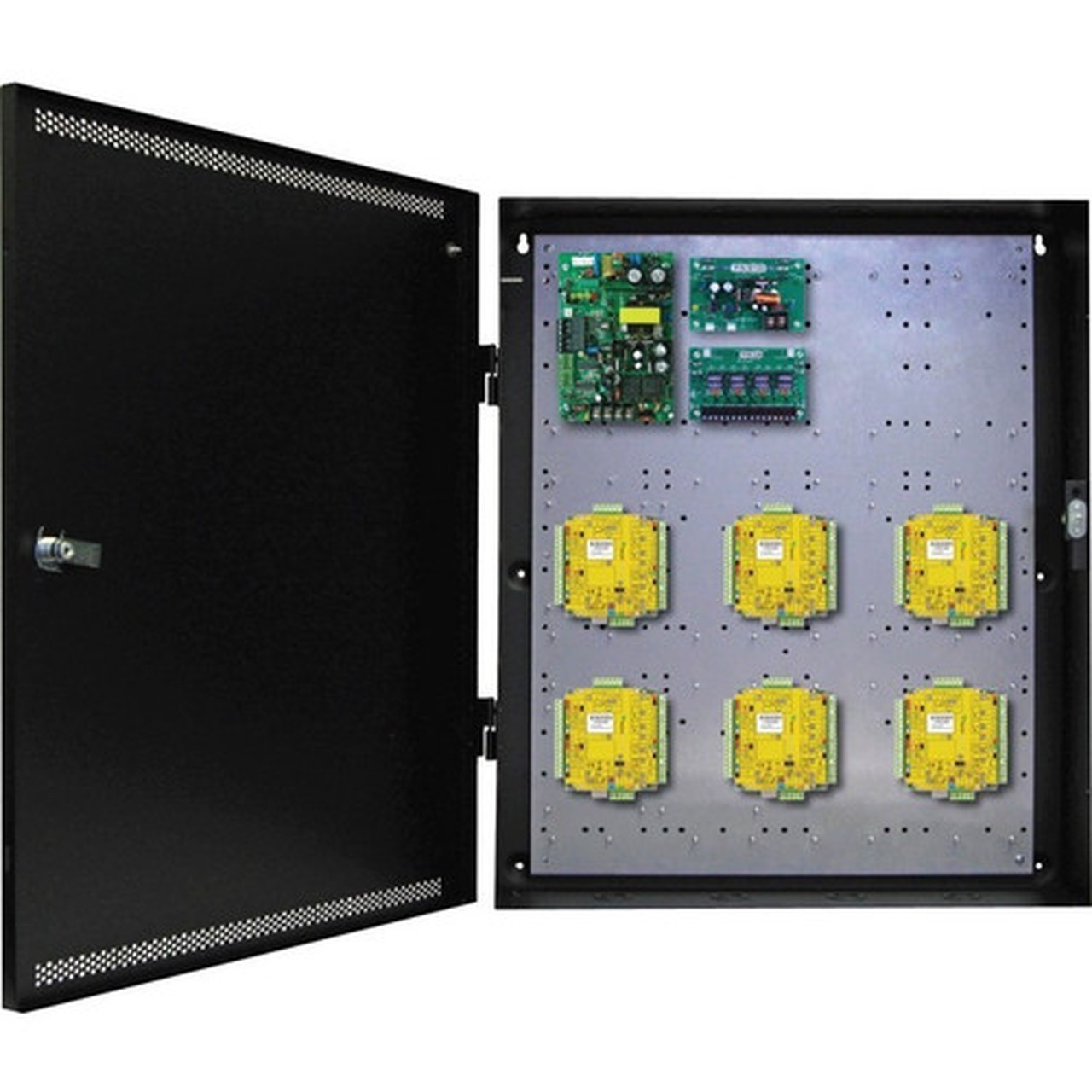

LifeSafety Power FlexPower FPO75-B100D8E4P 75W Power Supply - Enclosure - 120 V AC, 230 V AC Input - 12 V DC, 24 V DC Output - 75 W (FPO75-B100D8E4P)

Marketing Information:

PCLASS™ Unified Power Systems combine FlexPower® power modules alongside Paxton Access hardware in one compact, secure enclosure.

This unit is a 12V and 24V DC dual voltage access power system.

For access or lock power, the D8 provides eight fused outputs rated at 3A per output, each individually programmable for 12 or 24VDC.

PCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch

Input Voltage: 120 V AC,230 V AC

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 2 A,24 V DC @ 2 A

Output Current: 2 A

Output Power: 75 W

Form Factor: Enclosure

Height: 24" (609.60 mm)

Width: 20" (508 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 11.34 kg

Package Contents:

• FlexPower FPO75-B100D8E4P 75W Power Supply
• Lock
• 2 x Keys
• Tamper Switch
• Mounting Hardware for Access Boards

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
