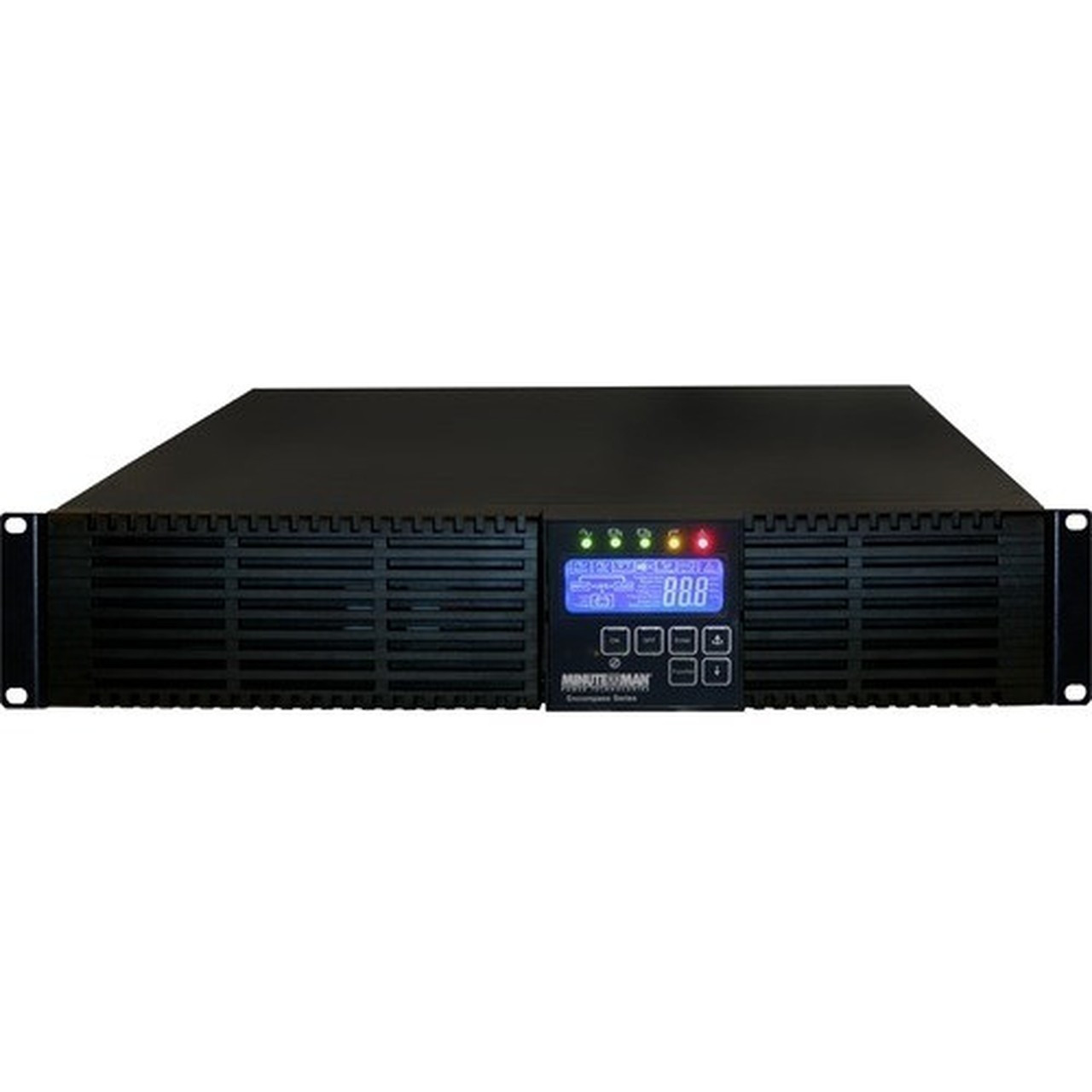

Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output (EC1500RT2U)

Marketing Information:

On-Line UPS, Comprehensive Protection

Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double conversion technology, an on-line UPS provides an impenetrable "electrical firewall," providing the most fail-safe power protection available.

Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full device management using Minuteman's SentryHD power monitoring and control software.

The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to meet the reliability expectations of even the most demanding critical applications.

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 6 x NEMA 5-15R

Dataline Protection: RJ-11

Energy Saving: Green UPS design

Application/Usage: Healthcare,Lab Equipment,Security System,Education

Load Capacity (VA): 1.50 kVA

Load Capacity (Watt): 1.35 kW

Input Voltage: 120 V AC

Input Voltage Range: 0 V AC - 160 V AC

Output Voltage: 120 V AC

Input Frequency: 60 Hz

Output Frequency: 60 Hz

Waveform Type: Sine Wave

Network Management: SNMP Manageable

Serial Port: Yes

USB: Yes

Battery Characteristics: Spill-proof, Maintenance-free

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 5 Minute

Backup/Run Time (Half Load): 15 Minute

Hot Swappable: Yes

Replaceable Battery: Yes

Maximum Operating Elevation: 9842.52 ft (3000000 mm)

Operating Humidity: 10% - 90%

Height: 3.50" (88.90 mm)

Width: 18.90" (480.06 mm)

Depth: 19.20" (487.68 mm)

Rack Height: 2U

Form Factor: Rack/Tower

Weight (Approximate): 20 kg

Package Contents:

• Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS
• Battery

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2

Limited Warranty: 3 Year
