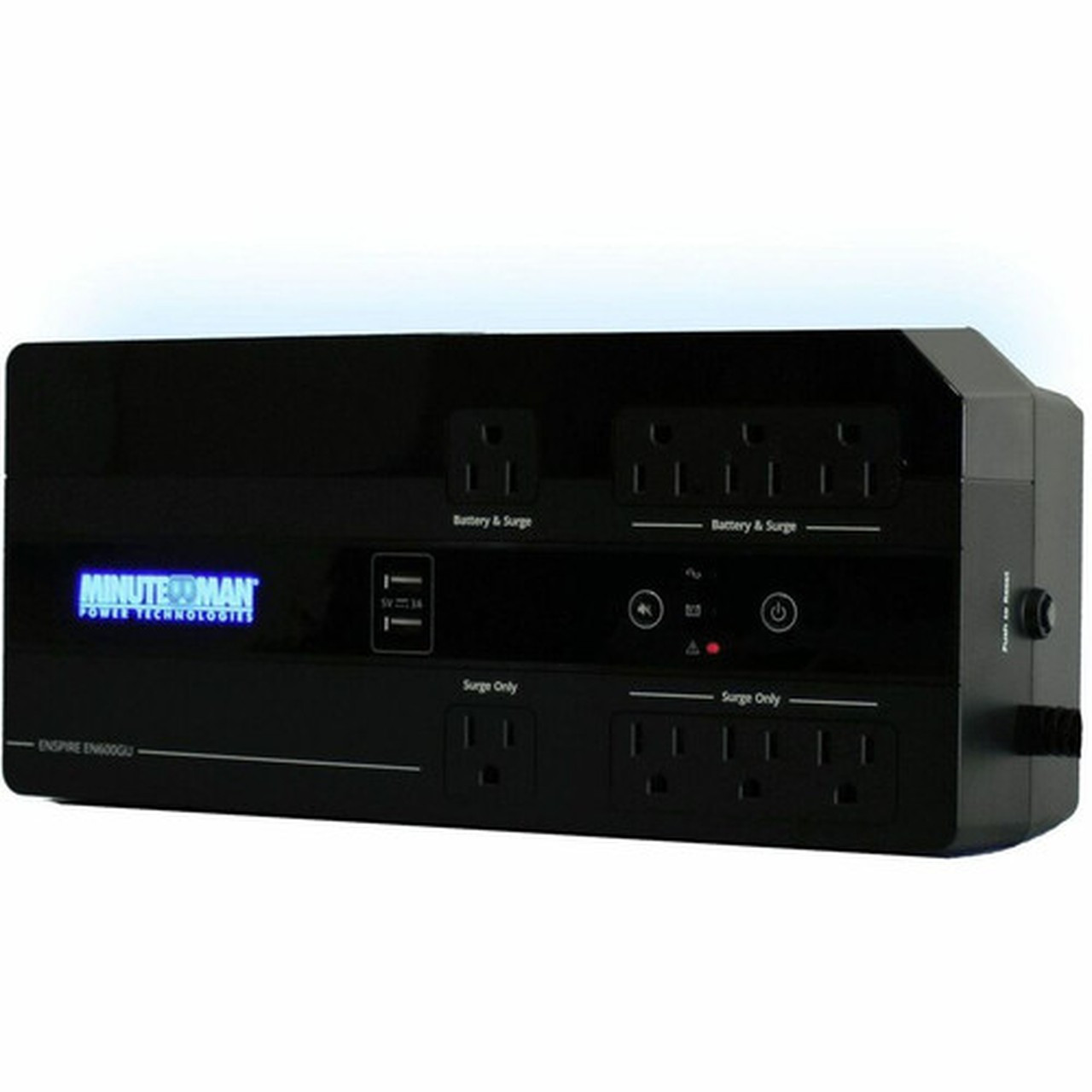

Minuteman Enspire-G EN600GU 600VA Wall/Desktop/Floor Mountable UPS - Wall/Desktop/Floor Mountable - 2 Minute Stand-by - 120 V AC Input (EN600GU)

• Compact case design
• Sleek LED lighting bar and logo display
• LCD Front Panel Display (900VA model)
• LED status indicators
• USB communications (600/750/900VA models)
• USB Charging ports (600VA and 900VA models only)
• 600VA (2) Type A
• 900VA (1) Type A and (1) Type C
• Hot-swappable battery
• Easy battery access
• Tool-less battery replacement design
• 3-year warranty (electronics) 2-year warranty (batteries)
• RoHS 2 compliant
• Energy Star 2.0 certified
• Meets Department of Energy efficiency standards
• High-efficiency Green Mode
• Transformer-friendly receptacles
• DC Startup capability
• Built-in self-diagnostics testing
• Site-wiring fault indicator
• Audio & Visual alarms
• Alarm silence button

Marketing Information:

The new Minuteman Enspire-G Series UPS offers standby protection and a compact desktop/floor/wall mount profile perfect for small-load applications.


Plug/Connector Type: NEMA 5-15P
Receptacle Type: USB Type A
Receptacle Detail: 2 x USB Type A
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 4
Application/Usage:
• Gaming Console
• Home Entertainment System
• Office
• Desktop Computer
• Workstation
• Router
• Modem
• Security System
• Notebook
• CCTV Camera
• DVR

Load Capacity (VA): 600 VA
Load Capacity (Watt): 330 W
Input Voltage: 120 V AC
Input Voltage Range: 95 V AC - 140 V AC
Output Voltage:
• 95 V AC
• 120 V AC
• 140 V AC

Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1000 J
Display: LED
Alarm: Battery
Status Indicators:

LED Status Indicators


USB: Yes
Number of USB Ports: 2
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 10 Minute
Hot Swappable: Yes
Replaceable Battery: Yes
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Operating Humidity: 95%
Maximum Operating Temperature: 104°F (40°C)
Height: 4.10" (104.14 mm)
Width: 5.70" (144.78 mm)
Length: 12.80" (325.12 mm)
Form Factor: Wall/Desktop/Floor Mountable
Weight (Approximate): 3.31 kg
Package Contents:
• Enspire-G EN600GU 600VA Wall/Desktop/Floor Mountable UPS
• Comm. Cables

Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)
• Restriction of Hazardous Substances (RoHS) 2

Limited Warranty: 3 Year
Additional Warranty Information:

2-year warranty (batteries)
