Minuteman PRO-RT PRO2000RT2U 2000VA Tower/Rack/Wall Mountable UPS - 2U Tower/Rack/Wall Mountable - 4 Minute Stand-by - 120 V AC Input (PRO2000RT2U)

Marketing Information:

Perfect Protection For Rack-Mount Systems

The PRO-RT Series is a value-priced, yet feature-rich UPS incorporating line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. The PRO-RT Series can be used to support servers, telecom or VoIP systems, security systems, plus many other applications.

The PRO-RT UPSs include many useful features such as load-shedding with two load banks, independent battery bypass, plus auto-re-start when power is restored after an extended power outage.

Versatile Communications

Each PRO-RT model is compatible with Minuteman's free downloadable SentryHD™ power management and diagnostic software. When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browser-based interface. The SentryHD software communicates via a built-in USB port on the UPS. In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card.

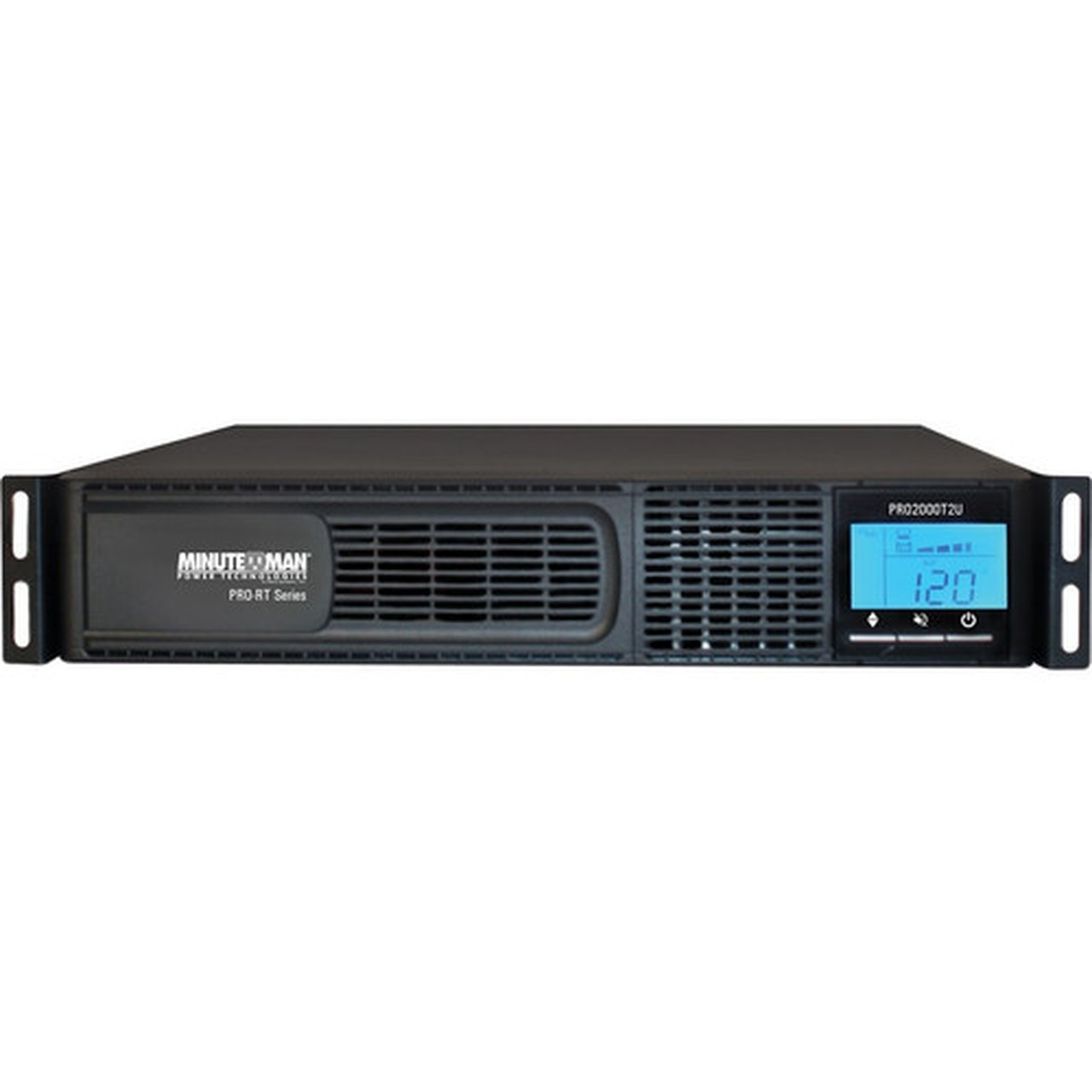

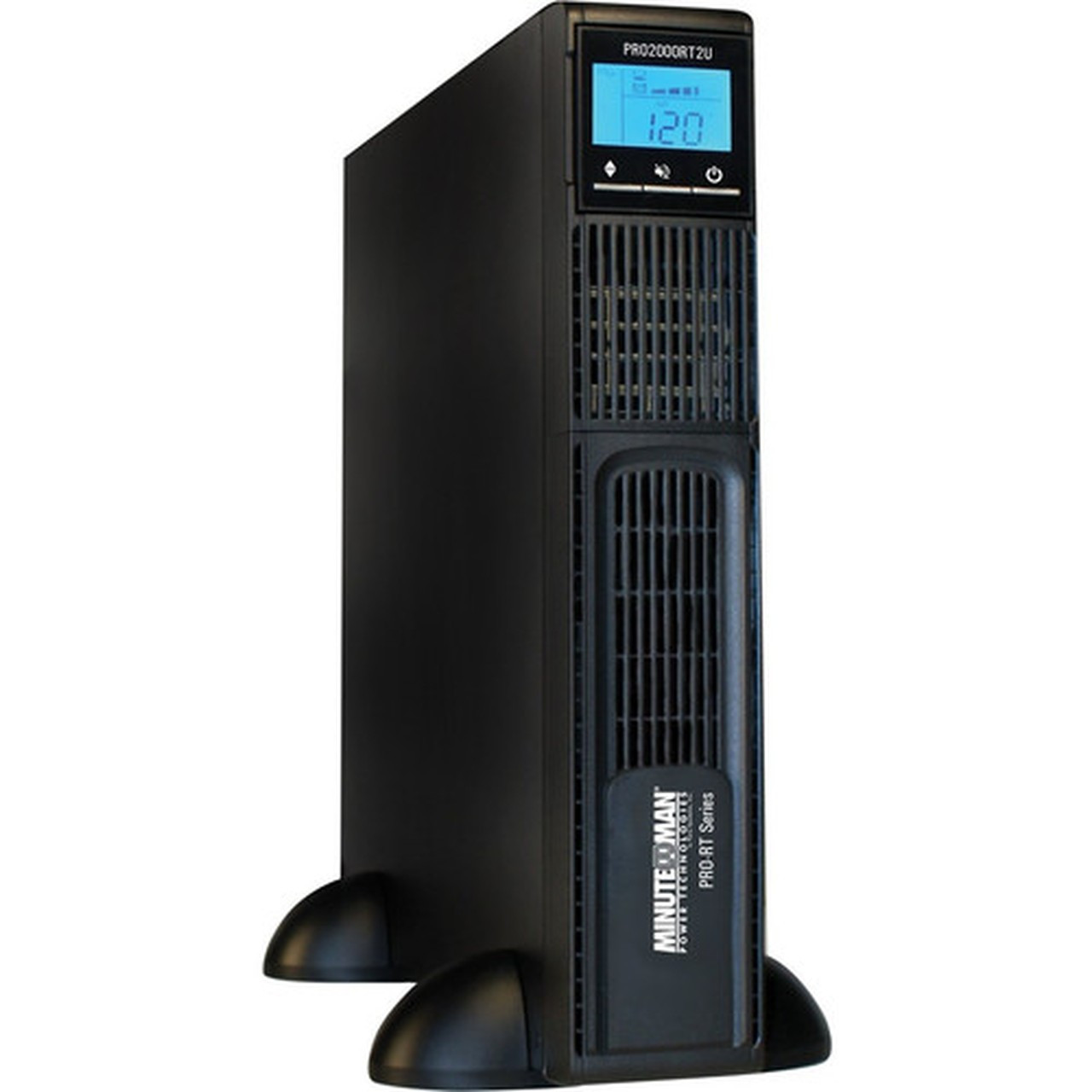

Designed for versatility, the PRO-RT models can be mounted in a standard rack using the attached rackmount ears. All units can also be installed as a tower using the included feet. An optional kit is available for mounting the unit to a wall.

High-end Features - Budget Friendly Price

The PRO-RT offers many features normally found on higher priced models, including an LCD status display which shows the following:

• Input / Output voltage and frequency
  Monitor the status of your utility power
• UPS and battery mode / status
  Eliminate guesswork with straightforward display of the unit's status
• Load capacity
  Load indicator shows how much electrical load is being placed on the unit
• Estimated runtime based on connected load
  Find out how much backup time remains during a blackout right on the unit

Ideally Suited to Protect:

• Network Equipment
• Servers
• Workstations
• VoIP Communications
• IP and Analog Video Equipment

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15/20R,NEMA L5-20R

Receptacle Detail: 6 x NEMA 5-15/20R,1 x NEMA L5-20R

Transfer Time: 10 ms

Application/Usage: Network Equipment,Server,Telephone System,Workstation,VoIP Phone System,Video Equipment

Load Capacity (VA): 2 kVA

Load Capacity (Watt): 1.40 kW

Input Voltage: 120 V AC

Input Voltage Range: 90 V AC - 150 V AC

Output Voltage: 120 V AC

Waveform Type: Simulated Sine Wave

Network (RJ-45): Yes

Backup/Run Time (Full Load): 4 Minute

Hot Swappable: Yes

Height: 3.40" (86.36 mm)

Width: 18.90" (480.06 mm)

Depth: 20.10" (510.54 mm)

Rack Height: 2U

Form Factor: Tower/Rack/Wall Mountable

Weight (Approximate): 28.49 kg

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2

Limited Warranty: 3 Year
