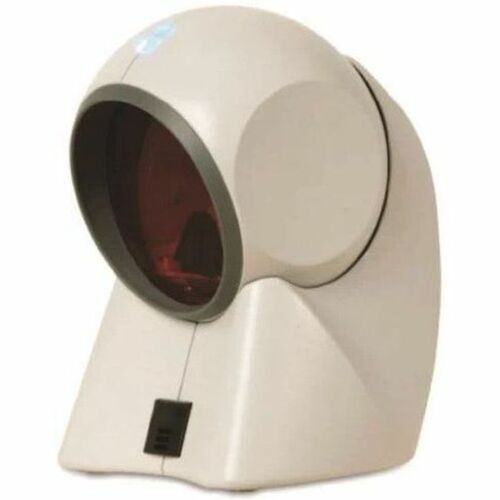

Honeywell Orbit 7120 Omnidirectional Laser Barcode Scanner Cable Single Mode 248.92 Mm Scan Distance Omni-directional Connectivity MK7120-71A38-N
Write a Review
Honeywell
Honeywell Orbit 7120 Omnidirectional Laser Barcode Scanner Cable Single Mode 248.92 Mm Scan Distance Omni-directional Connectivity MK7120-71A38-N
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Reads standard 1D
- GS1 DataBar symbologies
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
Light Source: Laser
Scan Pattern: Omni-directional,Single Line
Scanning Distance: 9.80" (248.92 mm)
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Maximum Ambient Light: 4842 lux
Drop Specification:
Designed to withstand 1.2 m (4´) drops
Minimum Print Contrast: 35%
Host Interface: USB
Maximum Operating Power Consumption: 900 mW
Input Current: 180 mA
Standby Current: 170 mA
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing): 5% to 95%
Color Family: Gray
Product Color: Light Gray
Height: 5.91" (150 mm)
Width: 4.02" (102 mm)
Length: 4.13" (105 mm)
Weight (Approximate): 14.11 oz (400 g)
Application/Usage: Retail
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- 20 Scan Line Omnidirectional Pattern: Provides aggressive scanning as an additional benefit to hand presentation applications
- Sweet Spot Scanning: Engineered "sweet spot" to optimize scan performance and first pass read rate
- Adjustable Scan Head: Ability to tilt scanner 30° for targeted scanning or larger products
- Flash ROM: Protects POS investment with free firmware updates via MetroSet®2 software and standard PC
- Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass
- Built-in RF EAS Antenna (Orbit 7180 only): Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | MK712071A38N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Orbit 7120 |
| Product Name | Orbit 7120 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported |
|
| Light Source | Laser |
| Scan Pattern | Omni-directional,Single Line |
| Scanning Distance | 9.80" (248.92 mm) |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Maximum Ambient Light | 4842 lux |
| Drop Specification | Designed to withstand 1.2 m (4´) drops |
| Minimum Print Contrast | 35% |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Maximum Operating Power Consumption | 900 mW |
| Input Current | 180 mA |
| Standby Current | 170 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Light Gray |
| Height | 5.91" (150 mm) |
| Width | 4.02" (102 mm) |
| Length | 4.13" (105 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Application/Usage | Retail |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
