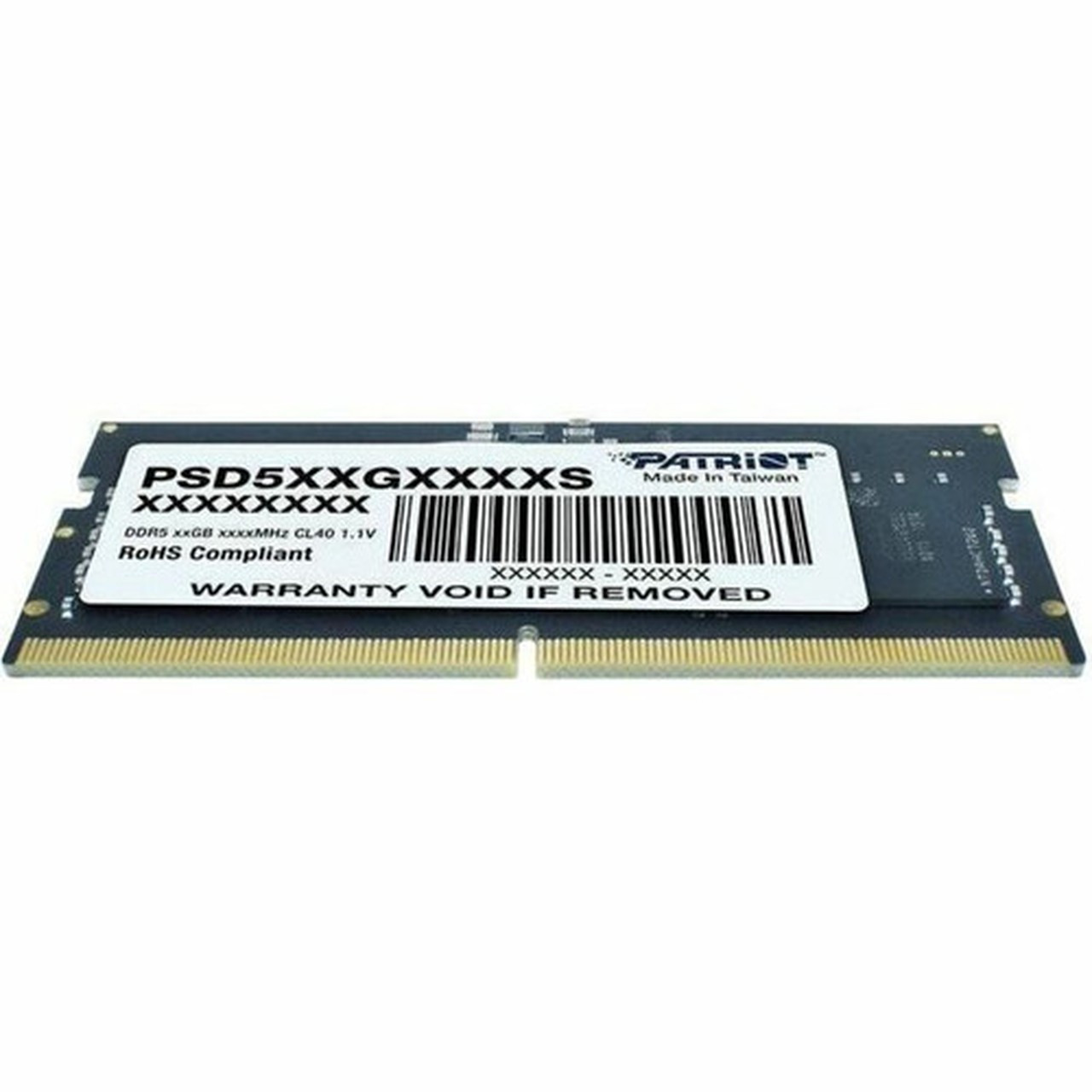

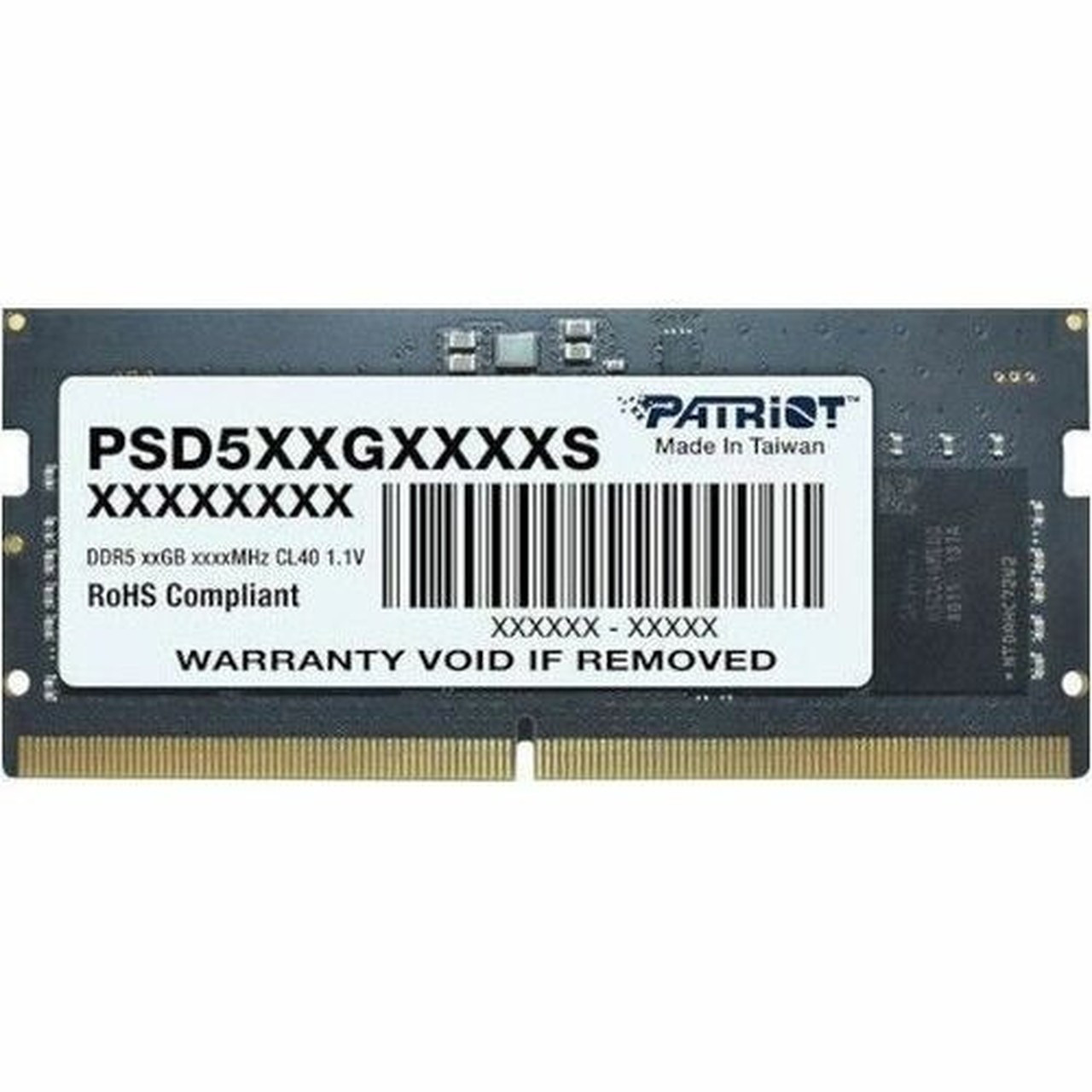

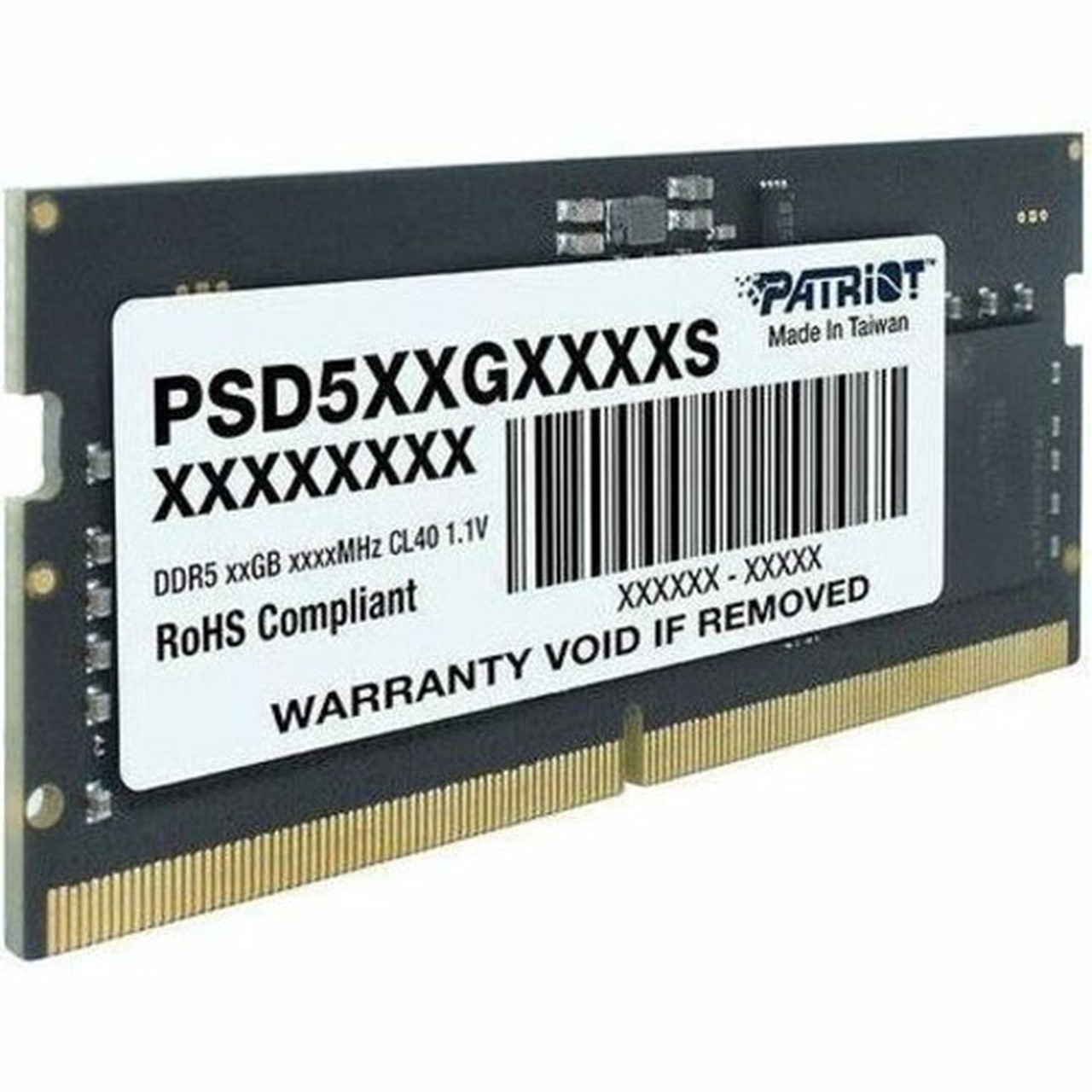

Patriot Memory Signature Line 16GB DDR5 SDRAM Memory Module - For Notebook - 16 GB (1 x 16GB) - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 (PSD516G560081S)

Marketing Information:

Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.

With limited lifetime warranty, Patriot's Signature Line DDR5 RAM is the breakthrough choice for avid system integrators and those looking to expand their system's memory performance. The Signature Line DDR5 memory modules offer a wide range of capacities and configurations, allowing users to get the most from the latest Intel platforms for the best compatibility.

Memory Size: 16 GB

Memory Technology: DDR5 SDRAM

Memory Voltage: 1.10 V

Number of Modules: 1 x 16GB

Memory Speed: 5600 MHz

Memory Standard: DDR5-5600/PC5-44800

Memory Rank: Dual-rank

Signal Processing: Unbuffered

CAS Latency: CL46

Device Supported: Notebook

Number of Pins: 262-pin

Form Factor: SoDIMM

Thickness: 0.12" (3.05 mm)

Width: 1.20" (30.48 mm)

Length: 2.70" (68.58 mm)

Weight (Approximate): 9.1 g
