Marketing Information: The Net2 nano and PaxLock range of access control units uses Paxton Access' Net2Air wireless technology to communicate with the Net2 software.
The Net2Air bridge provides the wireless communication link between the PC running Net2 software and Net2 nano or PaxLock control units. Multiple bridges can be placed around a site and linked back to the PC via LAN/WAN. Net2 nano and PaxLock control units can, therefore, be installed at a greater distance away from the PC running Net2 software.
Device Supported: Access Control SystemFeatures: Height: 6.40" (162.56 mm)Width: 6.40" (162.56 mm)Depth: 1.30" (33.02 mm)Weight (Approximate): 226 gPackage Contents: - Net2Air Bridge
- Fasteners - 6-32 x 1 Pan Head Cross Recess US Socket Screw, SS
- Wireless Connector/Air Bridge - Fitting Kit
- MKIII Bridge - US Fitting Kit
- Wireless Connector/Air Bridge - Packaging - Box Insert
- MKIII Air Bridge - Packaging - Outer Box
- Label - Product Serial Number Label 27x10mm
- Label - Void If Seal Is Broken, 80x30mm
- Sales Code Label, 40x25mm, ULc ITE, FCC IC ID, CE
- MKIII Air Bridge - Assembly EU
Additional Information: Installation - The unit plugs into the LAN/WAN by means of a standard RJ45 network port. The Net2Air bridge driver software is loaded from the Net2 software. Once the Net2Air bridge has been detected by the PC, run the Net2 server configuration program to register the bridge with the server program. The Net2 software will include the bridge in its list of ports to be monitored. Wireless communication can be established through Net2 software to products using Net2Air technology like Net2 nano or PaxLock. We recommend a maximum of 10 wireless control units per bridge.
Operation - Once plugged in, the Net2Air bridge provides the communication between the Net2 nano or PaxLock control units and the PC.
Application/Usage: Access ControlCompatibility: Paxton Access Control Units:
Certifications & Standards: - UL 60950-1
- PoE Compliant IEEE 802.3 af/at
Country of Origin: United KingdomLimited Warranty: 5 Year
[custom-specifications]
SpecificationsManufacturer: Paxton Access Ltd.
Manufacturer Part Number: 477-600-US
Manufacturer Website Address: http://www.paxton.co.uk
Brand Name: Paxton Access
Product Line: Net2

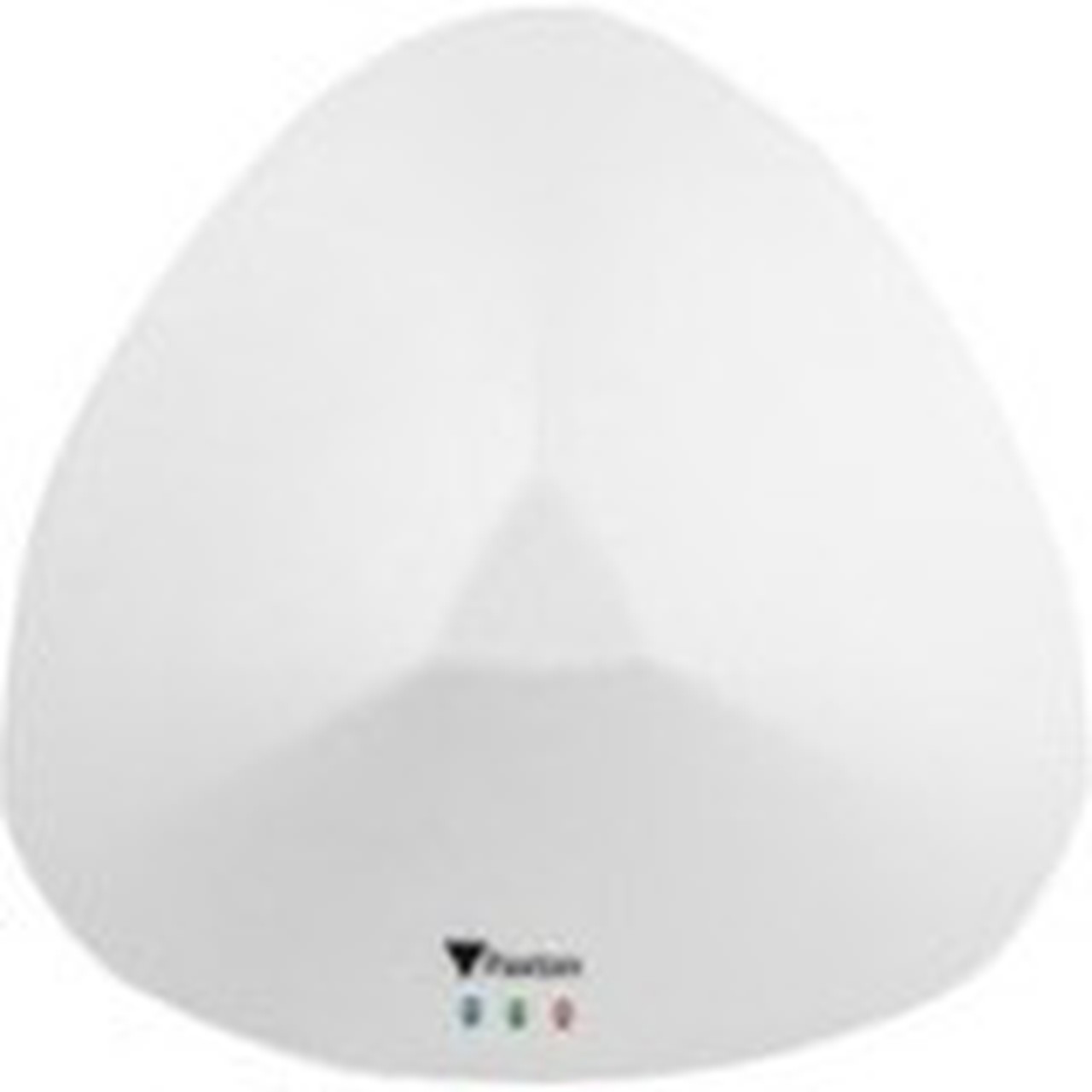

Product Name: Net2Air bridge
Product Type: Net2Air Bridge
Technical InformationDevice Supported: Access Control System
Features:
Physical CharacteristicsHeight: 6.40" (162.56 mm)
Width: 6.40" (162.56 mm)
Depth: 1.30" (33.02 mm)
Weight (Approximate): 226 g
MiscellaneousPackage Contents:
- Net2Air Bridge
- Fasteners - 6-32 x 1 Pan Head Cross Recess US Socket Screw, SS
- Wireless Connector/Air Bridge - Fitting Kit
- MKIII Bridge - US Fitting Kit
- Wireless Connector/Air Bridge - Packaging - Box Insert
- MKIII Air Bridge - Packaging - Outer Box
- Label - Product Serial Number Label 27x10mm
- Label - Void If Seal Is Broken, 80x30mm
- Sales Code Label, 40x25mm, ULc ITE, FCC IC ID, CE
- MKIII Air Bridge - Assembly EU
Additional Information:
Installation - The unit plugs into the LAN/WAN by means of a standard RJ45 network port. The Net2Air bridge driver software is loaded from the Net2 software. Once the Net2Air bridge has been detected by the PC, run the Net2 server configuration program to register the bridge with the server program. The Net2 software will include the bridge in its list of ports to be monitored. Wireless communication can be established through Net2 software to products using Net2Air technology like Net2 nano or PaxLock. We recommend a maximum of 10 wireless control units per bridge.
Operation - Once plugged in, the Net2Air bridge provides the communication between the Net2 nano or PaxLock control units and the PC.
Application/Usage: Access Control
Compatibility:
Paxton Access Control Units:
Certifications & Standards:
- UL 60950-1
- PoE Compliant IEEE 802.3 af/at
Country of Origin: United Kingdom
WarrantyLimited Warranty: 5 Year
