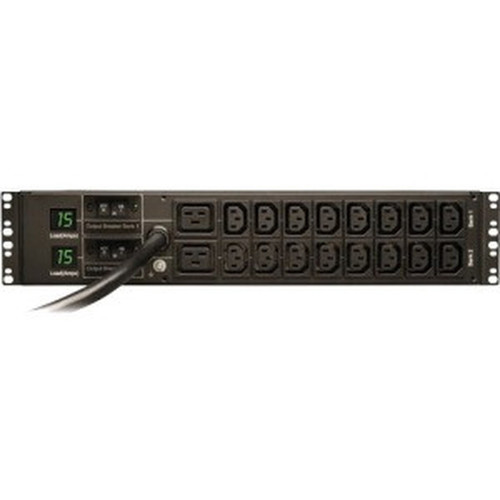

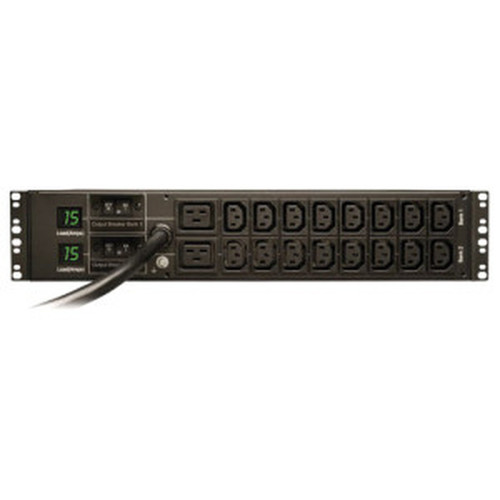

Tripp Lite Metered 18 Outlet Horizontal Rack Mount PDU With Dual And Multiple Connections IEC TAA AC V X PDUMH30HV
Write a Review
Tripp Lite by Eaton
Tripp Lite Metered 18 Outlet Horizontal Rack Mount PDU With Dual And Multiple Connections IEC TAA AC V X PDUMH30HV
-
Professional Pricing
B2B volume discount
-
IT Pro & Consultants
Real-world IT expertise
-
Configuration Service
Available on request
-
In-Stock in Canada
Toronto - AB - BC - QC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

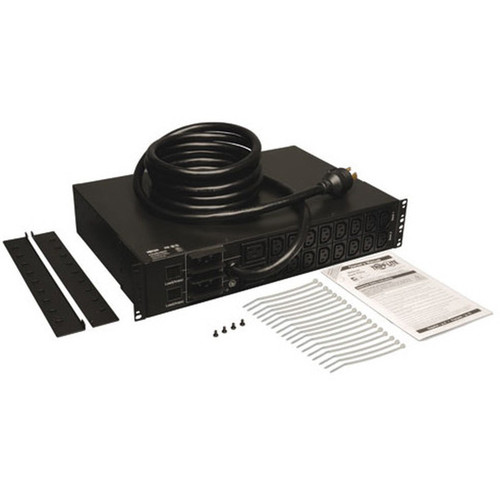

- Metered PDUMH30HV 18-Outlets PDU
- Mounting Brackets
- Plug Retention Plates
- User Manual
Plug/Connector Type: NEMA L6-30P
Receptacle Type: IEC 60320 C19,IEC 60320 C13
Receptacle Detail: 2 x IEC 60320 C19,16 x IEC 60320 C13
Protection Type: Overload Protection
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage: 208 V AC,240 V AC
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 2U
Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 12.50" (317.50 mm)
Weight (Approximate): 13.70 lb (6214.22 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Metered single phase 30A 208/240V 2U horizontal rackmount PDU
- Two built-in meters report output current in amps for each load bank

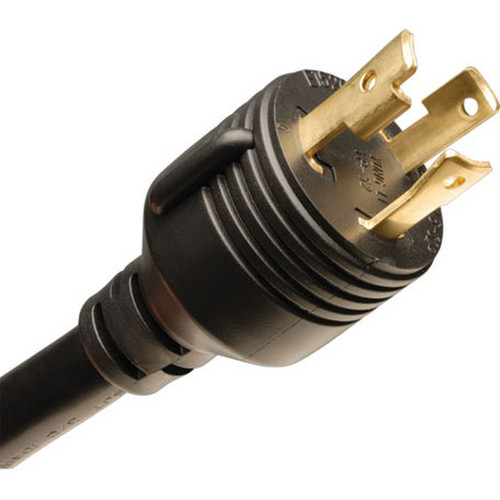

- Attached 12ft / 3.6m cord with NEMA L6-30P input plug
- 18 total outlets (16 C13, 2 C19)
- Reversible housing, 2U 208/240V rackmount metered PDU
- TAA Compliant
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH30HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDUMH30HV |
| Product Name | Metered PDUMH30HV 18-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,16 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Weight (Approximate) | 13.70 lb (6214.22 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite 10ft Power Cord Cable 5-15P to C19 Heavy Duty 15A 14AWG 10' - 125V AC3.05m |
| SKU | P034010 |
| Sale Price | $29.17 |
| Product | Tripp Lite series E2MTDO EnviroSense2 Environmental Sensor Module - TAA Compliant |
| SKU | E2MTDO |
| Sale Price | $187.68 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
Additional-pdf5
Additional-pdf6
Additional-pdf7
[/custom-user-manual]
Warranty Information
2 Year| Qty | Price | Available |
|---|
