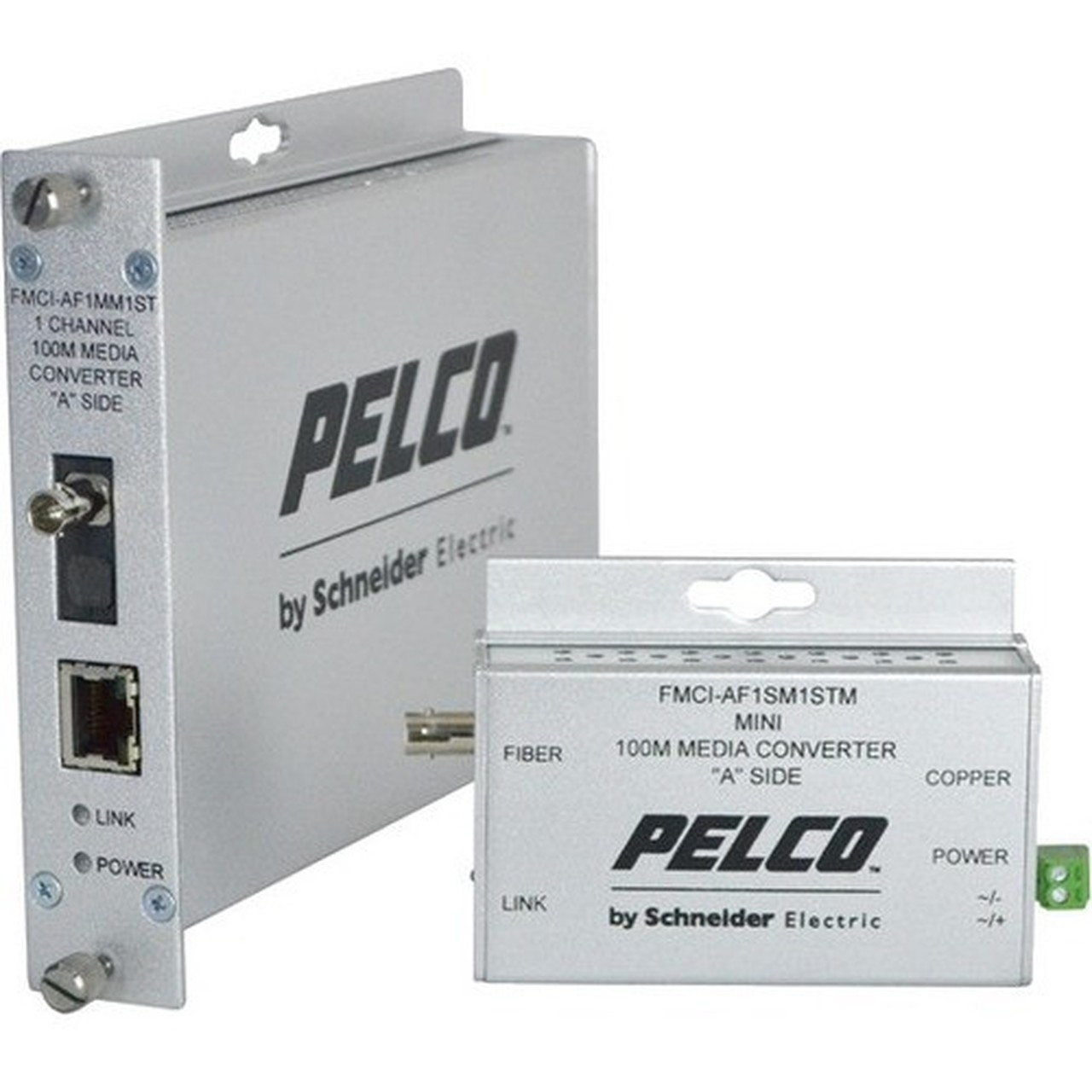

Pelco FMCI Series Ethernet Optical Fiber Media Converters - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - Fast - - (FMCI-BF1MM1STM)

Marketing Information:

FMCI Series Ethernet media converters are designed to transmit and receive 10/100 Mbps data over multimode or single-mode optical fiber. The electrical interface will autonegotiate to a 10 Mbps or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate.

FMCI Series media converters are environmentally hardened to operate in extreme temperatures. LED indicators are provided for rapidly ascertaining equipment operating status and monitoring critical operating parameters.

Standard size FMCI Series units can be either surface- or rack-mounted; mini units are surface-mount only. Either type can be DIN-rail mounted by the addition of an adapter plate.

Total Number of Ports: 2

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Number of ST Ports: 1

ST Port Type: Duplex

Media Type Supported: Optical Fiber,Twisted Pair

Fiber Mode Supported: Multi-mode

Fiber Optic Wavelength: 1310 nm,1550 nm

Maximum Distance Supported: 1.9 Mile

Fiber Optic Cable Standard: 62.5/125 µm

Ethernet Technology: Fast Ethernet

Network Technology: 10Base-T,100Base-TX,100Base-FX

Power Source: DC

Form Factor: Surface-mountable

Height: 1.10" (27.94 mm)

Width: 2.50" (63.50 mm)

Depth: 3.30" (83.82 mm)

Weight (Approximate): 450 g

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: United States

Limited Warranty: 3 Year
